Quick Details
-
Place of Origin:
-
Fujian
-
Brand Name:
-
HECERE
-
Model Number:
-
H9 11040
-
Material:
-
PET
-
Size:
-
110x40mm
-
Chip:
-
Impinj Monza 4QT
-
Protocol:
-
EPC Class1 Gen2 & ISO 18000-6C
-
Memory:
-
128 bits
-
Tag form factor:
-
Label sticker
-
Read distance:
-
Up to 15m
-
Printing:
-
Custom Logo Printing is available
-
Working mode:
-
Passive, contactless
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Communication Interface:
-
RFID
-
Frequency:
-
860-960mhz
-
Place of Origin:
-
Fujian
-
Brand Name:
-
HECERE
-
Model Number:
-
H9 11040
-
Material:
-
PET
-
Size:
-
110x40mm
-
Chip:
-
Impinj Monza 4QT
-
Protocol:
-
EPC Class1 Gen2 & ISO 18000-6C
-
Memory:
-
128 bits
-
Tag form factor:
-
Label sticker
-
Read distance:
-
Up to 15m
-
Printing:
-
Custom Logo Printing is available
-
Working mode:
-
Passive, contactless
Specification
|
Material
|
PET
|
|
Size
|
110x40mm or customized
|
|
Frequency
|
860-960mhz
|
|
Chip
|
IMPINJ Monza 4QT
|
|
Protocol
|
EPC Class1 Gen2 & ISO 18000-6C
|
|
Memory
|
EPC 128 bits, User 512 bits
|
|
Tag form factor
|
Label sticker
|
|
Applicable Surface Materials
|
Plastic, cardboard, glass
|
|
Attachment Method
|
Peel-and-stick
|
|
Operating temperature
|
-40°C ~ 85°C
|
|
Read distance
|
Up to 15m
|
|
Printing
|
Custom logo printing is available
|
|
Working mode
|
Passive, contactless
|

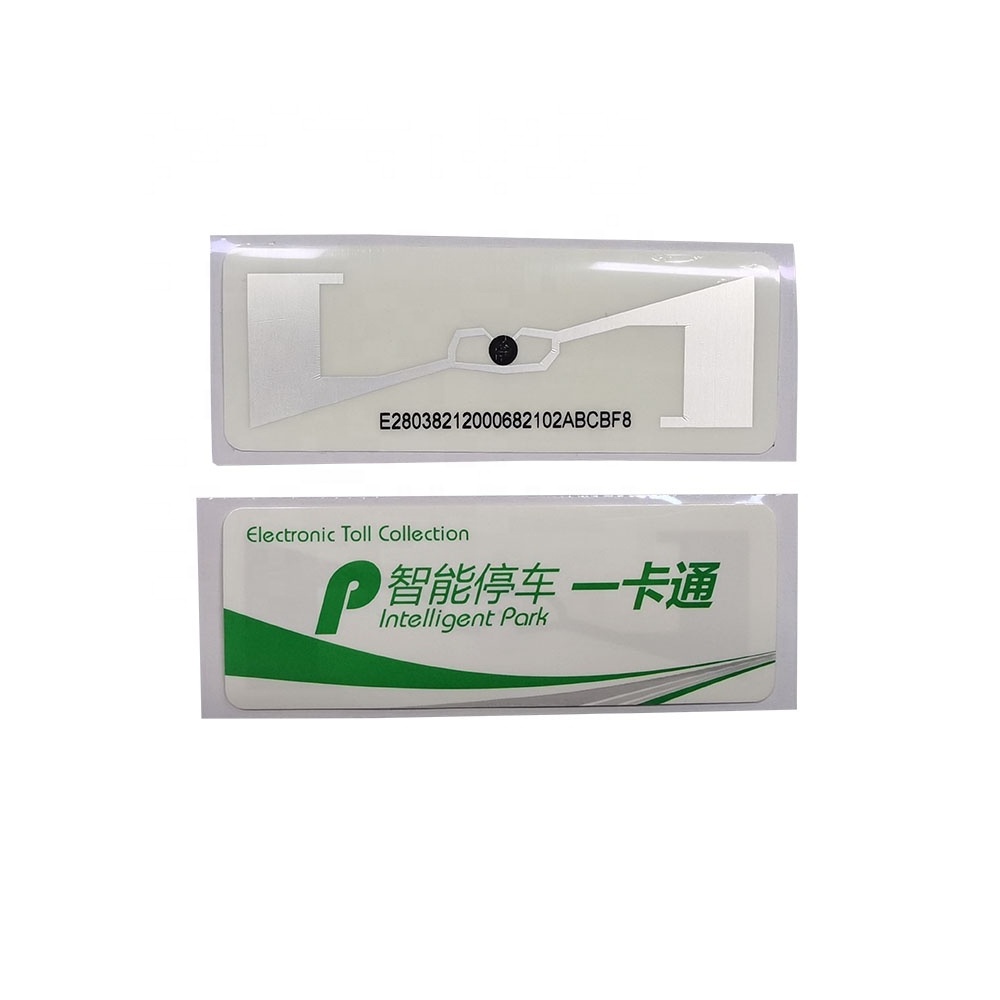

Product Description
Features:
* Autotune feature, which helps to work at peak efficiency, even in rapidly changing environments.
* Offers unique TID and enables pre-serialized EPC.
* Encased between thin layers of polyester, the specialized inlay doesn’t require a standoff to read either through or on a glass windshield. A tamper-evident option with strategically placed slits in the label and adhesive layers is also available at no additional cost.
* Specialty RFID labels take advantage of sub-surface printing wherein the printed media has a protective covering. In order to remove the copy from a label, one would have to destroy the label itself.
* The peel-and-stick tag provides ease of installation on an interior windshield.
* Memory: EPC 128 bits
* Autotune feature, which helps to work at peak efficiency, even in rapidly changing environments.
* Offers unique TID and enables pre-serialized EPC.
Advantage:
*
The inlay utilizes passive technology and is encapsulated between thin layers of polypropylene adding human readable printing to one side and a windshield-compatible adhesive to the other.
* Encased between thin layers of polyester, the specialized inlay doesn’t require a standoff to read either through or on a glass windshield. A tamper-evident option with strategically placed slits in the label and adhesive layers is also available at no additional cost.
* Specialty RFID labels take advantage of sub-surface printing wherein the printed media has a protective covering. In order to remove the copy from a label, one would have to destroy the label itself.
* The peel-and-stick tag provides ease of installation on an interior windshield.
