Quick Details
-
Brand Name:
-
CSC
-
Marketing Type:
-
New Product 2022
-
Dimension(L*W*H):
-
13016x3236x3826mm
-
Capacity:
-
100000L
-
Weight:
-
50000
-
Inner Material:
-
Carbon Steel Q345R
-
Outer Material:
-
Carbon Steel Q345R
-
Design Pressure(MPa):
-
1.77
-
Design Standard:
-
GB150
-
Working Temperature(℃):
-
-20 - 50 ℃
-
Level Gauge:
-
Rotor Gauge, Magnetic Gauge, Rochester Gauge
-
Filling Device:
-
LPG Filling Scale or LPG Dispenser
-
Safety Accessories:
-
Ball Valve, Level Gauge,Manhole,Pressure Gauge,Thermometer
-
Test Pressure:
-
1.77Mpa
-
Filling Density:
-
0.55-0.58 ton/m3
-
Medium:
-
LPG,Propane,Butane
-
Corrosion allowance:
-
1mm
-
Tanker Material:
-
Q345R, Q370R, Q420R, SA516
-
Certification:
-
GB150,, ASME,.
-
Application:
-
LPG Cylinder Refilling
Quick Details
-
Volume (m³):
-
100
-
Max Working Pressure(MPa):
-
1.77
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CSC
-
Marketing Type:
-
New Product 2022
-
Dimension(L*W*H):
-
13016x3236x3826mm
-
Capacity:
-
100000L
-
Weight:
-
50000
-
Inner Material:
-
Carbon Steel Q345R
-
Outer Material:
-
Carbon Steel Q345R
-
Design Pressure(MPa):
-
1.77
-
Design Standard:
-
GB150
-
Working Temperature(℃):
-
-20 - 50 ℃
-
Level Gauge:
-
Rotor Gauge, Magnetic Gauge, Rochester Gauge
-
Filling Device:
-
LPG Filling Scale or LPG Dispenser
-
Safety Accessories:
-
Ball Valve, Level Gauge,Manhole,Pressure Gauge,Thermometer
-
Test Pressure:
-
1.77Mpa
-
Filling Density:
-
0.55-0.58 ton/m3
-
Medium:
-
LPG,Propane,Butane
-
Corrosion allowance:
-
1mm
-
Tanker Material:
-
Q345R, Q370R, Q420R, SA516
-
Certification:
-
GB150,, ASME,.
-
Application:
-
LPG Cylinder Refilling
Product Description
1)lpg storage tank capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l. OR 2.5tons, 5tons, 10tons, 15tons, 20tons, 25tons, 30tons, 35tons, 40tons, 45tons, 50tons, 55tons, 60tons.
2) lpg storage tank material Q345R Q370R SA516
3) lpg storage tank production flow cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l. OR 2.5tons, 5tons, 10tons, 15tons, 20tons, 25tons, 30tons, 35tons, 40tons, 45tons, 50tons, 55tons, 60tons.
2) lpg storage tank material Q345R Q370R SA516
3) lpg storage tank production flow cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Details Images
Specification
|

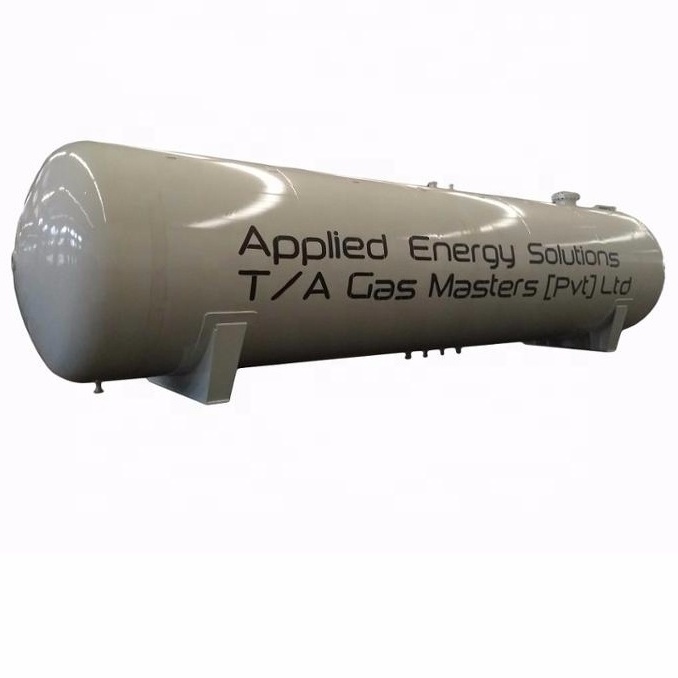

Parameter of 100cbm LPG Storage Tank
|
|
|
|
Volume of the tank
|
100cbm
|
|
|
Tank Material
|
Carbon Steel Q345R
|
|
|
Overall Size
|
13016x3236x3826mm
|
|
|
Tank Diameter
|
3200mm
|
|
|
Design Pressure
|
1.77Mpa
|
|
|
Hydraulic Test Pressure
|
2.10Mpa
|
|
|
Design Temperature
|
-20℃~50℃
|
|
|
Vapor Outlet
|
DN50
|
|
|
Thickness of Shell
|
18mm
|
|
|
Thickness of End plate
|
18mm
|
|
|
Tank Net Weight
|
21800kg
|
|
|
Loading Capacity
|
50000kg
|
|
|
Corrosion Allowance
|
1mm
|
|
|
Manhole
|
DN450mm
|
|
|
Drain outlet
|
DN50mm
|
|
|
Heat Treatment
|
Bulk
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
