Quick Details
-
Model Number:
-
APP fan lamp ceiling
-
Model:
-
220V
-
Encoding Type:
-
Fan Lamp Controller
-
Controlable lines:
-
2 way (1 way fan ,1 way lamp)
-
Frequency:
-
50-60Hz
-
Rated voltage:
-
220V
-
Optional voltage::
-
110V
-
Load power:
-
fan power 300W
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sharphy
-
Model Number:
-
APP fan lamp ceiling
-
Model:
-
220V
-
Encoding Type:
-
Fan Lamp Controller
-
Controlable lines:
-
2 way (1 way fan ,1 way lamp)
-
Frequency:
-
50-60Hz
-
Rated voltage:
-
220V
-
Optional voltage::
-
110V
-
Load power:
-
fan power 300W
Product specifications
170V-220V (for short, 220V is applicable to Europe, Russia and other regions)
2 kinds of specifications, the specifications required by the order note, the default is 220 v
90-175V (110V for short, applicable to the United States, Canada, Japan and other regions)
Specification:
Operating Voltage: AC 90-220V
Working Frequency: 50-60Hz.
Remote Control Distance: More than 20 meters.
Support Encoding: 1527 learning code.
Operating Mode:1527 remote control.
Loading Power:
Ceiling Fan: Max.300W.
Incandescent Lamp: Max.1000W.
LED /Energy saving lamp: Max. 200W.
LED light / energy saving lamp: Max 200W.
Please don't over loading!
Battery: 2 AAA battery needed (Not Include).
Cautions:
(a)When the new device can’t be remote controlled, Please check to see whether the bar codes in emitter and receiver are consistent, whether the indicator light on the emitter is working, whether the cable of receiver is connected properly and whether the buzzer beeps once when Power is on.
(b)When the receiver can't be controller by emitter, please checking to see whether the battery contact normally and whether the Power is enough, Please replace battery in time when it is out of power.
(c)Insensitive remote controlling probably because of interfering environment and the low battery.
(d)Please remove battery when it isn't in used for a long time.
(e)Please wiring properly in strict accordance with parameters on labels. Otherwise it will directly shorten life of this device or cause malfunction immediately. The antenna mustn't connect with other wires.
(f)When these is a code switch on fan, please turn the fan to the highest gear before remote controlling.
(g)The receiver beeps when you click the remote. It might bother some people.
(h)Please make sure there are enough space in the canopy of the fan or the receiver has to be fit beside.

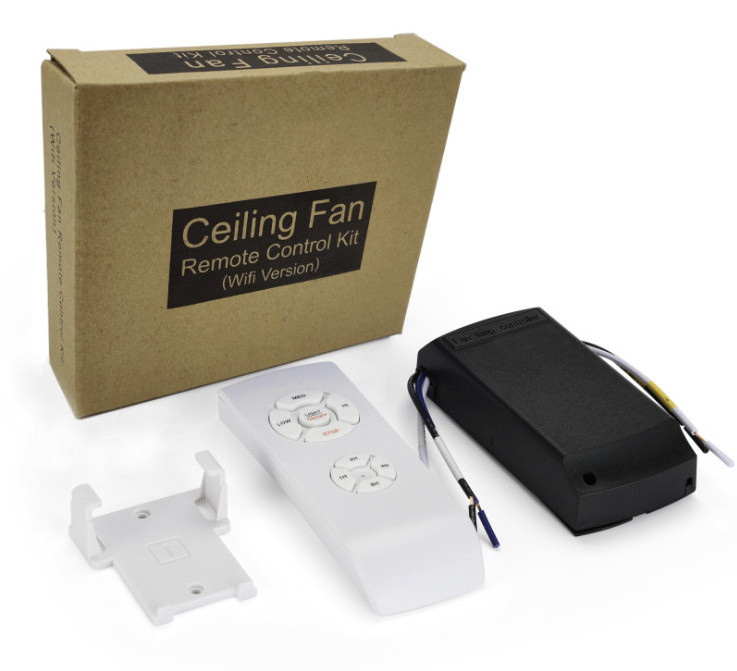

Package (Battery not include):
1* Receiver
1* Wall Mount
1* Hand-held Remote(No batteries)
