Quick Details
-
Weight (KG):
-
3500 KG
-
Name:
-
Woodworking brush sanding machine
-
Working width:
-
1000mm
-
Working thickness:
-
10-160 mm
-
Working length:
-
Not less than 350mm
-
Polishing roller diamenter:
-
300mm
-
Polishing roller speed:
-
frequency control
-
Total power:
-
11.65kw
-
Speed of conveyor belt:
-
frequency control
-
Machine dimension:
-
2890*1830*2150mm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
GYD
-
Machine Type:
-
Sanding machine
-
Weight (KG):
-
3500 KG
-
Name:
-
Woodworking brush sanding machine
-
Working width:
-
1000mm
-
Working thickness:
-
10-160 mm
-
Working length:
-
Not less than 350mm
-
Polishing roller diamenter:
-
300mm
-
Polishing roller speed:
-
frequency control
-
Total power:
-
11.65kw
-
Speed of conveyor belt:
-
frequency control
-
Machine dimension:
-
2890*1830*2150mm
-
After Warranty Service:
-
Video technical support

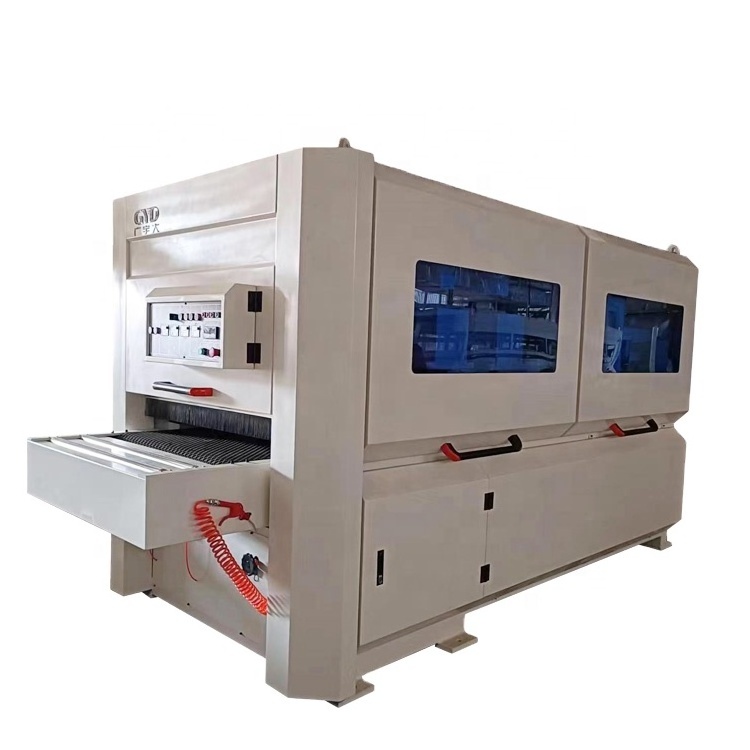

Wood furniture brush sanding polish machine
Main feature:
Strong practicability, suitable for sanding panels and primer based on all kinds of wood products. Such as cabinet door, solid wood door,PVC door, relief board, engraving board and so on. It is used for the continuous high speed running of the abrasive cloth roller of different mesh number. The surface of the machine is polished efficiently, In order to achieve mechanical smoothness. Easy to learn and operate.
Main feature:
Strong practicability, suitable for sanding panels and primer based on all kinds of wood products. Such as cabinet door, solid wood door,PVC door, relief board, engraving board and so on. It is used for the continuous high speed running of the abrasive cloth roller of different mesh number. The surface of the machine is polished efficiently, In order to achieve mechanical smoothness. Easy to learn and operate.
|
Min. Process length
|
≥350mm
|
|
Max. processing width
|
1000mm
|
|
Processing height
|
10-160mm
|
|
Woking table height
|
850±50mm
|
|
Feeding speed
|
Frequncy control, adjustable feeding speed
|
|
Feeding power
|
1.1kw
|
|
Motor power for horizontal roller groups
|
2.2kw*2
|
|
Motor power for brush disc groups
|
1.5kw
|
|
Motor power for verticle roller groups
|
1.5kw
|
|
Swing motor power
|
0.55kw
|
|
Lifting motor power
|
0.55kw
|
|
Roller diameter
|
300mm
|
|
Totoal power
|
11.65kw
|
|
Machine dimension
|
3100×1760×1890mm
|
|
Machine weight
|
3500kg
|
