Quick Details
-
Voltage:
-
380 - 460 V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
300 KG
-
Product name:
-
Plastic pellet screening machine linear vibrating sieve machine
-
Material:
-
Stainless Steel 304/316L
-
Layer(s):
-
1~5 Layers
-
Mesh size:
-
2 ~ 500 Mesh
-
Capacity:
-
100 Kg - 10 Tons/hour
-
Function:
-
Classification Screening Separating
-
Used for:
-
Powder/granular
-
Motor:
-
Two vibration motor
-
Noise:
-
Low noise
-
Customer size:
-
Available
Quick Details
-
Type:
-
LINEAR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KARAT
-
Voltage:
-
380 - 460 V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
300 KG
-
Product name:
-
Plastic pellet screening machine linear vibrating sieve machine
-
Material:
-
Stainless Steel 304/316L
-
Layer(s):
-
1~5 Layers
-
Mesh size:
-
2 ~ 500 Mesh
-
Capacity:
-
100 Kg - 10 Tons/hour
-
Function:
-
Classification Screening Separating
-
Used for:
-
Powder/granular
-
Motor:
-
Two vibration motor
-
Noise:
-
Low noise
-
Customer size:
-
Available

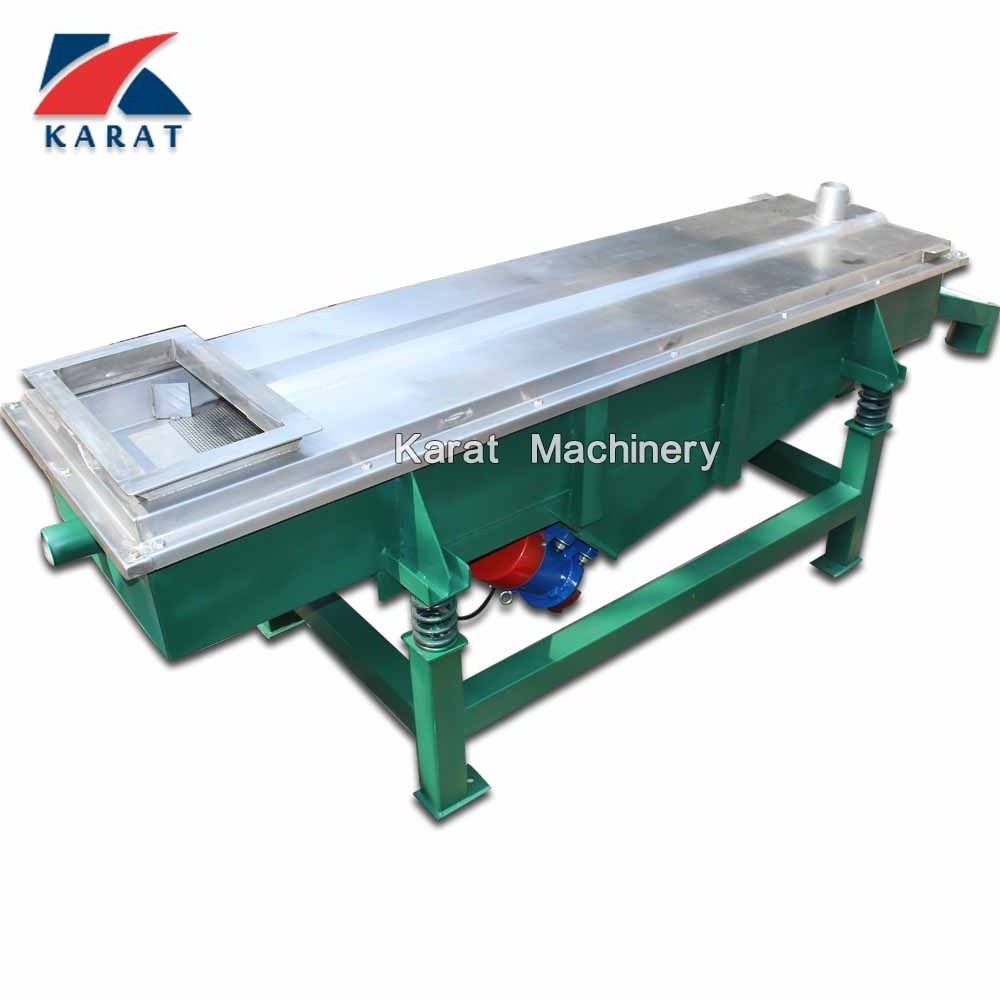

Plastic pellet screening machine linear vibrating sieve machine
Plastic pellet screening machine linear vibrating sieve machine is a kind of closed and light weight vibrating sieve equipment, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen surface, material evenly go into the feed port of linear vibrating screen from the feeding machine, generating multiple materials through the multiayer rectangular separator, and be discharged from each outlets.
Specification and Model
The following table shows some models of Plastic pellet screening machine linear vibrating sieve machine for you to reference.
| Model |
Size of screen surface (mm) |
Number of layers of screen (layer) |
Mesh size | Number of vibration | Amplitude | Motor power |
| DZSF520 | 500*2000 | 1-6 | 2-400 mesh | 960r/min | 4-8 | 2×0.4 |
| DZSF825 | 800×2500 | 2×(0.4-0.75) | ||||
| DZSF1020 | 1000×2000 | 2×(0.75-1.5) | ||||
| DZSF1030 | 1000×3000 | 2×(0.75-1.5) | ||||
| DZSF1230 | 1200×3000 | 2×(0.75-3) | ||||
| DZSF1530 | 1500×3000 | 2×(0.75-3) | ||||
| DZSF1540 | 1500×4000 | 2×(0.75-3) |
Open type Plastic pellet screening machine linear vibrating sieve machine
