Quick Details
-
Rated Capacity:
-
120t/h
-
Mixer capacity:
-
1500 kg/batch
-
Mixing Cycle:
-
45s
-
Burner:
-
Coal/Diesel/ Heavy oil/Nature Gas
-
Control system:
-
PLC+HMI(standard)
-
Control system:
-
SCHNEIDER
-
Dust Collection:
-
Pre-separator+Bag filtering house
-
Transport:
-
Container
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Mixing Type:
-
Hot Mix Batch
-
Rated Capacity:
-
120t/h
-
Mixer capacity:
-
1500 kg/batch
-
Mixing Cycle:
-
45s
-
Burner:
-
Coal/Diesel/ Heavy oil/Nature Gas
-
Control system:
-
PLC+HMI(standard)
-
Control system:
-
SCHNEIDER
-
Dust Collection:
-
Pre-separator+Bag filtering house
-
Transport:
-
Container
-
Certification:
-
ISO9001

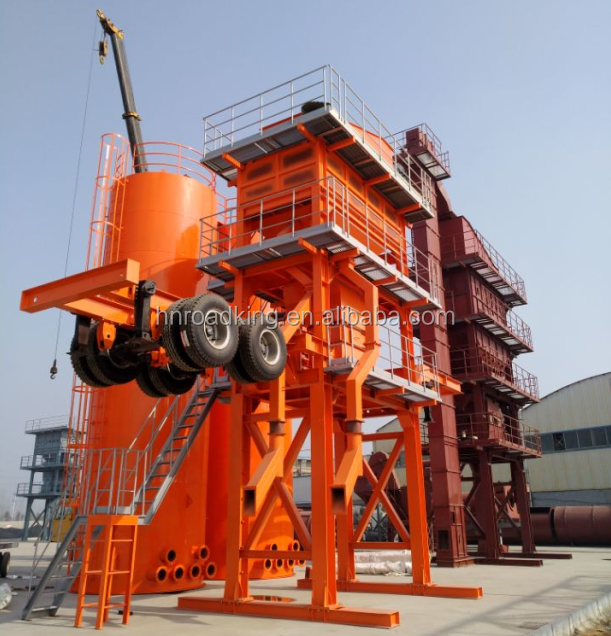

The LCY series Mobile Asphalt Mixing Plant is Based on quickly installation and easily transportation consideration,it features modular design and compact structure. It has higher degree of pre-assembly. All the features make it faster、easier and more economical for installation、shipping、reset Main components are world famous brand. This brings stability、low power consumption and enviromental demand
The whole disassembly and installtion job could be finished fast ,end users can save much labor cost and time. It is widely used for the construction of highway, bridge, and other infrastructure as well as suitable for daily road maintenance.
Easier moving with removable units
The aggregate dosing system, drying system, burner, mixing tower, vibrating screen，dust collecting system can be divided into 4 units put on 4 tractor frames respectively. Every frame can be dragged by a tractor with maximum moving speed of 80km/h. It can be easily dismantled and moved.
Parts from renowned brands build the higher reliability
It uses international renowned brands for some of the core parts to make sure the high reliability，such as: NORD for critical reducers, NSK for critical bearings, METTLER TOLEDO for digital weighing panel and sensor, SCHNEIDER for the HMI，PLC, major low voltage electric components and transducer， AirTAC for Air Cylinder.
The modular design enabling economic containerized transportation
The standard modular design enables standard containerized transportation，easier installation, dismantle and transfer.
The plant can be separated into several standard units to put into the standard containers and decreases the transport cost greatly.
Bitumen twice-scaling and spraying system
It adopts 2-grade bitumen scaling technology with real-time and dynamic monitoring with stable and accurate bitumen-aggregate ratio.
The high pressure bitumen spraying system with effusers throughout the whole mixer enables high efficiency and homogenization and saves the mixing time.
Main Features
1. Aggregate Dosing System: Adopts vari-frequency control and modular design enabling quick installation.
2. Drying System: Efficient and energy-saving with over 90% heat exchange rate.
3. Burning System: Adopts Italian technology and gets fully burning to save energy with high reliability;
4. Elevator System: The high strength endless chain and bucket elevator works stably, silently and efficient.
5. Screening System: The screen can be replaced quickly with high reliability and maintenance free.
6. Scaling System: Works stably with error auto-compensation and accurate scaling.
7. Mixing System: Efficient and reliable with large cycle tridimensional boiling type mixing.
8. Dust Collecting System: 2-stage dust collecting includes (1st stage)pre-separator and (2nd stage) bag filtering house to achieve no more than 50mg/Nm³ exhaust gas emission.
9. Filler System: high capacity, stacked new and recycled filler bins are optional.
10. Bitumen System: The modular design enables quick installation and the amount of bitumen tank can be freely combined.
11. Control System: It has reliable performance, high scaling accuracy with multi-languages.
Cold Aggregate Dosing System
The collecting feeder adopts vari-frequency control with accurate adjustment.There is horizontal mesh inside the hopper.
The discharging hole is adjustable. Auto alarm starts once starved feeding.
The middle grizzly is set to filter oversize aggregate.
Drying System
The drying drum uses four-wheel friction drive to make sure stable transmission.
The reasonable layout of the inner lifting plate makes full use of fuel and gets high heat exchange rate.
The standard equipped oil burner adopts low pressure air atomization to make the full burning with wide range of heat adjustment (max/min=10:1).
Screening System
The screen is weaved by high strength manganese steel so as to get higher wear resisting and long lifecycle.
The vibrating adopts excitation motor to enhance reliability and stability with low energy consumption and no need maintenance.
High screening efficiency without mix between different bins.
The holistic encapsulation of the vibrating screen and negative pressure exhaust device enables no dust overflow outside during the whole production.
Aggregate Scaling System:
The weighing hopper uses dual-feeding gates to get well-distributed so as to decrease the impact towards the mixer.
The built-in press-release pipeline doesn’t impact the scale to make sure the stable and accurate scaling.
The pneumatic feeding gates can quickly cut off the redundant aggregate so as to make sure the accurate scaling.
Filler Scaling System
The filler weighing uses screw conveyor matched by pneumatic butterfly valve so as to prompt cut off the redundant filler so as to make sure the accurate scaling..
The filler conveying screw runs through the whole mixer which can make sure the well distribution of the filler in the mixer and save mixing cycle.
Dust Collecting System
Adopts 2-grade dust collecting including 1st stage pre-separator and 2nd stage bag house to get high efficiency.
The bag house uses high voltage pulse-jet mode of dedusting with high temperature and ultra-temperature 2-grade protection devises to effectively protect the bag.
The filter bag uses DuPont AMAX needle felt for waterproof and oil-repellent.
Control system
The control system is self-designed and self-researched with independent intellectual property and can be customized.
The HMI is friendly and easy-to-use with multi-language.
The main components are international renowned brands with reliable performance;
All of the scales are equipped with weighing displayers with stable signal, prompt and accurate scaling.
We are dedicated to quality manangement by practicing ISO system to gurantee the product quality.
We have a professional quality team to manage the whoe quality system including SQC, IQC, PQC, quality engineering and quality system. We has been certified and practicing the ISO 9001 system for many years. We take 100% quality inspection, cross functional team monthly quality review meeting and irregular meeting to enhance quality management.
Customer Oriented After-Sales Service
The service team has professionally trained service engineers. Most of them have over 5 years of working experiences in asphalt mixing plant installation and commissioning.
The team is engaged in providing technical consultancy and support to overseas and domestic customers in a timely fashion.
Spare Parts Provision
The factory has optimal spare parts to meet customer’s demands including high quality yet lower cost spare parts and also renowned brands for the core parts to guarantee the high reliability.
