Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUDA
-
Model Number:
-
LA22S
-
Mounting hole size:
-
22mm
-
Switch rating:
-
5A/250VAC
-
Contact structure:
-
1NO1NC
-
Operation type:
-
Momentary/Latching
-
The crust material:
-
Stainless steel / Nickel-plated brass
-
Protection level:
-
IP65(can be custom IP67),IK09
-
Connect Type:
-
Pin Terminal / Screw Terminal
-
Product name:
-
Metal Push Button Switch
-
LED color:
-
Red.Yellow.Green.White.Blue.Orange
-
Front head:
-
Flat Round/High Flat Round/Concave Round/High Concave Round
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUDA
-
Model Number:
-
LA22S
-
Mounting hole size:
-
22mm
-
Switch rating:
-
5A/250VAC
-
Contact structure:
-
1NO1NC
-
Operation type:
-
Momentary/Latching
-
The crust material:
-
Stainless steel / Nickel-plated brass
-
Protection level:
-
IP65(can be custom IP67),IK09
-
Connect Type:
-
Pin Terminal / Screw Terminal
-
Product name:
-
Metal Push Button Switch
-
LED color:
-
Red.Yellow.Green.White.Blue.Orange
-
Front head:
-
Flat Round/High Flat Round/Concave Round/High Concave Round

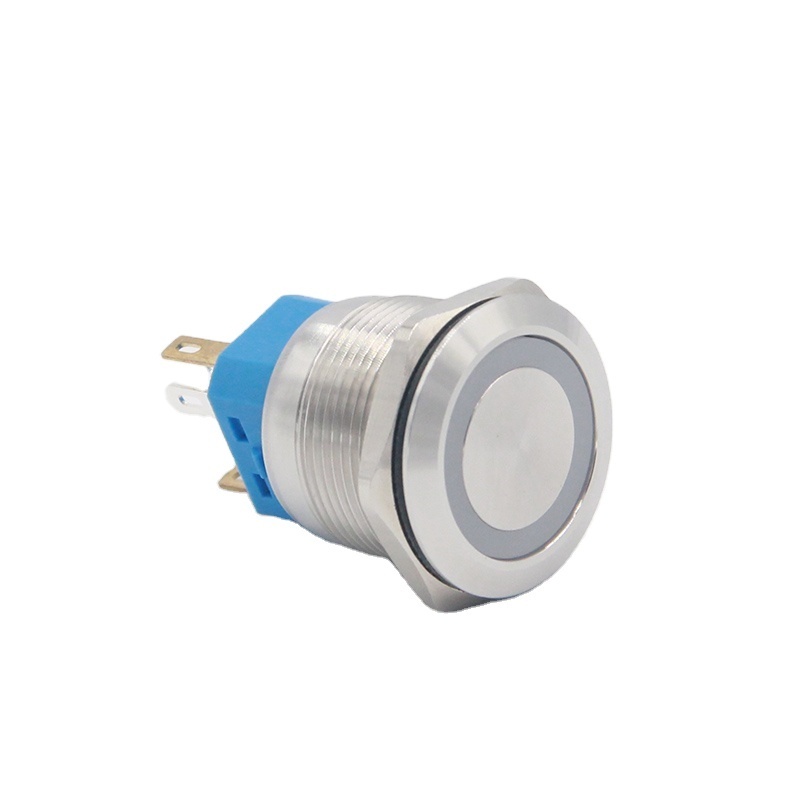

Top Quality rgb led push button switch
LA22S Series high strength resistance to destruction with lamp push button product
use import stainless steelnlckel is brass for shell
material base use PBT material make it ,one-piece metal structure design ,high strength resistance to destruction .built-in special
waterproofing system .high brightness pure color LED light emitting chip for light source
,long life,Low consumption,small volume,light
weight,the head style diversity,high brightness ,good reliability.attractive appearance and make smart,
ROHS material can custom
it,is
widely used to electricity,electronic,telecommunications,locomotive,ship,textile,printing,mining machinery and so on
electromechanical instrument industry's various industries cabinet put oneself in another's position,home appliances's man-machine
interface control system.
This push button structure design conform to the state and CE safety certification requirements.According to the international
standard IEC947 and EN60947 and CCC country GB 14048.5-2001 production testing .
If you are interested in our products, please feel free to contact us to discuss
| Type | |
| Maximum voltage | 250V |
| Maximum current | 5A |
| Protection Class | IP65(can be custom IP67),IK09 |
| Mounting hole |
22mm (or 8mm,12mm,16mm,19mm,22mm,25mm,30mm) |
| Electrical life | 200000 |
| Mechanical life | 1000000 |
| Contact structure |
1NO1NC / 2NO2NC |
| The Front Shape |
Flat round (or High flat round , Concave round ,High concav round) |
| Terminal Type |
Pin terminal (or Screw terminal) |
| Crust material |
Stainless steel [or Nickel-plated brass,Gold-plated brass,Zn-al alloy(Color button)] |
| Button material | Stainless steel |
| Lamp type |
Ring illuminated (or Dot , Power symbol, Custom text) |
| Lamp voltage | 3V,6V,12V,24V,48V.110V,230V,250V |
| Lamp color | Red,Green,Blue,Orange,Yellow,White |
| Nut Torque | About 0.6Nm |
| Panel Thickness | 1~6mm |
| Operation force | About 3~5N |
| Rated Current | 5A |
| Operating Temperature | -20°C ~+55°C |
| Operation Type | Momentary/Latching |
| Connect Type | Pin terminal, Screw terminal |
Other Series Of Buttons
Zhejiang Yuda Intelliqent Technology Co.,Ltd. is located in, Liushi, Yueqing, Zhejiang, China. We are a high-tech enterprises specialized in integrative development, including designing,developing, producing and selling. Our products are exported to the Middle East, Southeast Asia, Europe, America and other more than 30 countries and regions. Moreover, we have gained wide praise and recognition of all clients with excellent quality.
We have a number of product patents, and strictly follow the ISO9001 quality management.Our productions have been passed CE, CCC, ROHS certification and so on based on high quality.We can provide customers with professional design, development of products, and to provide a full range of electrical solutions according to your needs. push button
FAQ:
Q1. What advantages do you have?
A1. We have professional developing, marketing & production team to offer you the most competitive price and best service.
Q2. Could you print our own logo?
A2. Yes, Our company are available for Retail & Wholesale & OEM & ODM.
Q3. How long is the quality guarantee?
A3. 18 month warranty, our products are 100% inspection.
Q4. How long is the lead time?
A4. Sample lead time:1-3 days. Production lead time: 5 days.
Q5. What is your payment terms?
A5. Our Payment term is T/T,Western Union,L/C at sight.
Q6. Any certification of your company or product?
A6.We have ISO 9001,CE,CCC,ROHS. push button
