The emergency light back side with install bracket,it's convenient for wall mounted installation
- Product Details
- {{item.text}}
Quick Details
-
Light Source:
-
LED
-
Input Voltage(V):
-
AC220
-
Product Weight（kg）:
-
1.5
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
2000
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JJ
-
Product Name:
-
Explosion Proof emergency Light
-
Application:
-
Chemical Industry
-
Power:
-
2*3w/2*10w
-
Item Type:
-
Outdoor Industrial
-
Material:
-
Die Cast Aluminum
-
Ex-proof Grade:
-
DembIICT5
-
Charging time:
-
24 hours
-
Emergency time:
-
90 mins
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100, 100
-
Warranty(Year):
-
1-Year
-
Working Temperature(℃):
-
-20 - 50
-
Light Source:
-
LED
-
Input Voltage(V):
-
AC220
-
Product Weight（kg）:
-
1.5
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
2000
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JJ
-
Product Name:
-
Explosion Proof emergency Light
-
Application:
-
Chemical Industry
-
Power:
-
2*3w/2*10w
-
Item Type:
-
Outdoor Industrial
-
Material:
-
Die Cast Aluminum
-
Ex-proof Grade:
-
DembIICT5
-
Charging time:
-
24 hours
-
Emergency time:
-
90 mins

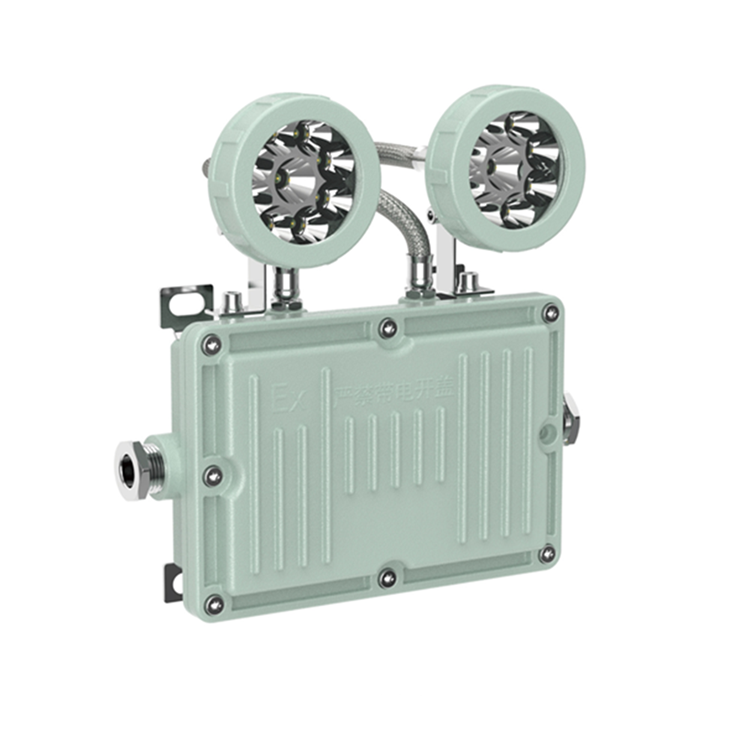

Explosion proof led emergency lights
Products Description
Features
Isolated LED compartment reduces temperature within driver housing
beam angle for 120°
instant on crisp white light output High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
|
Electrical Data
|
|
|
|
Ex Marking
|
II 2GD Ex d e IIC T6 Gb/DIP A21 TA, T6
|
|
|
Classification
|
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
|
|
|
IP Degree
|
IP54
|
|
|
Charging time
|
24 hours
|
|
|
Input Voltage
|
AC85-265v
|
|
|
Wattage
|
2*3w/2*5w
|
|
|
Emergency time
|
90mins
|
|
|
Conduit Entries
|
G 3/4"
|
|
|
Mounting Styles
|
Bracket, ceiling
|
|
|
Net Weight
|
1.5kg
|
|
Details Images
The emergency light back side with install bracket,it's convenient for wall mounted installation
Product Wire Outlet
Emergency light wire outlet with waterproof ring,whole light reached IP65
The emergency light adopt thick fireproof high temperature resistant aluminum alloy,elegant and exquisite in appearance;adopt safe
intelligent circuit design to ensure that the lamps work stably,high brightness and long lifespan LED
Application
Applications
1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3. Areas with high energy costs
4. Typical applications include: Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
