Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
6X12+7FC
-
Brand Name:
-
Tianli
-
Surface:
-
Galvanised Zinc
-
Usage:
-
Construction Materilals
-
Surface treatment:
-
Eletro Galvanized
-
Packing:
-
Wooden Reel
-
Structure:
-
1*19/1*7/7*9/7*19/7*3*3/6*3*7
-
Wire Gauge:
-
0.45MM-60MM
Quick Details
-
Steel Grade:
-
carbon steel, STEEL
-
Type:
-
galvanized
-
Grade:
-
Galvanized steel
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
6X12+7FC
-
Brand Name:
-
Tianli
-
Surface:
-
Galvanised Zinc
-
Usage:
-
Construction Materilals
-
Surface treatment:
-
Eletro Galvanized
-
Packing:
-
Wooden Reel
-
Structure:
-
1*19/1*7/7*9/7*19/7*3*3/6*3*7
-
Wire Gauge:
-
0.45MM-60MM
Wholesale price 10 mm 8x19 Wire Rope for Elevator Ungalvanized Lift Steel Wire Rope
6x12+7FC Steel Wire Rope,for tugboat,cargo net,floating of wood,fish net dragging and bind
Construction:6X12+7FC;6X24+7FC
Size: 8mm-40mm
Surface: galvanized and ungalvanized, hot dipped galvanized
Tianli Stainless Steel offers a complete line of stainless wire rope for marine, industrial and architectural applications.
All of our stainless wire rope is made from 316 and 304 stainless steel.
Our wire rope product line also includes both Black Nylon Coated Wire & White Nylon Coated Wire & Transparent Clear Nylon Coated Wire.
We also offer a complete line of Wire Rope Accessories including Thimbles, Turnbuckles, Clips, Sleeves, Swage Turnbuckles & Terminals.
Our stainless wire rope will meet and exceed your expectations.
Our stainless wire rope can be supplied on a spool or cut to your specific request.
| Structure | Norminal diameter mm | Approximate Weight kg/1000m | Min. Breaking Strength N | Min. Breaking Strength kg |
| 7*37 | 10 | 400 | 54000 | 5510 |
| 12 | 576 | 73000 | 7449 | |
| 13 | 676 | 82000 | 8367 | |
| 14 | 784 | 89000 | 9082 | |
| 16 | 1024 | 124000 | 12653 | |
| 18 | 1296 | 157000 | 16020 | |
| 20 | 1600 | 194000 | 19796 | |
| 22 | 1936 | 235000 | 23980 | |
| 24 | 2304 | 280000 | 28571 | |
| 26 | 2704 | 328000 | 33469 | |
| 28 | 3136 | 381000 | 38878 | |
| 30 | 3600 | 437000 | 44592 | |
| 32 | 4096 | 497000 | 50714 | |
| other diameter and structure available | ||||
| Chemical Composition of common Stainless Steel | ||||||||
| % | ||||||||
| Component | C | Si | Mn | P | S | Cr | Ni | Mo |
| 304 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 17.00-19.00 | 8.00-10.00 | |
| 304L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 18.00-20.00 | 8.00-10.00 | |
| 316 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 12.00-15.00 | 2.00-3.00 |
Packing: Export Package
Inner packing:

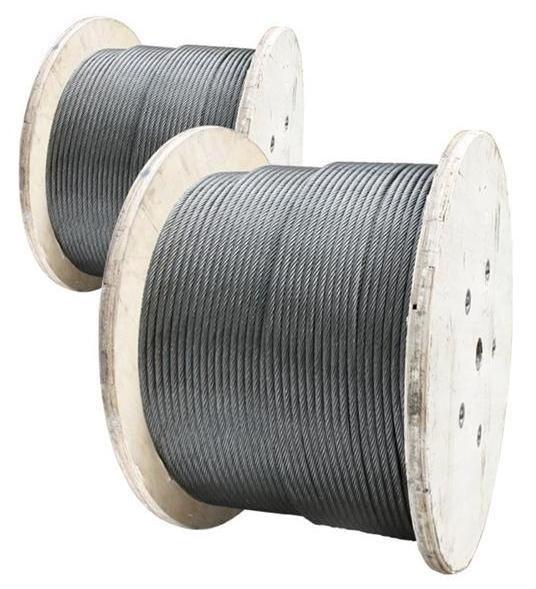

Wooden reel and craft paper
Outer packing:
Wooden pallet or according to customer's request
