Quick Details
-
Brand Name:
-
SNSC
-
Fork Length:
-
1220mm
-
Fork Width:
-
150mm
-
Overall Dimensions:
-
3100x1490x2355mm
-
Weight (KG):
-
6700 kg
-
Product Name:
-
5ton EPA Certificated Diesel Forklift
-
forklift engine model:
-
KUBOTA ENGINE
-
Type:
-
Powered Pallet Truck
-
Loading Capacity:
-
10000kg
-
Turning radius:
-
3250mm
-
forklift tire:
-
Pneumatic tires
-
color:
-
green/orange/yellow
-
forklift options:
-
LED light, fan, cabin,
-
HS code:
-
84270290
-
Max. travelling speed:
-
26km/h
Quick Details
-
Min. Lifting Height:
-
145MM
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SNSC
-
Fork Length:
-
1220mm
-
Fork Width:
-
150mm
-
Overall Dimensions:
-
3100x1490x2355mm
-
Weight (KG):
-
6700 kg
-
Product Name:
-
5ton EPA Certificated Diesel Forklift
-
forklift engine model:
-
KUBOTA ENGINE
-
Type:
-
Powered Pallet Truck
-
Loading Capacity:
-
10000kg
-
Turning radius:
-
3250mm
-
forklift tire:
-
Pneumatic tires
-
color:
-
green/orange/yellow
-
forklift options:
-
LED light, fan, cabin,
-
HS code:
-
84270290
-
Max. travelling speed:
-
26km/h

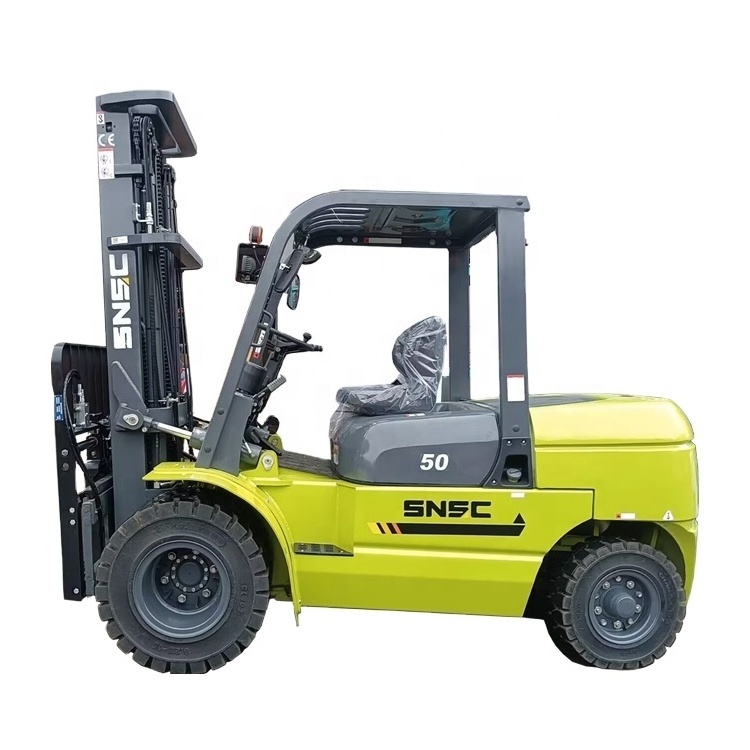

5ton EPA Certificated Diesel Engine Montacargas Forklift with Fork Positioner Side Shifter For Sale
Product Description
Main configuration of 5ton EPA Certificated Diesel Engine Montacargas Forklift with Fork Positioner Side Shifter For Sale :
Chinese Quanchai engine 4C6 (optional: Japan engine kubota v2403)
Japan SHIMADZU Hydraulic System(including pumps and valves and oil pipes);
Triplex full free lift 3.9m mast very suitable for working in container or van.
Full closed cabin
Triplex full free lift 3.9m mast very suitable for working in container or van.
Full closed cabin
Warm heater
Electric Hydraulic Automatic Transmission by TCM technology;
Triangle wide view back mirror;
Waterproof overhead guard.
Electric Hydraulic Automatic Transmission by TCM technology;
Triangle wide view back mirror;
Waterproof overhead guard.
What makes our
SNSC 5Ton Diesel Forklift with EPA engine To USA
special
:
(1)Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;
(2)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(3)Copper radiator, with better heat radiation;
(4)Rain-proof overhead guard;
(5)Cylinder protection;
(6)Light protection;
(7)Luxury fully suspended seat with armrest and belt;
(8)Warning light;
(9)Red/yellow/green colors for your choice.
(1)Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;
(2)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(3)Copper radiator, with better heat radiation;
(4)Rain-proof overhead guard;
(5)Cylinder protection;
(6)Light protection;
(7)Luxury fully suspended seat with armrest and belt;
(8)Warning light;
(9)Red/yellow/green colors for your choice.
Specification
|
SNSC 5Ton Diesel Forklift with EPA engine To USA
|
|
|
|
|
||||
|
Specifications
|
|
|
Unit
|
FD50
|
||||
|
Features
|
Power type
|
|
-
|
Diesel
|
||||
|
|
Rated load
|
|
kg
|
5000
|
||||
|
|
Load center
|
|
mm
|
500
|
||||
|
|
Lifting Height
|
|
mm
|
3000
|
||||
|
|
Free lifting height
|
|
mm
|
205
|
||||
|
|
Fork size
|
L*W*T
|
mm
|
1220*150*55
|
||||
|
|
Mast Tilt Angle
|
Front/Rear
|
。
|
6/12
|
||||
|
|
Min. Turning Radius
|
|
mm
|
3250
|
||||
|
|
Min. Ground Clearance
|
Mast
|
mm
|
200
|
||||
|
|
Overhead Guard Height
|
|
mm
|
2460
|
||||
|
|
Height from seat to overhead guard
|
|
|
1090
|
||||
|
|
Front overhang
|
|
mm
|
610
|
||||
|
Performance
|
Max. Travelling Speed
|
loaded
|
km/h
|
26
|
||||
|
|
Max. Lifting Speed
|
loaded/empty
|
mm/s
|
500
|
||||
|
|
Max. traction force
|
loaded
|
KN
|
51.4
|
||||
|
|
Max. Climbing Ability
|
|
%
|
20
|
||||
|
Dimension
|
Overall Lenght
|
without fork
|
mm
|
3430
|
||||
|
|
Overall Width
|
|
mm
|
2235
|
||||
|
|
Mast Lowered Height
|
|
mm
|
2500
|
||||
|
|
Mast Extended Height
|
|
mm
|
4380
|
||||
|
Chassis
|
Tyre
|
Front
|
-
|
8.25-15-14PR
|
||||
|
|
|
Rear
|
-
|
8.25-15-14PR
|
||||
|
|
Wheel Base
|
|
mm
|
2250
|
||||
|
|
Tread width
|
Front/Rear
|
mm
|
1470/1700
|
||||
|
|
Weight(without load)
|
|
kg
|
7980
|
||||
|
Powertrain
|
Battery
|
|
V/AH
|
(12/90)x2
|
||||
|
|
Engine
|
Model
|
-
|
XC6110
|
||||
|
|
|
Rated power
|
KM/r.p.m
|
81/2500
|
||||
|
|
|
Rated Torque
|
N.m/r.p.m
|
353/1700
|
||||
|
|
|
No. of Cylinder
|
-
|
6
|
||||
|
|
|
Bore x Stroke
|
mm
|
110×125
|
||||
|
|
Displacement
|
|
L
|
5.785
|
||||
|
|
Fuel Tank Capacity
|
|
L
|
140
|
||||
|
|
Transmission/Shift
|
|
-
|
1/1 Automatic transmission
|
||||
|
|
Operation Pressure
|
|
MPa
|
20
|
||||
Details Images
Original Japanese ISUZU Engine
Electric automatic hydraulic transmission
Waterproof Overhead Guard
Seat with safety belt
LED Warning Light
Light Protection
Cylinder Dustproof Protection
Triangle WIder Rearview Mirror
Original Japan Shimadzu Hydraulic System
Duplex or triplex 3000mm - 7000mm Lifting Mast
High performance Cooper Radiator
Free spare parts and tool box.(value more than $200 as a gift from SNSC)
SNSC FORKLIFT Factory
Our factory was established in 2010, covering area of 130,000 square meters, has more than 400 employees. Among them, there are nearly 80 engineers, 60 office staff and 300 front-line workers. The annual output is 10,000 sets forklifts, the daily output is 40 units, and the export volume is 3,000 units.
We have 4 modern production workshops, has more than 100 sets international leading level of the large and medium-sized equipments, world’s advanced research facilities, intelligent detection system. Our forklifts got certifications of ISO 9001, CE, EPA, GOST and so on.
At present, it has formed three categories including internal combustion, electric, and storage, a total of 209 models of forklift products. Our products have been widely used in paper making, automobile, tobacco, logistics, stone material and other industries.
We have 4 modern production workshops, has more than 100 sets international leading level of the large and medium-sized equipments, world’s advanced research facilities, intelligent detection system. Our forklifts got certifications of ISO 9001, CE, EPA, GOST and so on.
At present, it has formed three categories including internal combustion, electric, and storage, a total of 209 models of forklift products. Our products have been widely used in paper making, automobile, tobacco, logistics, stone material and other industries.
Optional Attachments
We are dedicated to providing forklift VIP solution to meet all kinds of work condition which means SNSC forklift can be customized. For example, if your want move forks from left to right automatically without moving forklift, we suggest you side shifter. if you want to adjust fork’s distance, we suggest fork positioner. If your working environment is very cold or rainy, we suggest you fully closed cabin with opening windows. And all kinds of attachments, such as paper roll clamp, bale clamp, block clamp, carton clamp, double forks and so on.
Quality Control
Although we adopt strict quality control during production, we will test all the forklifts again before delivery to ensure forklift’s high quality. If not passed any test, our forklift will not been allowed to leave the factory. If the storage time exceeds 1 month, we need to do regular maintenance and testing until it leaves the factory.
Successful Cases
Our products have been exported to more than 130 countries and areas such as UK, France, Spain, Russia, Australia, USA, Mexico, South America, Southeast Asia, Middle East, Africa, etc.
8units SNSC FD35 3.5ton diesel forklifts with Japanese Isuzu engine have been sent to France on March of 2020.
6 units SNSC FD25H 2.5ton diesel forklifts with Triplex 4.5meters mast have been sent to Argentina on August of 2020.
10 units SNSC FL30 3ton LPG&Gasoline forklifts have been sent to Mexico on January of 2019.
January-2018-4 units SNSC FD30 diesel forklifts with ISUZU to Kingdom of Saudi Arabia
May-2019-5 units SNSC FD30&FD35 diesel forklifts with Chinese engines to Libye
6 units SNSC FB20H 2ton electric forklift with USA Full AC CURTIS have been sent to Canada on June of 2020.
Package and Delivery
One 40HQ can hold 3 units
5ton EPA Certificated Diesel Engine Montacargas Forklift with Fork Positioner Side Shifter For Sale
Welcome to contact Winni for More details!
