Quick Details
-
Nature:
-
DVB-T2 Modulator
-
Support:
-
DPD Digital Pre-distortion
-
TS format:
-
T2-MI or MPEG2 TS (Mode A)
-
Output signal bandwidth:
-
5MHz, 6MHz, 7MHz, 8MHz
-
RF frequency range:
-
MPEG1 Layer II(default)
-
PAPR types supported:
-
ACE and TR-PAPR
-
Output level:
-
up to 0dBm
-
Shoulder level:
-
>56dB
-
MER:
-
>43dB
-
Input:
-
1*ASI in 1*ASI backup, IP, 1pps, 10MHz
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-2100
-
Nature:
-
DVB-T2 Modulator
-
Support:
-
DPD Digital Pre-distortion
-
TS format:
-
T2-MI or MPEG2 TS (Mode A)
-
Output signal bandwidth:
-
5MHz, 6MHz, 7MHz, 8MHz
-
RF frequency range:
-
MPEG1 Layer II(default)
-
PAPR types supported:
-
ACE and TR-PAPR
-
Output level:
-
up to 0dBm
-
Shoulder level:
-
>56dB
-
MER:
-
>43dB
-
Input:
-
1*ASI in 1*ASI backup, IP, 1pps, 10MHz
DMB-90E FTA Channels Source
DMB-90E 4/8/12/16/20/24 Tuners to 256*SPTS/4*MPTS IP UDP/RTP Receiver
DMB-24E FTA 24*Tuners to RF Transmodulator
INPUT: 4/8/12/16/20/24 Tuners +32*IP SPTS input
Output :4*RF output (DVB-T/DVB-C/ISDB-T/ATSC/DTMB option)
DMB-9582-S2 SDI to DVB-S/S2 modulator
Inputs: 1*SDI+1*ASI; Outputs: ASI ,RF(DVB-S2) ,Built-in 10MHz reference clock and output; Support 1080P HD ,BISS Function, Adequate for DSNG system to encode SD/HD programs to DVB-S2 uplink
DMB-8900NU UHD 4K HEVC ProVideo Streaming Encoder
Input:
1*channel HDMI in
IP Output:
Full HD 4K@30fps
OVERVIEW

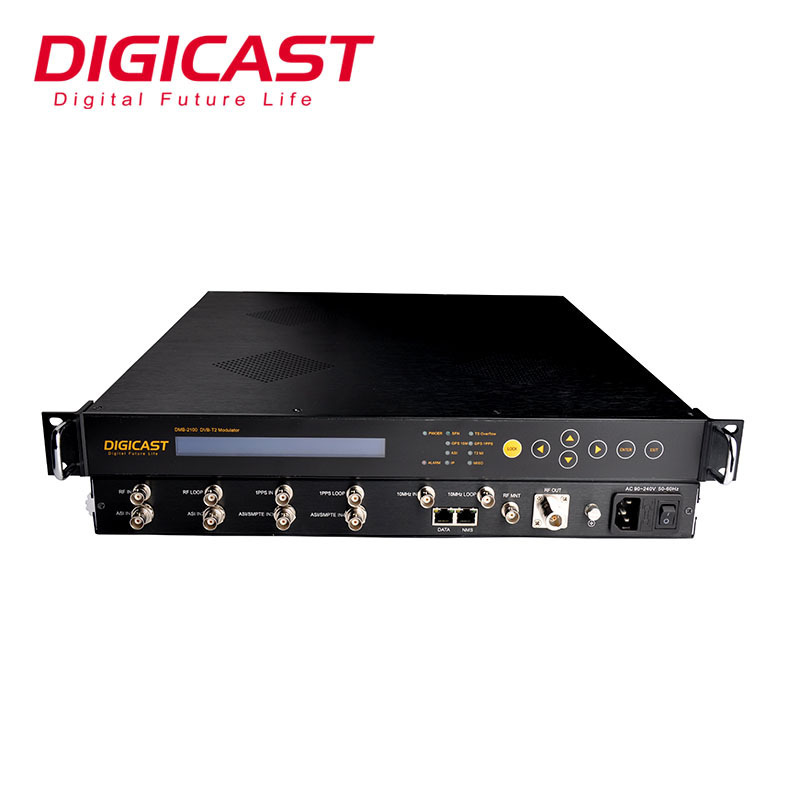

DMB-2100 DVB-T2 Modulator is newly designed with advanced encoding and modulating technology.
Compliant with DVB-T2 standard, it can make better using of the limited terrestrial bandwidth sources and provide more than 50% capacity compared with the previously DVB-T standard. It equipped with Mode A(single-PLP), it also be able to receive transmission data and synchronous information from DVB-T2 Gateway via ASI and IP connectors. Excellent performance and features enable this advanced DVB-T2 Modulator to wide applications in the even-increasing needs of HD/SD programs and developing DVB-T2 system etc.
FEATURES
* Conforms to DVB-T2(EN302 755) standard
* Providing DVB-T and DVB-T2 modulation mode switchable.
* 4*ASI inputs for multiplexing
* Support 1 Gigabit Ethernet IP input
* Capable of multiplexing from 4*ASI and IP input
* Provided with QPSK/16QAM/64QAM/256QAM
* Support TS format of MPEG2 TS (Mode A)
* High quality output index: MER>43dB, and shoulder level>56dB
* Output signal bandwidth: 5MHz, 6MHz, 7MHz, 8MHz
* RF frequency range: 30MHz~999MHz
* Output level up to 0dBm
* Convenient upgrading via network
* Simple and easy to operate, keyboard on front panel with LCD display
|
SPECIFICATIONS
|
|
|
|
|
Conforms to DVB-T2 (EN302 755) standard
4*ASI inputs(1*ASI for TS in, 3*ASI for backup) 1*IP(UDP) input, RJ45 |
|
|
|
Conforms to EN 302755 standard
Support of Mode A (single-PLP) Constellation: PLP - QPSK, 16QAM, 64QAM, 256QAM L1 Post – BPSK, QPSK, 16QAM, 64QAM FFT: 1k, 2k, 4k, 8k, 16k, 32k, 8k-ext, 16k-ext, 32k-ext FEC length: 16K, 64K FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 FEC types: BCH+LDPC Piolt pattern: PP1~PP8 Guard interval: 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4 Bandwidth: 5MHz, 6MHz, 7MHz, 8MHz Net mode: MFN |
|
|
|
Frequency range: 30MHz~999MHz
Attenuation: up to 0dBm MER: >43dB Shoulder: >56dB PAPR: ACE and TR-PAPR Interface: N, 50Ω |
|
|
GENERAL OPTIONS
|
|
|
|
Control and Monitoring
|
Keyboard control on front panel, LCD display
Network software control and upgrading |
|
|
Physical and Power
|
Voltage: 200~240VAC, 50/60Hz
Consumption: 35W Operating temperature: 0~45°C Storage temperature: -20~80°C Dimensions: 482mm(W)*410(D)mm*45mm(H) Weight: 5 KGS |
|
|
