Before operation, check whether the main shaft turns clockwise. If not, then change phase sequence of the power source to make the
motor turns clockwise before operation. Mix mineral samples and water and then pour them into the cell. Start up the motor to
drive the main shaft for rotation. The impeller will agitate in the cell. Then open the valve for air inflation and add chemical
agent to form foams. Turn on switch of the scraper motor (8) for rotation of the scraper to scrape foams out of the cell. A box is
set on the working table to receive foams. Minerals needed can be obtained after processing of the foams.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
560*460*860mm
-
Weight:
-
67 KG
-
Product name:
-
Lab Multiple Cell Flotation
-
Application:
-
Enery & Mining
-
Function:
-
Ore Separation
-
Groove Capacity:
-
0.5,0.75,1,2,4,8L
-
Color:
-
Customers' Requirements
-
Impeller Diameter:
-
54,73,95mm
-
Feeding Size:
-
0.2mm
-
Shipping Way:
-
By Sea, DHL, FedEx, UPS, TNT, EMS
-
Pay Terms:
-
TT, PayPal, Credit Card, Western Union
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
WKD
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
560*460*860mm
-
Weight:
-
67 KG
-
Product name:
-
Lab Multiple Cell Flotation
-
Application:
-
Enery & Mining
-
Function:
-
Ore Separation
-
Groove Capacity:
-
0.5,0.75,1,2,4,8L
-
Color:
-
Customers' Requirements
-
Impeller Diameter:
-
54,73,95mm
-
Feeding Size:
-
0.2mm
-
Shipping Way:
-
By Sea, DHL, FedEx, UPS, TNT, EMS
-
Pay Terms:
-
TT, PayPal, Credit Card, Western Union
Product Overview

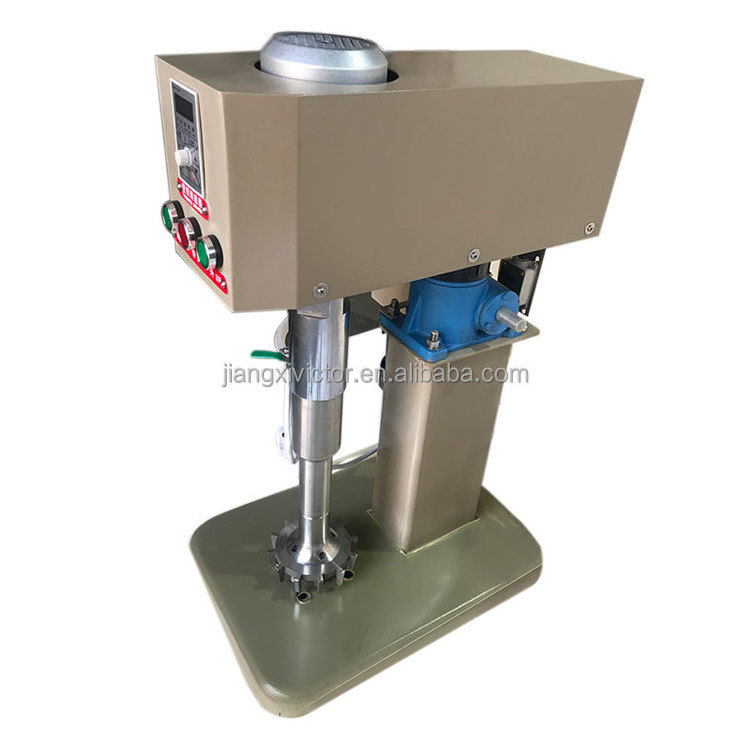

Laboratory Multiple Cell
Flotation
Machine
XFD-12 laboratory multiple cell flotation machine is applicable to used in flotation of non-ferrous,ferrous metals,non-metallic
and coal that 35 mesh or less size fraction.It also can be used in float test on 125-3000g flotation sample.
XFD-12 Lab Multi-cell Flotation Machine is produced by the only manufacturer designated by the former Ministry of Geology and
Mineral Resources, in compliance with the Industrial standards.
XFD-12 Lab Multi-cell Flotation Machine is an experimental standard flotation machine for coal dressing and is also suitable to
applied in metallurgical, geological, coal, building material, chemical, environmental protection and other industries for
agitating, scrubbing, separating and cleaning minor samples.
and coal that 35 mesh or less size fraction.It also can be used in float test on 125-3000g flotation sample.
XFD-12 Lab Multi-cell Flotation Machine is produced by the only manufacturer designated by the former Ministry of Geology and
Mineral Resources, in compliance with the Industrial standards.
XFD-12 Lab Multi-cell Flotation Machine is an experimental standard flotation machine for coal dressing and is also suitable to
applied in metallurgical, geological, coal, building material, chemical, environmental protection and other industries for
agitating, scrubbing, separating and cleaning minor samples.
Working Principle
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Cell Capacity
|
0.5/0.75/1/2/4/8L
|
|
Speed of Impeller
|
0-2800r/min
|
|
Max Feeding Size
|
0.2mm
|
|
Motor
|
250w
|
|
Diameter of Impeller
|
φ54/φ73/φ95mm
|
|
Dimension
|
560*460*860mm
|
|
Weight
|
70kg
|
