Quick Details
-
Rated voltage:
-
500KV and lower voltage
-
Certification:
-
ISO9001-2008
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Histe
-
Model Number:
-
FXBZ
-
Rated voltage:
-
500KV and lower voltage
-
Certification:
-
ISO9001-2008

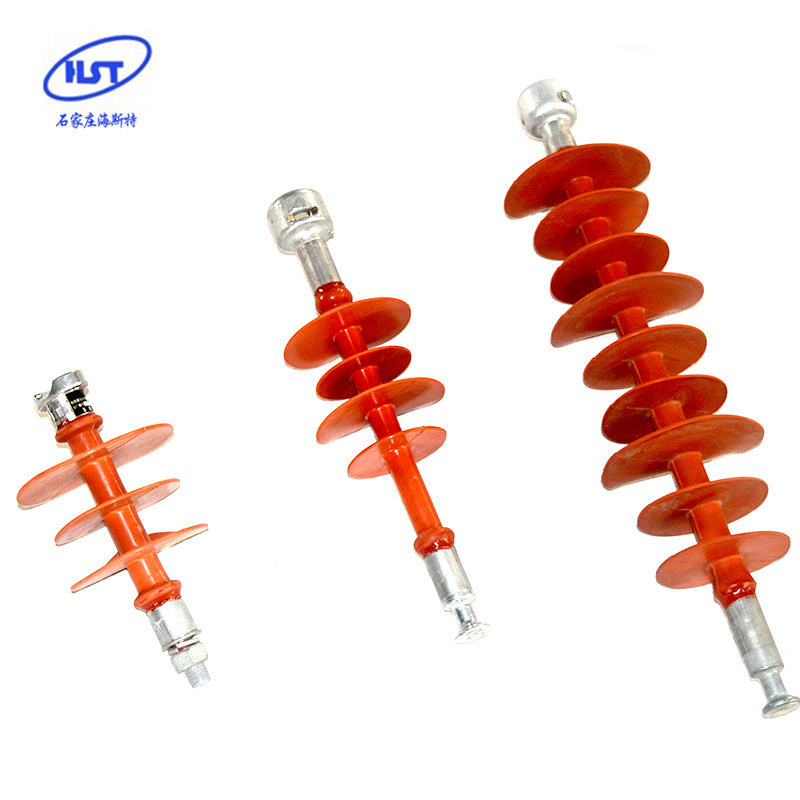

Product features and advantages:
1.Secure and reliable operation on high mechanical strength.
2.Perfect hydrophobic performance, good resistance to aging, tracking and erosion.
3.High-strength acid-resistant FRP rod ensures the reliability of composite insulator.
4.The arcing corona ring well distributes the electric field along the insulator’s axe to prevent corona phenomenon and secure the insulator from heavy damage in end fitting in case of flashover.
5.The end fitting and FRP rod are connected with imported end-fitting crimping equipment ,ensures the mechanical performance of the product.
6.The unique end fitting sealing structure improves product sealing reliability.
7.High anti-aging performances which is perfect for utilization under conditions of high altitude.
8.The strict inspection measures ensure the perfect quality of every product.
9.We can design and produce according to the drawings and detailed requirements of customers.
FZSW-10KV
|
Product name |
Product Model |
Rated voltage (kV) |
Rated mechanical bending load |
Structure height H(mm) |
Insulation distance (mm) |
Min. creepage distance Lc.(mm) |
Lightning impulse withstand voltage (kV) |
P.F. wet withstand voltage(kV)
|
|
|
FZSW-10/4 |
10 |
4 |
250 |
180 |
380 |
85 |
45 |
FZSW-35KV
|
Product name |
Product Model |
Rated voltage (kV) |
Rated mechanical bending load |
Structure height H(mm) |
Insulation distance (mm) |
Min. creepage distance Lc.(mm) |
Lightning impulse withstand voltage (kV) |
P.F. wet withstand voltage(kV)
|
|
|
FZSW-35/4 |
35 |
4 |
445 |
400 |
1320 |
230 |
95 |
FZSW-66KV
|
Product name |
Product Model |
Rated voltage (kV) |
Rated mechanical bending load |
Structure height H(mm) |
Insulation distance (mm) |
Min. creepage distance Lc.(mm) |
Lightning impulse withstand voltage (kV) |
P.F. wet withstand voltage(kV)
|
|
|
FZSW-72.5/10 |
66 |
10 |
770 |
680 |
1450 |
350 |
150 |
FZSW-110KV
|
Product name |
Product Model |
Rated voltage (kV) |
Rated mechanical bending load |
Structure height H(mm) |
Insulation distance (mm) |
Min. creepage distance Lc.(mm) |
Lightning impulse withstand voltage (kV) |
P.F. wet withstand voltage(kV)
|
|
|
FZSW-126/8 |
110 |
8 |
1200 |
1080 |
2750 |
500 |
230 |
