NOTES
• Use 25 gauge furring channel on walls.
• Furring channel is installed across studs horizontal to the floor.
• Use a 4 ft. level to ensure furring channel is installed level.
• Clips are spaced no further than 48 inches apart horizontally
• Hat channel must not be spaced more than 24 inches vertically
• Bottom clips must be less than 3 inches from the floor
• Top clips must be less than 6 inches from the ceiling
• Make sure to leave a 1/4 in. gap between wall and celling and wall and floor to fill with acoustical caulk.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Soundproof, Ceiling, Plywoods, Walls, Hat Track Channel, Concrete
-
Design Style:
-
Traditional
-
Material:
-
Flame retarded silicone+Galvanized Steel, 100% Flame retarded silicone Rubber
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
-
-
Model Number:
-
-
-
Product name:
-

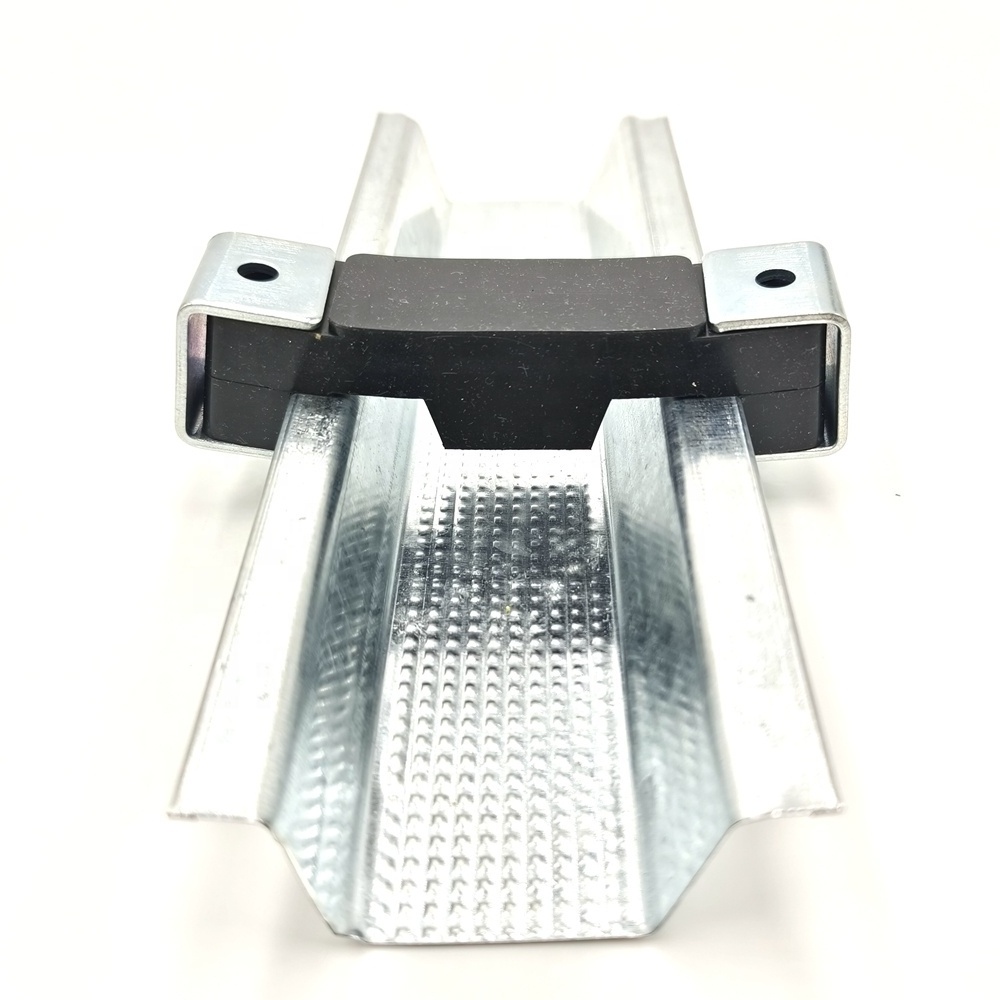

Sound Isolation Clip
-
Color:
-
Black in stock, custom color avaliable
-
Size:
-
10*2.7*2.5 cm
-
Unit Weight:
-
107 grams
-
Feature:
-
resilient,Flame retarded
-
Hardness:
-
Between 60 Shore A
-
Type:
-
Ceiling Grid Components
-
MOQ:
-
100pcs
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Soundproof, Ceiling, Plywoods, Walls, Hat Track Channel, Concrete
-
Design Style:
-
Traditional
-
Material:
-
Flame retarded silicone+Galvanized Steel, 100% Flame retarded silicone Rubber
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
-
-
Model Number:
-
-
-
Product name:
-
Sound Isolation Clip
-
Color:
-
Black in stock, custom color avaliable
-
Size:
-
10*2.7*2.5 cm
-
Unit Weight:
-
107 grams
-
Feature:
-
resilient,Flame retarded
-
Hardness:
-
Between 60 Shore A
-
Type:
-
Ceiling Grid Components
-
MOQ:
-
100pcs
Product Description
RSIC-1
Features
Highly effective sound control
Quick and easy to install with standard drywall furring channel
Weight capacity - 45 - 60 lbs. maximum, see installation guidelines
Maximizes available occupied space with low-profile design
Performance range of STC 57 to STC 64 per laboratory tests - a substantial improvement vs. resilient channel
Eliminates problem of hard attaching that is common with resilient channel
UL fire-rated wall and ceiling assemblies
Installation Instructions
Wall Installation Guide
Product packaging
Company Profie
Hagoin(Hæ Gu′i: N) group was originally found in the year 1998, has been devoted to produce high quality rubber parts, plastic parts and metal parts for both domestic and oversea customers. Our products are widely used in automotive, industrial, Agriculture, aerospace, building, electronic, mobile phone, daily life etc fields. Our products get CE, RoHS, REACH, LFGB certified, meet great demand on both USA and European markets. We have 46 employees, including 2 master′s degrees, 7 bachelor degrees and 37 experienced workers. We have flat vulcanized machines, injection machines, material mixer, punching machines, bending machines, laser, CNC center etc 35 sets. We have advanced test equipment, including the UV aging tester, tensile strength tester, tear strength tester, hardness reader, high and low temperature tester, ensure the quality meet customers′ requirements.
We also meet ISO9001 and TS16949 system. Most of our raw material are imported from USA, Germany, Japan, Thailand and Russia.
We also meet ISO9001 and TS16949 system. Most of our raw material are imported from USA, Germany, Japan, Thailand and Russia.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
