Quick Details
-
Control system:
-
Ncstudio
-
Application:
-
Stone
-
Spindle:
-
Water Cooling Spindle
-
Motor:
-
Stepper Motor
-
Spindle power:
-
5.5kw
-
Software:
-
Artcam
-
Working area:
-
2000*3000mm
Quick Details
-
Type:
-
Stone Engraving Machine
-
Power:
-
15
-
Place of Origin:
-
China
-
Control system:
-
Ncstudio
-
Application:
-
Stone
-
Spindle:
-
Water Cooling Spindle
-
Motor:
-
Stepper Motor
-
Spindle power:
-
5.5kw
-
Software:
-
Artcam
-
Working area:
-
2000*3000mm

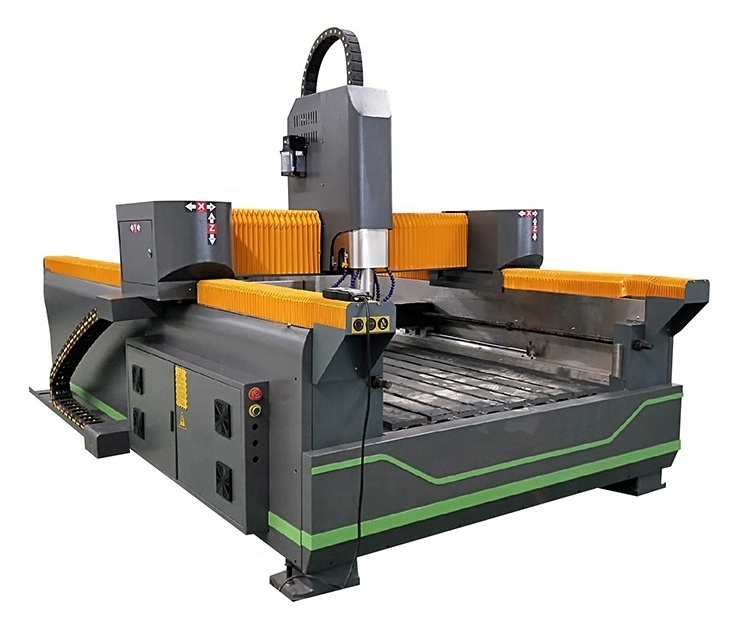

Stone Router CNC Marble Granite Engraving Carving Machine
LD-CNC Router Application
1. Marble, granite, sandstone, brick, glass and ceramic tile craftworks
2. Stele processing
3.Gravestone engraving, monument engraving
4.Individual indoor and outdoor decorations making
5.Other stone industry
LD-CNC Router Features:
1.
I
ntelligent protection work table
: Prevention of misoperation or software errors, and so on the surface may cause damage. Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision caused the phenomenon.
2.
Fully in line with international standards
: can use
wentai.type3,artcam
software.
3.
N
cstudio system:
control automatically processing multiple levels 3 D. To carry out rapid, smooth 3D processing, carving or cutting.
4.
The overall program
structure welding tempering aging treatment:
is not strong deformation. Gantry mobile, fixed working table can be arbitrary processing work table material.
5.
Suitable for
a variety of materials
:
processing large quantities of production.
6. Take the water cooling system: for marble tool when works for marble ,granite ,stone and so on.
LD-CNC Router Parameter
|
Model |
LD-1530 |
|
Working Area(X,Y,Z) |
1500mm*3000mm*500mm |
|
Working accuracy |
±0.05mm |
|
Table size |
1950mm*3000mm |
|
Repositing accuracy |
±0.05mm |
|
Table structure |
aluminum table(optional, Vacuum table) |
|
X Y Z Structure |
X Y rack pinion ,Z ball screw |
|
Rapid travel rate |
30000mm/min |
|
Working speed |
17000mm/min |
|
Spindle power |
2*5.5kw water-cooling spindle (optional,air-cooling spindle,4.5kw,6kw,7kw,9kw) |
|
Spindle roting speed |
0-24000rpm/min(optional,0-18000rpm/min) |
|
Work Mode |
Stepper motor(Optional,servo motor) |
|
Command language |
G code , mmg , plt , u00,HPGL |
|
Power(not include the spindle) |
2KW |
|
Driving mode |
Z-Ball screw ,XY-Rack drive |
|
Working voltage |
AC380V/50hHz |
|
Surrounding of software |
Windows 7/98/2000/xp |
|
Control system |
DSP control system(Ncstudio) |
|
Driver |
Leadshine driver |
|
Inverter |
Fu ling inverter |
|
Software |
Artcam/Artengraver/Type3/UcancamV9(optional) |
|
Machine size |
2200mm*3300mm*1900mm |
|
Dust collecting system,all HIWIN square guide rail,oiling system |
|
