Quick Details
-
Filling Accuracy:
-
±1%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Selection
-
Weight:
-
600 KG
-
Core Components:
-
MOTOR GEAR PLC
Quick Details
-
Machinery Capacity:
-
60bottles/min(Baseon100~500ml)
-
Packaging Material:
-
Metal, Glass
-
Filling Material:
-
hisliquor, soy sauce, vinegar, condiments, vegetable oil, syrup, mineral water
-
Filling Accuracy:
-
±1%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Selection
-
Weight:
-
600 KG
-
Core Components:
-
MOTOR GEAR PLC
ABOUT THE PRODUCT

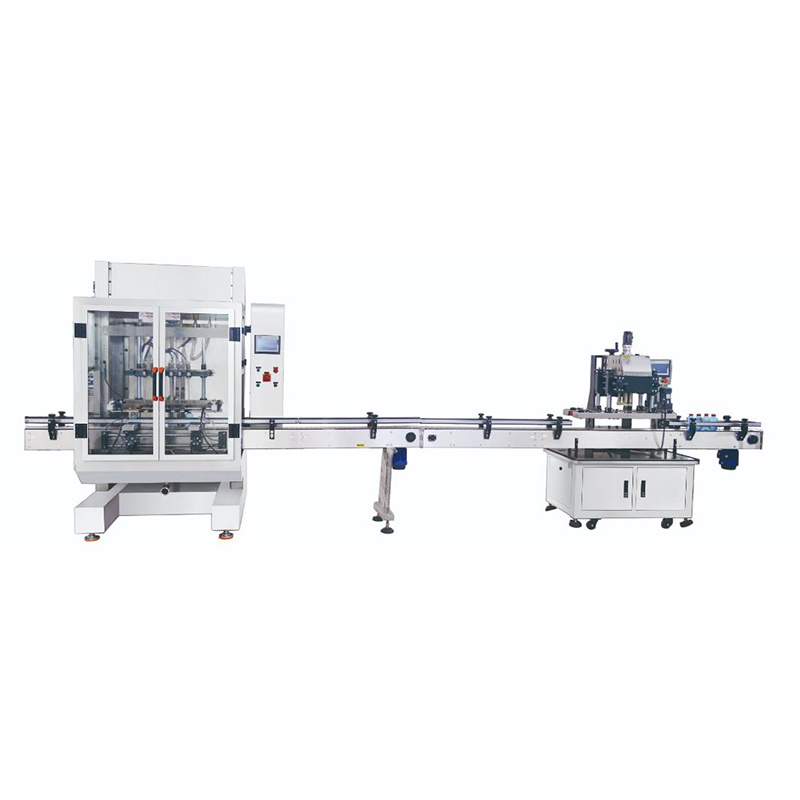

This machine is a kind of high-tech filling equipment which is programmableby microcomputer(PLC), photoelectric sensing, pneumatic execution in one high-tech filling equipment. This model is specially used for food, such as:liquor,soy sauce, vinegar, condiments, vegetable oil, syrup, mineral water and othere dible liquids and pesticide chemical liquid filling. Filling accuracy, no bubbles, no leakage.Suitable for filling50-500 ml100-1000ML 500-5000ML bottles(including guide bottles)Suitable for filling different types of containers, it can switch filling specifications in a tew minutes, with short filling cycle and high production capacity. No need to add spare parts to replace the filling specifications, just to make adjustments can be completed. Users can choose the filling volume according to their own production capacity to determine the number of filling heads, touch-type operation color screen can display the production status,operating procedures, filling methods, etc.The screen is intuitive, simple operation, easy maintenance. Each filling head is equipped with a bottle-necksal' ine desisgrigoes-" a " lraignt-alina m wainod of groupin bottles- in and bottles-out to expand the filling function. Containers of various shapes can be filled effectively in this equipment. The international advanced gas filling valve is selected to ensure no leakage or drooling in the filling process. The powerful PLC software supports the ideal filling operation and man-machine interface are completed on the touch screen.Filling uses fixed runner parameters to control the filling time to achieve different metering filling. The precise time for pneumatic valve filling can be set to0.01 seconds, which can enable the measurement accuracy to be controlled within +1% error range, reduce unnecessary material loss, and improve user economic efficiency. The metering of each filling head can be individually adjusted to achieve consistent filling metering. The machine has set the bottle entry technology program, and no bottle or no counting is not filled The filling is only started when the number of bottles recorded by the counter matches the set number of filled bottles. The amount of filling can be adjusted to the required amount of filling, and then fine-tuning, you can get the ideal tilling measurement accuracy.Note: Filling range and speed can be designed according to user needs to different filling heads.new)
|
Model
|
ZJ-GZL-6L
|
ZJ-GZL-8L
|
ZJ-GZL-10L
|
ZJ-GZL-12L
|
|
Filling range
|
50~1000ml
|
50~1000ml
|
50~1000ml
|
50~1000ml
|
|
Filling Speed
|
<30bottles/min(Baseon100~500ml)
|
<40bottles/min(Baseon100~500ml)
|
<50bottles/min(Baseon100~500ml)
|
<60bottles/min(Baseon100~500ml)
|
|
Measurement accuracy
|
±1%
|
±1%
|
±1%
|
±1%
|
|
Power
|
1kw.220V
|
1.2kw.220V
|
1.2kw.220V
|
1.5kw.220V
|
|
Workingair pressure
|
6~7kg/cm2
|
6~7kg/cm2
|
6~7kg/cm2
|
6~7kg/cm2
|
|
Gas consumption
|
0.5-0.7m3/min
|
0.5-0.8m3/min
|
0.6-0.9m3/min
|
0.8-1m3/min
|
|
Weight
|
450kg
|
500kg
|
550kg
|
600kg
|
