Quick Details
-
Light Source:
-
LED
-
Lifespan (hours):
-
100000
-
Input Voltage(V):
-
AC220V
-
Lamp Luminous Flux(lm):
-
Type B:2000cd~100000cd
-
Lamp Luminous Efficiency(lm/w):
-
1
-
CRI (Ra):
-
1
-
Beam Angle(°):
-
90 Degree
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
CDT
-
Products name:
-
High Intensity Aircraft Warning Light for Overhead Powerline
-
Operating Voltage:
-
AC90-260V
-
Power consumption:
-
≤100W
-
Flashing frequency:
-
40~60times/min
-
Life span:
-
>100,000 hours
-
Emitting color:
-
White
-
Ingress protection:
-
IP65
-
Lightning protection level:
-
10KA
-
Operating temperature:
-
-40℃~55℃
-
Net weight:
-
8KG
Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
COOL WHITE
-
Lamp Body Material:
-
Aluminum Alloy
-
Light Source:
-
LED
-
Lifespan (hours):
-
100000
-
Input Voltage(V):
-
AC220V
-
Lamp Luminous Flux(lm):
-
Type B:2000cd~100000cd
-
Lamp Luminous Efficiency(lm/w):
-
1
-
CRI (Ra):
-
1
-
Beam Angle(°):
-
90 Degree
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
CDT
-
Products name:
-
High Intensity Aircraft Warning Light for Overhead Powerline
-
Operating Voltage:
-
AC90-260V
-
Power consumption:
-
≤100W
-
Flashing frequency:
-
40~60times/min
-
Life span:
-
>100,000 hours
-
Emitting color:
-
White
-
Ingress protection:
-
IP65
-
Lightning protection level:
-
10KA
-
Operating temperature:
-
-40℃~55℃
-
Net weight:
-
8KG
ICAO High Voltage Towers Obstruction Light White LED 200000cd High Intensity Aircraft Warning Light for Overhead Powerline
Hunan Chendong Technology Co.,LTD (shorted as CDT )is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established. As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp + 86-1392949360 ,we will discussed about the details,thanks

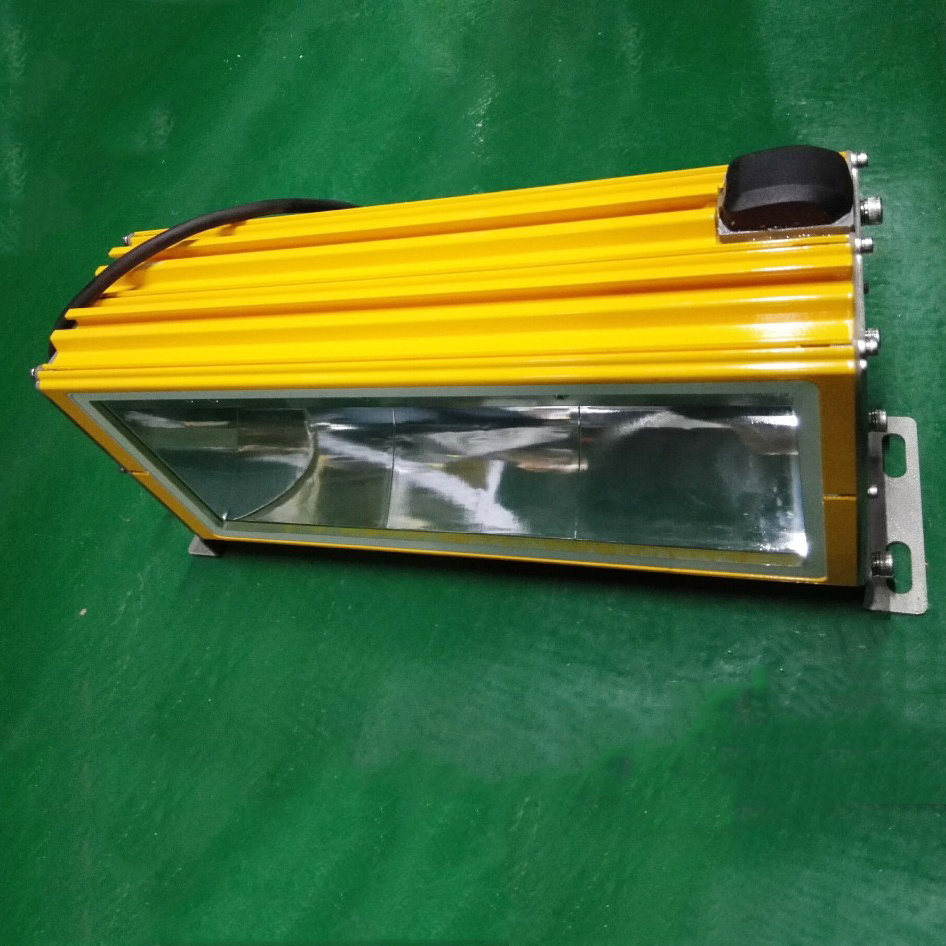

- Product Picture
- Parameter & Diagram
| Item | Parameter |
|
| Model | CM-17-B | |
| Operating Voltage | AC90-260V | |
| Power consumption | ≤100W | |
| Flashing frequency | 40~60times/min | |
| Light intensity | Background Luminance | |
| Light Intensity | ≤50Lux 2000cd(±25%) | |
| 50~500Lux 20000cd(±25%) | ||
| >500Lux 200000cd(±25%) | ||
| Life span | >100,000 hours | |
| Emitting color | White | |
| Beam angle | 90° horizontal | |
| 3-7° vertical beam spread | ||
| Method of synchronization | Same power supply voltage signal mode | |
| Overall size(mm) | 470mm×204mm×134mm | |
| Installation size(mm) | 445mm×70mm×4-M10 | |
| Ingress protection | IP65 | |
| Lightning protection level | 10KA | |
| Operating temperature | -40℃~55℃ | |
| Net weight | 8KG | |
| Wind load | 80m/sec. |
- Specification
- The house of the light adopts Aluminium alloy, Lens of Tempered glass; the structure is high strength, resistance to corrosion
- Use the optical design of parabolic reflector, the visual range further and angle more accurate.
- Light source adopts high quality LED which are light efficiency 100LM/W, low power consumption, long lifespan up to flash 100,000 Hrs
- Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by controller
- Same power supply voltage with synchronous signal, integrate in power supply cable, emliminate the damage by error installation caused.
- Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
- The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.
- Integral structure, protection lever of IP65.
- Ignitability rate UL-94V0, fit for all kinds of industrial situation .
- GPS synchronizing function is available.
