Quick Details
-
Warranty:
-
6 months
-
Brand Name:
-
Feiyinsi
-
Model Number:
-
SW512-30B-2900
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
5w
-
Cable Length:
-
300mm
-
Outlet Size:
-
6.5mm
-
Power:
-
2A
-
Flow rate:
-
1.2L/M
-
Basic Materials:
-
PC,EPDM
-
Characteristic:
-
dc brushless motor
-
certificate:
-
ISO9001:2015,CE,Rohs
-
Working way:
-
Continuous or intermittent
-
Standard or Nonstandard:
-
Standard,customized
-
self-priming height and lift:
-
more 1m self-priming height and more 2m lift
-
weight:
-
280g
-
Fuel:
-
Battery or transformer power
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
2bar
-
Voltage:
-
6V/9V/12V/24V, 6V, 9V,12V,24v dc
-
Warranty:
-
6 months
-
Brand Name:
-
Feiyinsi
-
Model Number:
-
SW512-30B-2900
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
5w
-
Cable Length:
-
300mm
-
Outlet Size:
-
6.5mm
-
Power:
-
2A
-
Flow rate:
-
1.2L/M
-
Basic Materials:
-
PC,EPDM
-
Characteristic:
-
dc brushless motor
-
certificate:
-
ISO9001:2015,CE,Rohs
-
Working way:
-
Continuous or intermittent
-
Standard or Nonstandard:
-
Standard,customized
-
self-priming height and lift:
-
more 1m self-priming height and more 2m lift
-
weight:
-
280g
-
Fuel:
-
Battery or transformer power

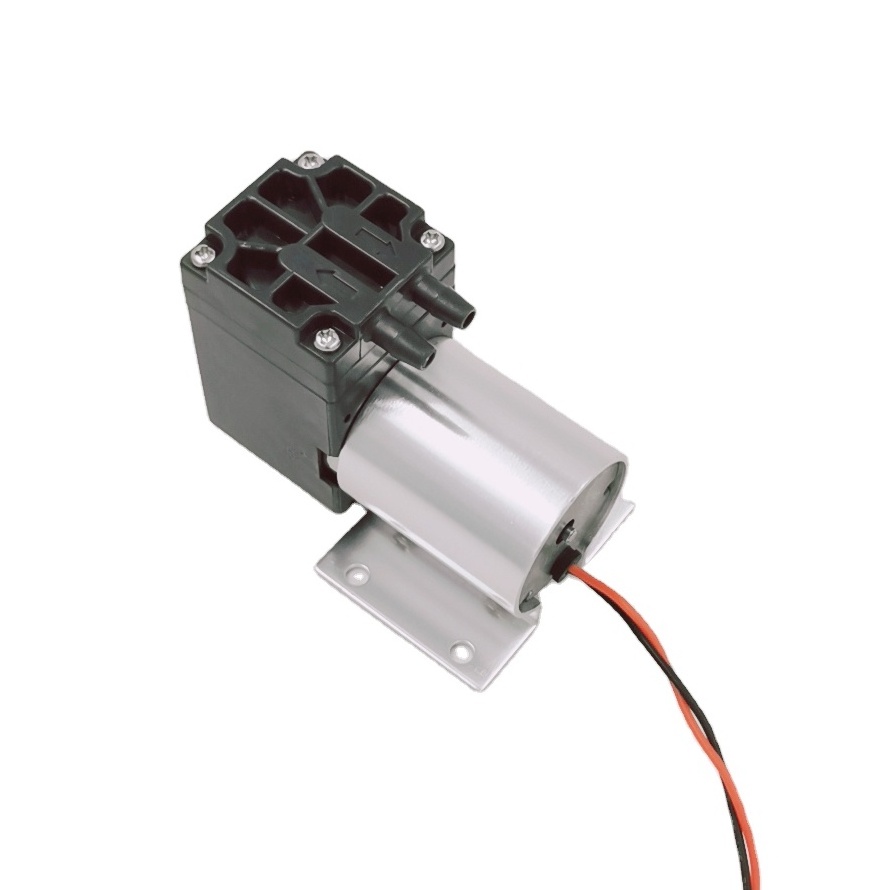

Diaphragm Brushless 12v Dc Water Pump
Low noise
Long lifetime
Highest performance
High pressure and high flow
Extreme chemical resistance
Uncontaminated flow
High level of gas tightness
Optimal solution for your application
| Model | SW512-30B-2900 |
| Size(mm) | 82*38*62 |
| Voltage(DC/V) | 6V,9V,12V,24V |
| Power(W) | 5 |
| Vacuum(Kpa) | 30 |
| Free Flow rate(L/M) for water | 1.2 |
| Self-priming height(m) | >1 |
| Lift(m) | >2 |
| Weight(G) | 280 |
| Noise level(db) | 50db in one meter |
| Lifespan(hous) | >10000hours(on and off) |
| Materials | PC and EPDM |
| Inlet diameter and outlet diameter(mm) | ID:4mm OD:6.5mm |
Remark:
Usually
our pump has 4 kinds of voltage:6V, 9V,12V and 3
V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
Unlabeled tolerance is ± 0.1mm.
Pump Size:82*38*62mm
Pump Weight:280g;
Outlet:OD 6.5mm, silicone hose suggestion:ID 4mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is stable and high.
The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.
Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.
Its flow for water can deliver up to 0.35 L/min and 1.2L/M.
Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
You can choose pump according to our model.
In addition,it can be mounted in any position.
1.Electronic products,agriculture,finishing,light industry products
2.Analytic-al instruments
3.Chemical and production engineering
4.Various ancillary equipment
We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others. The fastest, but most expensive.
You can choose according to your needs.
