Quick Details
-
Model Number:
-
DKS0401A30
-
Place of Origin:
-
China
-
Product name:
-
4x1 DVI KVM Switcher
-
Input:
-
4*DVI
-
Output:
-
1*DVI
-
Switch Mode:
-
front panel buttons, IR signals, keyboard hot keys, RS232
-
Features:
-
auto switching
-
Function:
-
extra standard USB 2.0 hub
-
Material:
-
Metal
-
Support:
-
use keyboard without any delay
-
Warranty:
-
1 Year
Quick Details
-
Monitor Connections:
-
1 Ports
-
Resolution:
-
3840x2160@30Hz
-
Brand Name:
-
TESmart
-
Model Number:
-
DKS0401A30
-
Place of Origin:
-
China
-
Product name:
-
4x1 DVI KVM Switcher
-
Input:
-
4*DVI
-
Output:
-
1*DVI
-
Switch Mode:
-
front panel buttons, IR signals, keyboard hot keys, RS232
-
Features:
-
auto switching
-
Function:
-
extra standard USB 2.0 hub
-
Material:
-
Metal
-
Support:
-
use keyboard without any delay
-
Warranty:
-
1 Year
Products Description

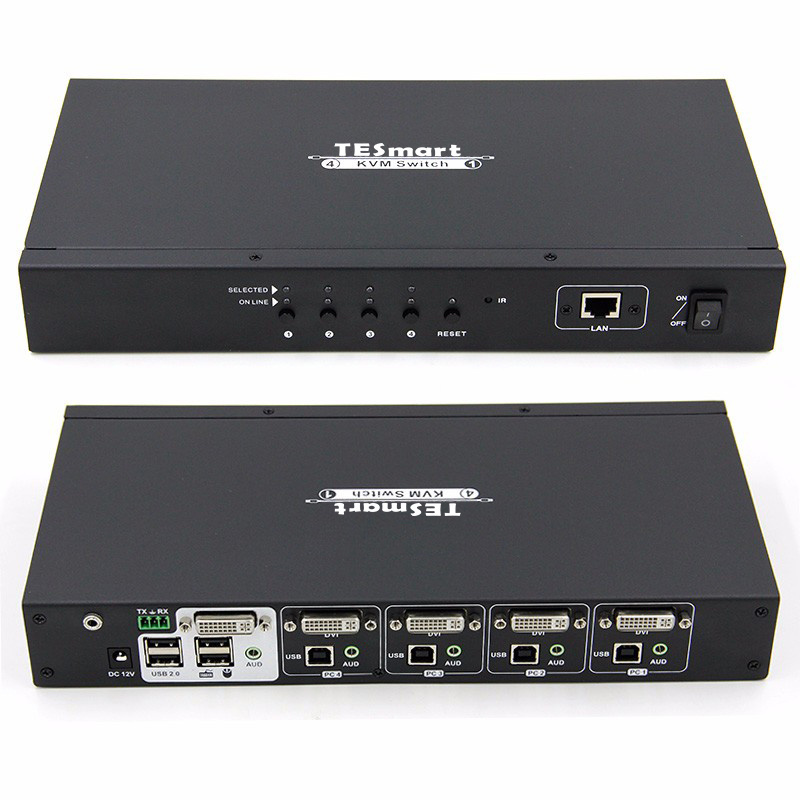

This 4x1 DVI KVM Switcher provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any DVI-D computers using one DVI-D display.
Features:
⭐Using only 1 set of keyboard, mouse and monitor to control 4 host devices.
⭐Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system.
⭐Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.
⭐Support auto switching to monitor computers in a specified time interval.
⭐Support hotkey commands and mouse gesture to switch inputs.
⭐Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch.
⭐Available to use keyboard without any delay after switch host devices.
⭐Support resolution up to 3840*2160@30Hz.
⭐With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.
⭐Supports HDMI sources and displays with the use of HDMI-to-DVI adapters.
Packing list
1 * 4x1 DVI KVM Switcher
1 * DC 12V Power Adapter
1 * IR Remote Control
2 * Rack-ears
1 * 3 Pins Jack (For RS232)
1 * Quick-Start Guide
Specification
|
DKS0401A30
|
4x1 DVI KVM Switcher
|
|
||
|
Functionality:
|
|
|
||
|
Auto Scan
|
Yes
|
|
||
|
Port selection
|
Front panel buttons
|
Yes
|
||
|
|
Keyboard hotkeys
|
Yes
|
||
|
|
IR remote control
|
Yes
|
||
|
|
Console commands
|
RS232 / IP
|
||
|
Technical:
|
|
|
||
|
Resolution up
|
3840x2160@30Hz (Single Link)
|
|
||
|
Input EDID emulator
|
Yes
|
|
||
|
Auto to get EDID
|
Yes
|
|
||
|
Data Rate
|
10.2 Gbps
|
|
||
|
Auto scan interval
|
1~250 Seconds
|
|
||
|
Beep Sound
|
On/Off
|
|
||
|
OSD
|
No
|
|
||
|
Supported OS
|
Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system
|
|
||
|
Console ports
|
Keyboard emulation
|
1 * USB Type A
|
||
|
|
Mouse emulation
|
1 * USB Type A
|
||
|
|
USB 2.0 Hub ports
|
2 * USB Type A
|
||
|
|
Video
|
1 * DVI-D SL
|
||
|
|
Audio
|
1*AUX
|
||
|
|
RS232
|
3 Pins jack
|
||
|
|
LAN
|
1*RJ45
|
||
|
System ports
|
USB Data
|
4* USB Type B
|
||
|
|
Video
|
4 * DVI-D SL
|
||
|
|
Audio
|
4 * Aux
|
||
|
ESD protection
|
Human body model - ±8kV (Air-gap discharge)
|
|
||
|
Mechanical:
|
|
|
||
|
Chasing material
|
Metal
|
|
||
|
Product Dimensions
|
308 (L) x 139 (W) x 44.5 (H) mm
|
|
||
|
Item Weight
|
1800g
|
|
||
