Quick Details
-
Brand Name:
-
Benewake
-
Model Number:
-
TF02-Pro
-
Product name:
-
Finder Sensor Module 40m LED Rangefinder Single Point Ranging Laser
-
Function:
-
Ranging
-
Weight:
-
50g
-
Power supply:
-
1W
-
Frame rate:
-
1-1000Hz
-
Measure:
-
0.1m-40m
-
Voltage:
-
5V-12V
-
Protection level:
-
IP65
-
Accuracy:
-
±5cm(0.1~5m)
-
Distance Resolution:
-
1cm
Quick Details
-
Warranty:
-
1 year
-
Size:
-
69mmx41.5mmx26mm
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Benewake
-
Model Number:
-
TF02-Pro
-
Product name:
-
Finder Sensor Module 40m LED Rangefinder Single Point Ranging Laser
-
Function:
-
Ranging
-
Weight:
-
50g
-
Power supply:
-
1W
-
Frame rate:
-
1-1000Hz
-
Measure:
-
0.1m-40m
-
Voltage:
-
5V-12V
-
Protection level:
-
IP65
-
Accuracy:
-
±5cm(0.1~5m)
-
Distance Resolution:
-
1cm

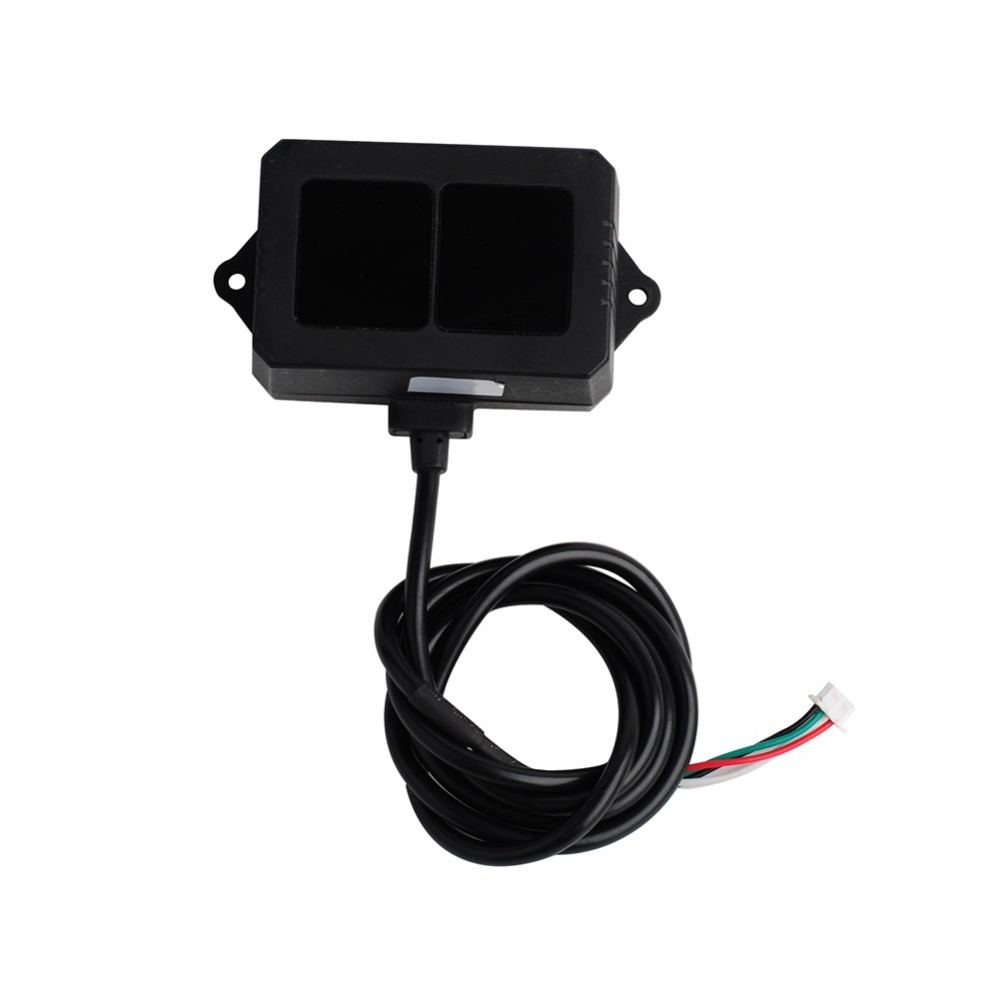

TF02 Pro TOF Lidar Range Finder Sensor Module 40m LED Rangefinder Single Point Ranging Laser
TF02-Pro as a cost-effective mid-range distance sensor, ranging performance up to 40m, based on TOF, can be widely used in UAV height control, intelligent transportation, intelligent parking, intelligent agriculture. TF02-pro, as the upgraded version, has been upgraded and optimized by the optical system and algorithm to achieve better realization in outdoor ambient, different reflectivity backgrounds and temperature.
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
Benewake
|
|
Model Number
|
TF02-Pro
|
|
Usage
|
Distance measurement
|
|
Theory
|
ToF
|
|
Output
|
|
|
Description
|
Benewake TF02-Pro LiDAR sensor
|
|
Amplifier Type
|
|
|
Voltage - Supply
|
5V~12V
|
|
Current - Supply
|
≤200mA
|
|
Operating Temperature
|
-20~60°C
|
|
Resolution (Bits)
|
1cm
|
|
Current - Supply (Max)
|
300mA
|
|
Frequency
|
100Hz
|
|
Size / Dimension
|
69mmx41.5mmx26mm(L*W*H)
|
|
Measuring Range
|
0.1~40m
|
|
Resolution
|
1cm
|
|
Power - Rated
|
≤1W
|
|
Application
|
outdoor parking lot guidance system
|
