High quality and high productivity Stone Granite Wire Saw Machine Cutting For Underwater Concrete Cutting

High quality and high productivity Stone Granite Wire Saw Machine Cutting For Underwater Concrete Cutting

FOB Reference Price: Get Latest Price

≥1 Sets

US $6000

≥3 Sets

US $5800

≥5 Sets

US $5600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Positioning Accuracy (mm):: 0.2 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.2 mm

Spindle Motor Power(kW):: 5.5

Place of Origin:: Shandong, China

Brand Name:: Firmcnc

Voltage:: 220V/380V

Dimension(L*W*H):: 3200*2120*2150mm

Power (kW):: 5

Weight (KG):: 1300

Product name:: Stone CNC router machine

Control system:: Nc-studio/Mach3/DSP Control System

Spindle:: 5.5kw Water Cooling Spindle

Function:: Cutting and engraving stone

Working area:: 1300x2500mm

Software:: Artcam/Type3

Drive System:: Stepper Drive

Guide rail:: Taiwan Hiwin Square Guide Rail

Working Voltage:: AC220V/AC380/50HZ/60HZ

Inverter:: Fuling Inverter

Quick Details

Working Table Size(mm):: 1300×2500

Machine Type:: CNC Router

Range of Spindle Speed(r.p.m):: 0 - 24000 rpm

Positioning Accuracy (mm):: 0.2 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.2 mm

Spindle Motor Power(kW):: 5.5

Place of Origin:: Shandong, China

Brand Name:: Firmcnc

Voltage:: 220V/380V

Dimension(L*W*H):: 3200*2120*2150mm

Power (kW):: 5

Weight (KG):: 1300

Product name:: Stone CNC router machine

Control system:: Nc-studio/Mach3/DSP Control System

Spindle:: 5.5kw Water Cooling Spindle

Function:: Cutting and engraving stone

Working area:: 1300x2500mm

Software:: Artcam/Type3

Drive System:: Stepper Drive

Guide rail:: Taiwan Hiwin Square Guide Rail

Working Voltage:: AC220V/AC380/50HZ/60HZ

Inverter:: Fuling Inverter

High quality and high productivity Stone Granite Wire Saw Machine Cutting For Underwater Concrete Cutting

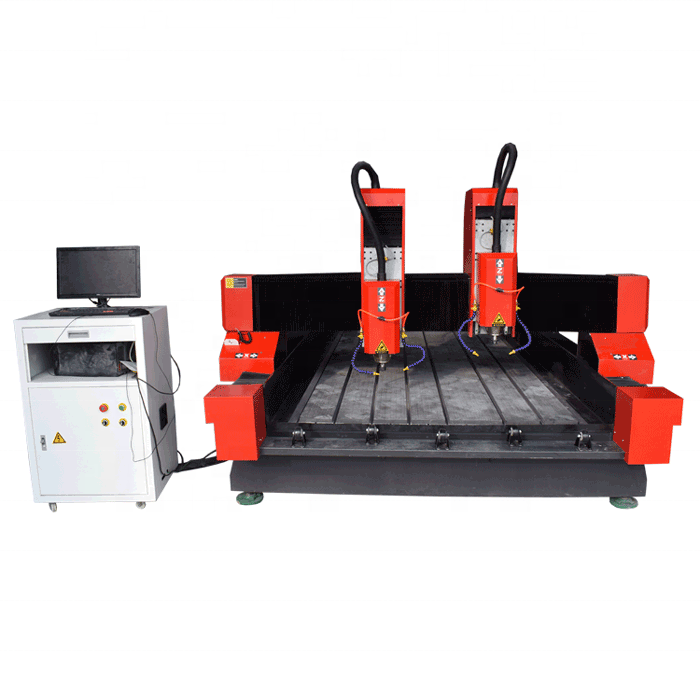

Product Description

Standard model have FM1325 (2500*1300mm); FM1530, FM2030, FM2040 etc, support customized.

Stone engraving machine main feature:

Stone engraving machine main feature:

# With heavy welded thick bed structure, with water tank table, professional heavy structure for stone engraving

# Taiwan HIWIN square guide rails 25MM, helical rack transmission for x and y axis, ball screw for Z axis

# Stepper motor and driver,can be optional easy servo motor and driver, also pure servo motor and driver

Stone engraving machine main feature:

# 5.5KW water cooling spindle, bigger power, engraving speed faster

# Aluminum T-slot table with PVC, with water tank table

# DSP control system or Ncstudio control system, can be also optional other better control system

# Auto oil lubricating system to lubricate the guide rails

Stone engraving machine main feature:

# Stainless steel water slot cooling system, ensuring the tools get the adequate cooling, prolong the tools life time, getting the
more better engraving effect.

# Continuing working after the break point/power failure, lower the rejection rate.

# Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.

Specification

Model	FM1325	FM1530	FM2030	FM2040
Working area	1300 x 2500mm	1500 x 3000mm	2000 x 3000mm	2000 x 4000mm
Control system	NCstudio / DSP
Spindle power	3.5KW / 5.5KW / 7.5KW
Rail guide	Y. Z-axis 25 rail(Y-axis dual track),X-axis 30 rail
Motor and drivers	Leadshine stepper motor and drivers ( Servo motor optioanl)
Table	T-slot table add water tank
Inverter	5.5KW full power Fuling inverter
MAX. Traveling Speed	≥40000mm/min
MAX. Working Speed	≥20000mm/min
Software	Artcam software
Working voltage	AC380V/3P/50Hz
