Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3400*1100*1600mm
-
Weight (KG):
-
1400
-
Power (kW):
-
7.5KW
-
Product name:
-
wood chipper blade sharpening machine
-
Key words:
-
blade sharpening machine
-
Application:
-
straight knife blade and cutter grinding
-
Precision:
-
0.01-0.02mm
-
Other name:
-
blade grinding machine
-
Speed:
-
2800rpm
-
Function:
-
sharpening or grinding
-
Power(W):
-
7.5KW
-
Max. Grinding Length:
-
1500mm
-
Max. Grinding Diameter:
-
300mm
-
Certification:
-
CE Certification
Quick Details
-
Wheel Size(mm):
-
204
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WEHO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3400*1100*1600mm
-
Weight (KG):
-
1400
-
Power (kW):
-
7.5KW
-
Product name:
-
wood chipper blade sharpening machine
-
Key words:
-
blade sharpening machine
-
Application:
-
straight knife blade and cutter grinding
-
Precision:
-
0.01-0.02mm
-
Other name:
-
blade grinding machine
-
Speed:
-
2800rpm
-
Function:
-
sharpening or grinding
-
Power(W):
-
7.5KW
-
Max. Grinding Length:
-
1500mm
-
Max. Grinding Diameter:
-
300mm
-
Certification:
-
CE Certification
Products Display

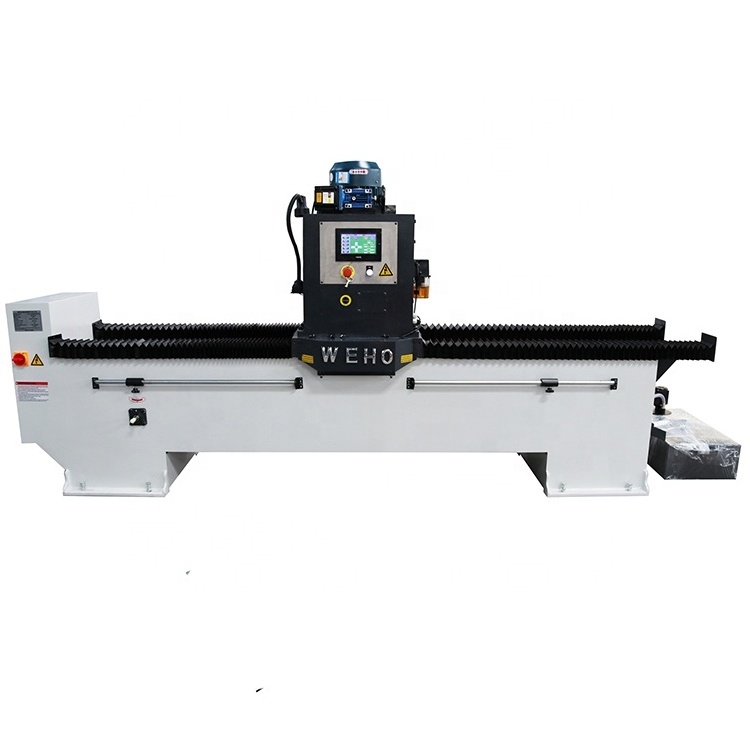

Wood chipper blade sharpening machine
Available with grinding lengths ranging from 1500 mm to 3100 mm, or longer for special grinding purposes.
Grinding wheel quick up and down approach, and slow down approach.
Product Paramenters
|
Wood chipper blade sharpening machine
|
|
|
|
Model
|
MF2515AC/MF2015AB
|
|
|
Precision
|
0.01-0.02mm
|
|
|
Main spindle power
|
10HP
|
|
|
Speed
|
2800rpm
|
|
|
Max. Grinding Diameter
|
300mm
|
|
|
Max. Grinding Length
|
1500mm
|
|
|
Weight
|
1400KG
|
|
|
Grinding wheel dimension
|
205*115*145mm
|
|
|
Cutter rest adjustable angle
|
0-90°
|
|
|
Wheel horizontal moving speed
|
0-60Hz
|
|
|
Wheel head rotation speed
|
1440r/min
|
|
|
Feeding electric motor power
|
0.75kw
|
|
|
Water pump power
|
90w
|
|
|
Working table size
|
1500*200mm
|
|
|
Max. distance of wheel head horizontal lifting
|
200mm
|
|
|
Overall size
|
3400x1100x1600mm
|
|
Detailed Images
Wood chipper blade sharpening machine
It features a heavy-duty reinforced machine base which gives the maximum stability. PLC controls the carriage movement during the various stages of the working cycle.
Wood chipper blade sharpening machine
Suitable for a broad range of industrial straight knives, such as crusher knife blade, chipper knives, granulator blades, veneer knives, guillotine blades and paper knives. Rotating magnetic chuck from 0 to 90 (Polarity 20 mm)
Wood chipper blade sharpening machine
Grinding motor 7.5 kW (7HP).Variable carriage speed from 1 to 30 m/min with carriage run adjustment
Wood chipper blade sharpening machine
Automatic grinding wheel downfeed.
Programmable work cycles: roughing, finishing, spark-out;
Separate coolant collection tank fitted with 90W motor pump.
Wood chipper blade sharpening machine
35mm Linear guide rail made in Taiwan Hiwin, with sliding block , the grinding head moves more stable and precise.
Wood chipper blade sharpening machine
Mass production for the heavy duty knife grinding machines
Our Factory
Heavy duty automatic crusher blade sharpening machine
Heavy duty crusher automatic blade sharpening machine
Grinding knife blades
Packing & Delivery
Related Products
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Our Advantages
FAQ
How to buy
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
