- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HC
-
Voltage:
-
200-240V; 50/60HZ; 32A
-
Dimensions(L*W*H):
-
4500 mm * 2200 mm * 1500 mm
-
Weight:
-
1500 KG
-
Marketing Type:
-
hot sale product
-
Model:
-
MC uv-2513 flatbed printer
-
printhead:
-
Rioch Gen5/6
-
head quality:
-
2-12 pcs
-
printing resolution:
-
720*600dpi/720*900dpi/720*1200dpi
-
Ink Color:
-
CMYK+LM+LC+W+V
-
ink tank:
-
3500ml per color
-
ink supply mode:
-
negative pressure continous supply
-
ink curing:
-
UV curing
Quick Details
-
Print Dimension:
-
2500mm*1300mm, A1, A3, 60*90cm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HC
-
Voltage:
-
200-240V; 50/60HZ; 32A
-
Dimensions(L*W*H):
-
4500 mm * 2200 mm * 1500 mm
-
Weight:
-
1500 KG
-
Marketing Type:
-
hot sale product
-
Model:
-
MC uv-2513 flatbed printer
-
printhead:
-
Rioch Gen5/6
-
head quality:
-
2-12 pcs
-
printing resolution:
-
720*600dpi/720*900dpi/720*1200dpi
-
Ink Color:
-
CMYK+LM+LC+W+V
-
ink tank:
-
3500ml per color
-
ink supply mode:
-
negative pressure continous supply
-
ink curing:
-
UV curing
Product Description

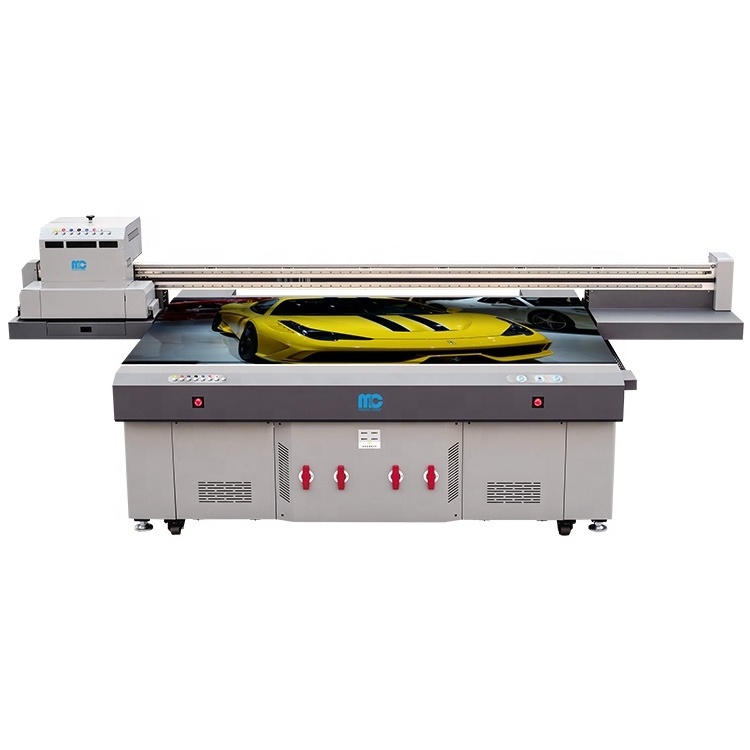

UV2513 Flatbed Printer
UV-2513 is a high quality and widely used UV flatbed printer in all kinds of printing field.
It's equipped with high quality Gen5 print heads, water cooling system and imported low noise rail guide for high quality printing and pleasant using experience for customers.
It's equipped with high quality Gen5 print heads, water cooling system and imported low noise rail guide for high quality printing and pleasant using experience for customers.
Product Presentation
|
Model
|
|
UV-2513
|
|
|
Print Head
|
|
Ricoh Gen5
|
|
|
Print Head Number
|
|
2-8 heads
|
|
|
Print resolution
|
|
720*600dpi,720*900dpi,720*1080dpi,720*1440dpi
|
|
|
Print Width
|
|
2500×1300mm
|
|
|
Print Speed
|
3 pass
|
17 sqm/h
|
|
|
|
4 pass
|
15 sqm/h
|
|
|
|
6 pass
|
12 sqm/h
|
|
|
Ink
|
Ink Curing Type
|
LED curing
|
|
|
|
Color
|
C+M+Y+K +Lc +Lm +W + Vamish(support double white)
|
|
|
|
Ink Tank Volume
|
3000ml tank for each color
|
|
|
|
Supply Type
|
Positive pressure CISS
|
|
|
Print Media
|
Media Size
|
2500×1300mm
|
|
|
|
Media Thickness
|
100mm
|
|
|
|
Media
|
Glass, aluminum composite, wood board, gusset plate, ceiling sheet, tiles, foam board, metal board, plastic, weaving materials,
wall paper, brick, stone etc. |
|
|
Platform
|
|
Vacuum adsorption type
|
|
|
Operating System
|
|
Win7,64bit
|
|
|
Working Environment
|
|
Temperature 20℃-28℃Humidity 40%-70%
|
|
|
Image Format
|
|
JPG/TIF/PDF/PSD etc.
|
|
|
Interface
|
|
USB 2.0
|
|
|
Rip Software
|
|
Photoprint , Onyx etc.
|
|
|
Power Supply/Rate
|
|
AC 220-240, 50HZ/60HZ, 32A/4000W
|
|
|
Machine Size
|
|
L×W×H 4500×2200×1500mm
|
|
|
Package Size
|
|
L×W×H 4650×2300×1860mm
|
|
|
Machine Net Weight/Gross Weight
|
|
1200kg/1600kg
|
|
