Quick Details
-
Voltage:
-
220V,380V or customized
-
Dimension(L*W*H):
-
700*500*300mm
-
Weight:
-
20 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
maize meal making machine commercial grinding meal for maize
-
Application:
-
fine grinding for corn, beans, grains,herbal etc
-
Material:
-
Carbon Steel or Stainless Steel customized
Quick Details
-
Max. Capacity:
-
100kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QISHENG
-
Voltage:
-
220V,380V or customized
-
Dimension(L*W*H):
-
700*500*300mm
-
Weight:
-
20 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
maize meal making machine commercial grinding meal for maize
-
Application:
-
fine grinding for corn, beans, grains,herbal etc
-
Material:
-
Carbon Steel or Stainless Steel customized

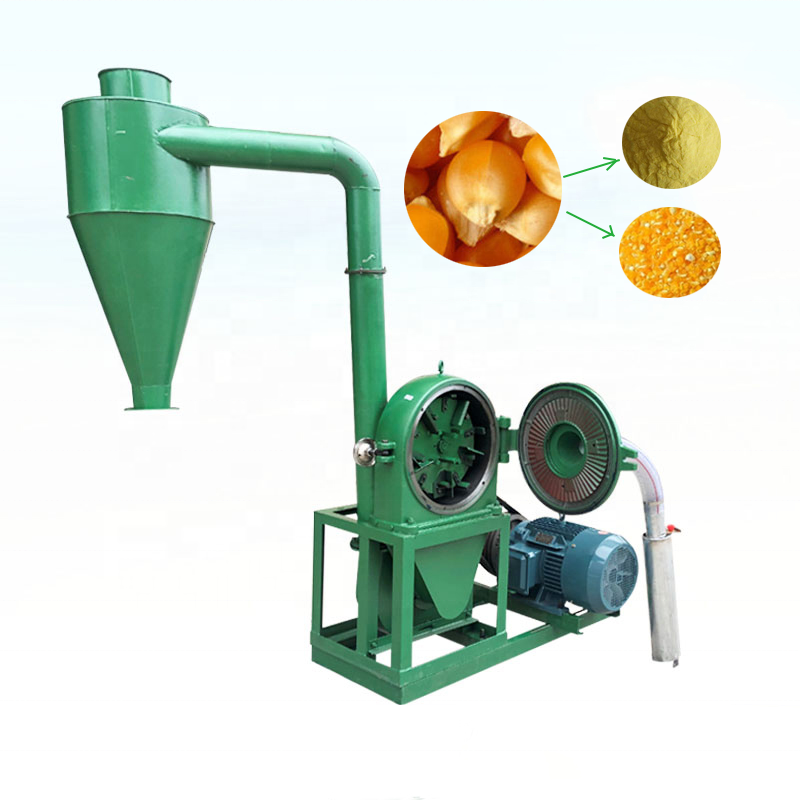

Rice/Grain/Herbs/Cereal /Flour Mill Crushing Machine maize meal making machine commercial grinding meal for maize
Product Description
Working principle：
The claw crusher is mainly composed of six parts: upper body, cover, rotor assembly, screen, feeding device, frame, etc. The body and rotor assembly form a crushing chamber together. The main working parts of the rotor assembly chamber are the crushing of materials in the crushing chamber. When the material enters the crushing chamber, it is quickly broken into fine powder and slurry under the action of the broken blow and rubbing of the round teeth and flat teeth, and is discharged through the sieve through the outlet under the action of centrifugal force and air flow.
The advantage of grain crusher machine:
1)This grain machine is suitable for grinding corn, beans, grains and wheat and other grain materials ,can also be used for cutting,
2)grinding sweet potato,potato and other lumps and dry sweet potato straw and other crude fiber .
3)grain crusher is an ideal feed processing equipment in farms,and an good helper for people to gain wealth.
4)This grain machine owns good adaptability, and is capable of grinding, sorghum, maize straw, peanuts, etc.
5)It can also be used for potato beating. Maintenance is convenient.
7)It is easy to operate, no need of fixed foundation, facilitates flow homework.
8)What's more, it has high efficiency,less consumption and little noise.
Application range:
Tooth claw crusher, with automatic powder extraction function. This machine has a wide range of processing. It can crush corn, wheat, beans, coarse grains, straw, vines, dried and fresh potatoes; It can also crush gypsum, lead powder, slippery powder, rare earth, chemical, clay, coal and other low-hardness minerals, as well as a variety of traditional Chinese medicine.
Parameter of claw grain crusher
|
Model
|
QS-160
|
QS-200
|
QS-280
|
QS-300
|
QS-320
|
QS-360
|
|||||
|
Motor(kw)
|
1.5-2.2
|
1.5-2.2
|
2.2-3
|
3-5.5
|
5.5-7.5k
|
7.5-11
|
|||||
|
Power supply(v)
|
220
|
220
|
220
|
220,380
|
380
|
380
|
|||||
|
Motor speed(r/min)
|
2800
|
2800
|
2800
|
2800
|
1400
|
1400
|
|||||
|
Capacity
(kg/h)
|
50-100
|
100-150
|
150-300
|
200-350
|
300-500
|
500-1000
|
|||||
|
Overall Size(mm)
|
700*500*300
|
400*550*550
|
800*650*300
|
900*700*300
|
1100*550*400
|
1150*580*450
|
|||||
|
Weight(kg)
|
20
|
35
|
50
|
60
|
110
|
150
|
|||||
|
Remarks
|
Voltage can be customized .The above data are for reference only, different materials different screen mesh size the capacity is different,Please refer to the actual situation.
|
|
|
|
|
|
|||||
Packing & Delivery
Packaging: 1) Standard wooden case packing, nude packing
2) As require your requirements.
Shipping: 1) Professional goods shipping forklift.
2) Port:Qingdao.
Delivery: within 7-30 days after receiving the payment.
