Quick Details
-
Standard or Nonstandard:
-
Nonstandard
-
Material:
-
Stainless steel
-
Brand Name:
-
Colossus
-
Place of Origin:
-
Liaoning, China
-
Max allowable shaft diameter:
-
300mm
-
Max rated torque:
-
85000N.m
-
Max allowable speed:
-
33000rpm
Quick Details
-
Warranty:
-
3 years
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Food & Beverage Shops, Other
-
Structure:
-
Disc
-
Standard or Nonstandard:
-
Nonstandard
-
Material:
-
Stainless steel
-
Brand Name:
-
Colossus
-
Place of Origin:
-
Liaoning, China
-
Max allowable shaft diameter:
-
300mm
-
Max rated torque:
-
85000N.m
-
Max allowable speed:
-
33000rpm
Product Description

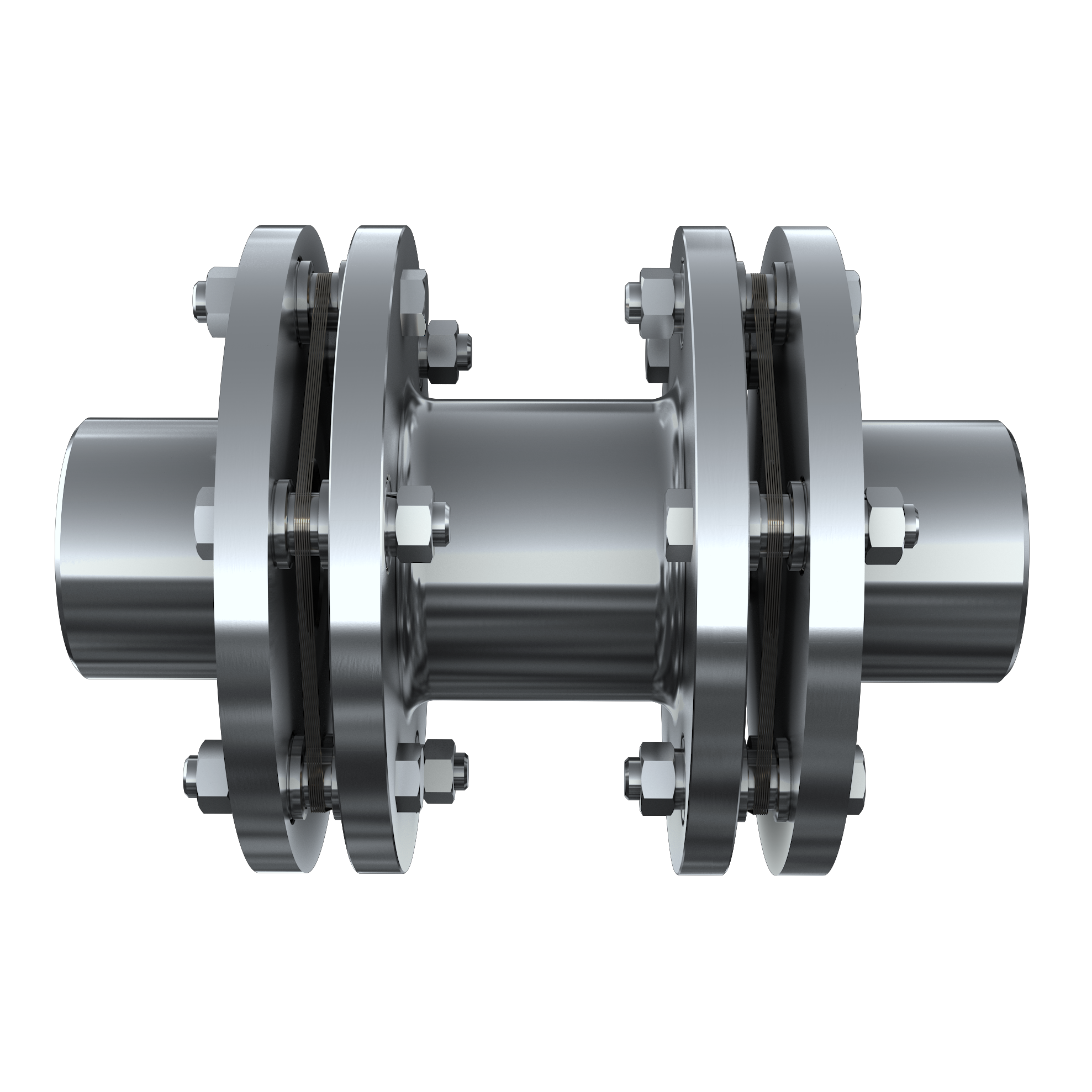

single diaphragm flexible aluminum alloy coupling for high-speed operation shaft couples
Features
The DML series coupling adopts a f ully wrapped shaft method and a unique porous diaphragm component. As the number of holes increases, the torque that can be achieved also increases and the rigidity becomes stronger. Plays an important role in improving equipment performance, energy conservation, shock absorption, and other effects
The DML series coupling adopts a f ully wrapped shaft method and a unique porous diaphragm component. As the number of holes increases, the torque that can be achieved also increases and the rigidity becomes stronger. Plays an important role in improving equipment performance, energy conservation, shock absorption, and other effects
1.
The fully wrapped shaft method has a wide range of use, simple installation, use, and maintenance, and long service life
2.
Capable of working in harsh environments, suitable for high temperatures (below 300 ℃) or corrosive environments
.3.
Large ability to compensate for axial and angular displacement, and able to absorb and isolate vibration
4.Simple structure, safe and reliable use
5.
No noise, zero clearance, constant speed, no lubrication required
6.
The additional load acting on the connecting device is small
7.
Can fully meet the API671 standard
Operating Parameter:
|
Nominal torque
|
Max.13000N · m
|
|
Speed
|
Max.15000r/min
|
|
Shaft diameter
|
Max.320mm
|
|
Allowable compensation value angular degree
|
Max. 1°
|
|
Axial compensation
|
Max. ± 5mm
|
|
Operating temperature range
|
≤ 300 ℃
|
Materials:
|
Half axle joint
|
40Cr forging, 2Cr13 forging
|
|
Intermediate section
|
40Cr forging, 2Cr13 forging
|
|
Diaphragm Assembly
|
304+40Cr、304+2Cr13
|
|
Compensation pad
|
40Cr、2Cr13
|
|
Washer
|
65Mn
|
|
Screw
|
35CrMo、2Cr13、40Cr
|
|
Surface rust prevention process
|
Bluing
|
Specification
|
Model
|
DML/DF
|
DG
|
GL
|
T
|
|
Nominal torque
|
40N.m~6300N.m
|
100N.m~10000N.m
|
1.25KN.m~450KN.m
|
TCL:10KN.m~100KN.m
T:1.6KN.m~3.15KN.m
|
|
Allowable compensation amount
|
Axial1.5mm~7.2mm
Angular0.5
|
Axial1mm~5mm
Angular0.7°
|
Axial1.5mm~6mm
Angular0.5°~0.7°
|
Axial:1.5~6mm
Angular:0.5°~0.7°
|
|
Allowable speed
|
2000rpm~4000rpm
|
3600rpm~7000rpm
|
6200rpm~33000rpm
|
500rpm~3000rpm
|
CTL series
DC series
DG series
DML Series
