Quick Details
-
Brand Name:
-
Darhor
-
Keyword:
-
motorized ball valve
-
Standard or Nonstandard:
-
Standard
-
Thread:
-
G, BSP, NPT
-
Wiring:
-
CR01, CR02,CR03, CR04, CR05
-
Size:
-
DN8, DN15, DN20, DN25, DN32, DN40, DN50
-
Working pressure:
-
0-16bar
-
Seal Material:
-
EPDM
-
Ball seat:
-
PTFE
-
Order lead time:
-
7-10 days
-
Sample lead time:
-
5-7 days
Quick Details
-
Port Size:
-
1/4"~2"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DHWX
-
Brand Name:
-
Darhor
-
Keyword:
-
motorized ball valve
-
Standard or Nonstandard:
-
Standard
-
Thread:
-
G, BSP, NPT
-
Wiring:
-
CR01, CR02,CR03, CR04, CR05
-
Size:
-
DN8, DN15, DN20, DN25, DN32, DN40, DN50
-
Working pressure:
-
0-16bar
-
Seal Material:
-
EPDM
-
Ball seat:
-
PTFE
-
Order lead time:
-
7-10 days
-
Sample lead time:
-
5-7 days
Product Description

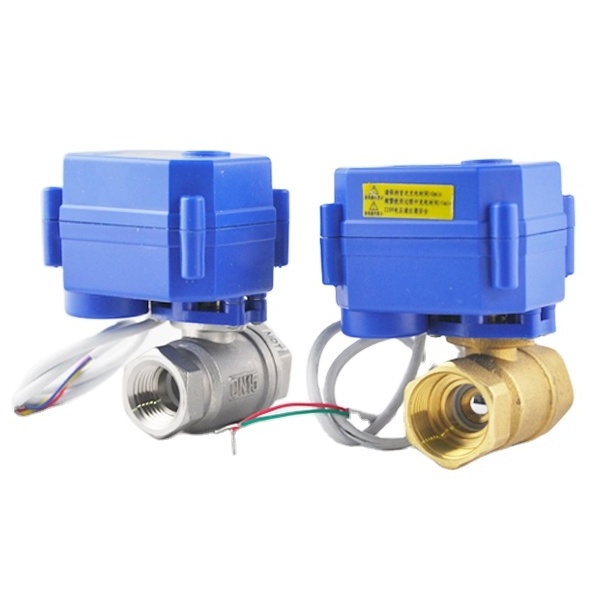

DC12V 24V stainless steel brass 3 way 2 way mini electric motorized ball valve
Features:
1. Mini Dimension suits for small equipment
2. Patented technology-floating seal structure
3. Long service life - 80,000- 100,000 circles
4. Low working current, suitable for battery driving
5. Manual override and position indicator
6. Metal gearbox and POM gear
7. High flow capability
Applications:
1.
Air-conditioning fan coin(HVAC)
2. Water treatment
3. Chemical process
4. Small equipment for automatic control
5. Replacing solenoid valve, particularly when solenoid cannot work reliably
|
Product Model
|
Rated Voltage
|
Working current
|
Output Torque
|
Opening time
|
Caliber adapter
|
|
DHWX-15Q
|
DC3-6V
DC12V
AC/DC9-24V
AC220V
AC85-265V
|
Max100mA
(CR04 except Max150mA)
|
Max1.5NM
|
<3s
|
DN8-DN20
|
|
DHWX-15N
|
|
|
Max2.0NM
|
<5s
|
DN8-DN20
|
|
Working pressure
|
Power rate
|
Medium temperature
|
Control Mode
|
IP Grade
|
Special function
|
|
Max1.0Mpa
|
<3W
|
0-90℃
|
CR01 CR02 CR02+ CR03 CR03A CR04 CR05
|
IP65
|
CR01 CR02 CR03 CR04(with singal feedback)
|
Certifications
Our Company
Each Darhor Valve pass 10 testings to ensure high quality!
Valve testing: Coil testing:
high pressure test low pressure test
leak detection water hammer test lifecycle test
resistance test current test
power test temperature test noise test
