Quick Details
-
Model Number:
-
EP400
-
Description:
-
endless rubber conveyor belt
-
Fabric type:
-
EP400 EP300 EP500 EP200 EP250 EP150 EP100
-
Fabric:
-
EP polyester canvas
-
Tensile strength:
-
15 18 20 24 25 Mpa
-
Feature:
-
High strength, impact resistance
-
Top cover:
-
1.5 - 8 mm
-
Bottom cover:
-
1.5 - 4.5mm
-
Belt Width:
-
500 650 800 1000 1200 1400 mm
-
Standard:
-
ISO9001:2008,MA
-
Application:
-
Cement,mining
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HUAYUN
-
Model Number:
-
EP400
-
Description:
-
endless rubber conveyor belt
-
Fabric type:
-
EP400 EP300 EP500 EP200 EP250 EP150 EP100
-
Fabric:
-
EP polyester canvas
-
Tensile strength:
-
15 18 20 24 25 Mpa
-
Feature:
-
High strength, impact resistance
-
Top cover:
-
1.5 - 8 mm
-
Bottom cover:
-
1.5 - 4.5mm
-
Belt Width:
-
500 650 800 1000 1200 1400 mm
-
Standard:
-
ISO9001:2008,MA
-
Application:
-
Cement,mining

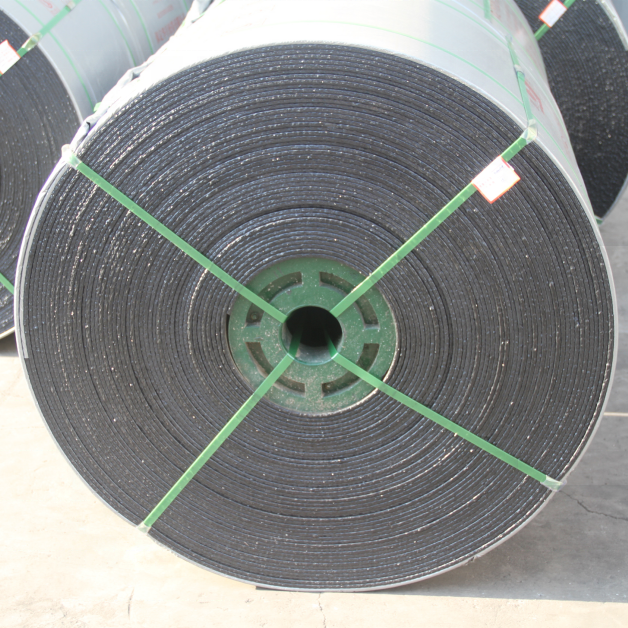

600mm belt width 18 Mpa EP400 flat belt endless rubber conveyor belt for cement plant
Polyester conveyor belt called EP conveyor belt for short, medium and long distance transportation.
1. Deatail show for EP 400 rubber conveyor belt
1) specification
| Fabric | Fabric structure | Fabric type | Fabric thickness (mm/p) | Strength (N/mm) | Cover thickness | Width | |||||||
| Warp | Weft | 2 ply | 3 ply | 4ply | 5ply | 6ply | Top cover | Bottom cover | Cut edged | Round edged | |||
| Polyester (EP) | Polyester (EP) | Polyester (EP) | EP100 | 0.85 | 200 | 300 | 400 | 500 | 600 | 1.5-8 | 0-4.5 | 400-2200 | 76-2200 |
| EP125 | 0.90 | 250 | 375 | 500 | 625 | 750 | |||||||
| EP150 | 1.00 | 300 | 450 | 600 | 750 | 900 | |||||||
| EP200 | 1.10 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| EP250 | 1.15 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| EP300 | 1.25 | 900 | 1200 | 1500 | 1800 | ||||||||
| EP400 | 1.45 | 1600 | 2000 | 2400 | |||||||||
| EP500 | 1.55 | 2000 | 2500 |
3000
|
|||||||||
2)
feature
1. High initial modulus
2. High strength
3. Low elongation
4. Impact resistance
5. Suitable for medium and long-distance
3) standard
DIN22131, EN ISO 15236, SANS1366 and AS1333
2. General product process for 18 mpa endless rubber conveyor belt
3. Quality control for endless rubber conveyor belt
1) test equ
ipment
2) ISO9001:2008
3) TUV qualified factory for endless rubber conveyor belt for cement plant
4. Well packed rubber conveyor belt and kinds of rubber conveyor belt you can choose
Packed in pvc waterproof cloth or as require.
Shipment within 7-15 working days according to the quantity.
the conveyor belt we can supply:
steel cord conveyor belt, heat resistant conveyor belt, sidewall endless conveyor belt, corrugated sidewall conveyor belt, chevron v conveyor belt, fire resistant conveyor belt, ep conveyor belt, nylon conveyor belt, etc.
5. About us - Baoding Huayun Conveyor Machinery Co., Ltd.
Five reasons to choose us:
1. the manufacturer of conveyor belts, conveyor rollers, conveyor pulleys, conveyor brackets, etc.;
2. most advanced production equipment;
3. exquisite craft with CEMA DIN standard;
4. passed the TUV, ISO9001:2008 and Safety of Approval for Mining Products;
5. high quality material purchasing channel and excellent after-sale service.
Know more information about endless rubber conveyor for cement plant, pls contact us via the following ways:
