Quick Details
-
Product name:
-
solar junction box
-
Pin Dimensions:
-
4.0mm
-
Insulation material:
-
PPE/PA
-
Test voltage:
-
8kV(50Hz,Imin)
-
Degree of protection:
-
IP68(in potting)
-
Rated Current:
-
22A/35A
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NSPV
-
Model Number:
-
PV-NEHP01
-
Product name:
-
solar junction box
-
Pin Dimensions:
-
4.0mm
-
Insulation material:
-
PPE/PA
-
Test voltage:
-
8kV(50Hz,Imin)
-
Degree of protection:
-
IP68(in potting)
-
Rated Current:
-
22A/35A

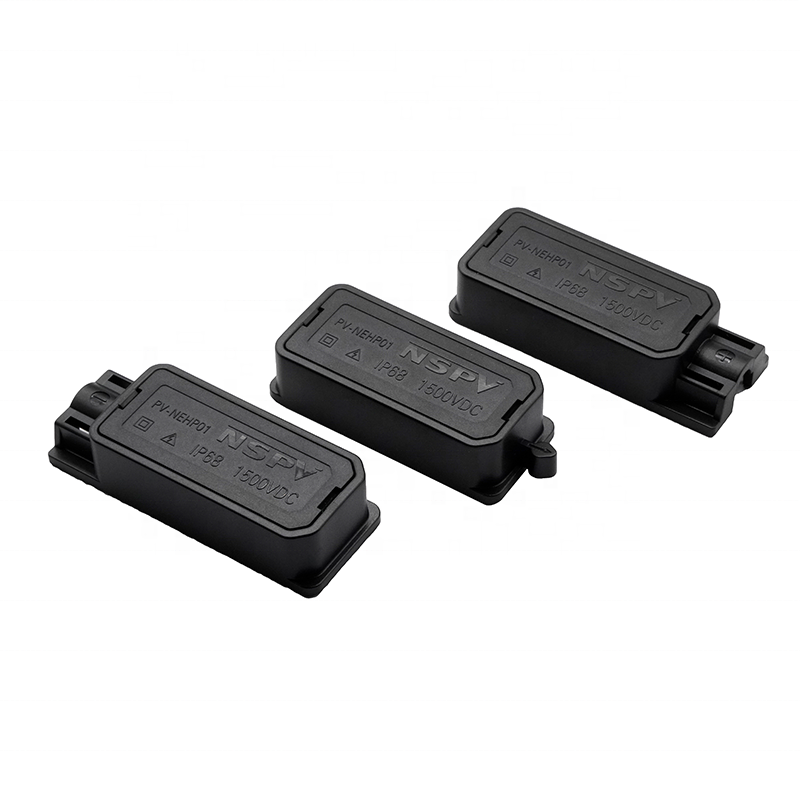

Solar Junction Box with solar cable connectors for solar modules wiring Split
|
BOX Material |
PPE/PA |
Flame Class |
UL94-V0 | ||||||
|
Rated current |
22A(With diode 30A) 35 A(With diode 50 A) |
Ambient temperature range |
-40℃…+85℃(IEC) | ||||||
|
Rated voltage |
1500VDC |
Suitable cable cross sections |
4.0mm2 | ||||||
|
Test voltage |
8kV(50Hz,Imin) |
Diode Number |
Each 1PC | ||||||
|
Typical contact resistance |
≤ 0.25mΩ |
Upper limiting temperature |
110(IEC) | ||||||
|
Contact material |
Copper,Tin plated |
Range of cable gland(mm) |
O.D.:6.0 | ||||||
|
Degree of protection |
IP68(In potting) |
Ribbons size(mm) |
Max8(W)*0.2-0.5(T) | ||||||
|
Safety degree |
II |
Connection of bus ribbons |
Soldering | ||||||
