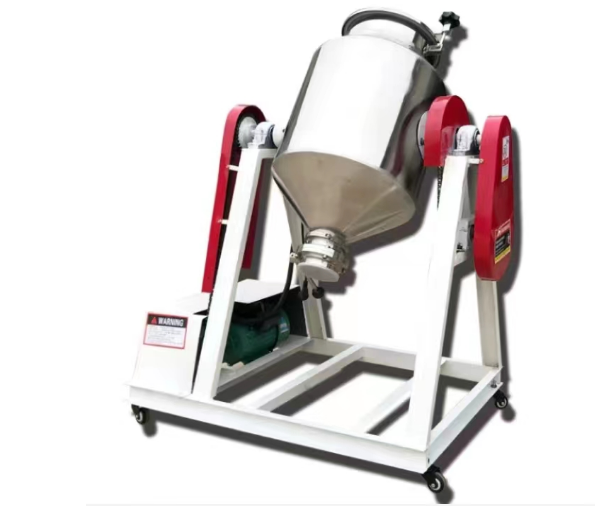

The stainless steel double cone waist drum mixer has the characteristics of simple and reasonable structure, convenient maintenance, low power, safety and reliability, high mixing uniformity, no residue, and good sealing performance. The stainless steel drum mixer is suitable for mixing powder additives and trace elements in various industries, clean and hygienic, without oxidation.
- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
600L
-
Weight (KG):
-
260 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
xingdian
-
Voltage:
-
110v.380v.220v
-
Dimension(L*W*H):
-
380*470*750
-
Power (kW):
-
3 kW
-
Marketing Type:
-
New Product 2021
-
specifications:
-
30L.60L.100L.200L.400L.600L
-
name:
-
Dry powder mixed feed mixer
-
Single maximum working load:
-
600L
-
Overall dimensions:
-
153*111*195CM
-
weight:
-
260KG
-
power:
-
3KW
-
Single mixing takes time:
-
5-10/minute
-
Mixed speed:
-
13/rpm.
-
voltage:
-
110v.220v.380v
-
Mixing uniformity:
-
Cv5%
Quick Details
-
Barrel Volume (L):
-
50
-
Max. Loading Volume (L):
-
600 L
-
Range of Spindle Speed(r.p.m):
-
0 - 33 r.p.m
-
Max. Loading Capacity:
-
600L
-
Weight (KG):
-
260 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
xingdian
-
Voltage:
-
110v.380v.220v
-
Dimension(L*W*H):
-
380*470*750
-
Power (kW):
-
3 kW
-
Marketing Type:
-
New Product 2021
-
specifications:
-
30L.60L.100L.200L.400L.600L
-
name:
-
Dry powder mixed feed mixer
-
Single maximum working load:
-
600L
-
Overall dimensions:
-
153*111*195CM
-
weight:
-
260KG
-
power:
-
3KW
-
Single mixing takes time:
-
5-10/minute
-
Mixed speed:
-
13/rpm.
-
voltage:
-
110v.220v.380v
-
Mixing uniformity:
-
Cv5%
Product Overview
Upgrade butterfly valve waist drum mixer
mixer is made of food grade stainless steel 304/316 which is healthy for person.
When the mixer running ,the drum rotates clockwise and the inner blade rotates counter clockwise forming interaction force inside the drum.There is no dead angle in the mixing process which makes the material mix quickly and fully .
When the mixer running ,the drum rotates clockwise and the inner blade rotates counter clockwise forming interaction force inside the drum.There is no dead angle in the mixing process which makes the material mix quickly and fully .
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Model
|
Type 30
|
Type 60
|
Type 100
|
Type 200
|
|||
|
Voltage
|
220V
|
220V
|
380V
|
380V
|
|||
|
Power
|
2.2KW
|
2.2KW
|
2.2KW
|
3KW
|
|||
|
weight
|
95KG
|
100KG
|
105KG
|
150KG
|
|||
|
capacity
|
30L
|
60L
|
100L
|
200L
|
|||
|
Bucket size
|
41*55CM
|
41*80CM
|
46.5*85CM
|
59*105CM
|
|||
|
Assignment style
|
Cycle job
|
|
|
|
|||
|
Mixing time
|
5-10 minutes/batch
|
|
|
|
|||
|
Size
|
102*70*128CM
|
102*70*140CM
|
107*75*146CM
|
143*110*160CM
|
|||
Packing and shipping:
Company information:
Our services:
1) Highly inspecting equipments in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
