Quick Details
-
Model Number:
-
JD2600A
-
Name:
-
focimeter
-
Certificate:
-
CE ISO
-
MODEL:
-
JD-2600A
-
Function:
-
color and touch screen, with UV pd printer
-
Monitor size:
-
7"
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RS
-
Model Number:
-
JD2600A
-
Name:
-
focimeter
-
Certificate:
-
CE ISO
-
MODEL:
-
JD-2600A
-
Function:
-
color and touch screen, with UV pd printer
-
Monitor size:
-
7"

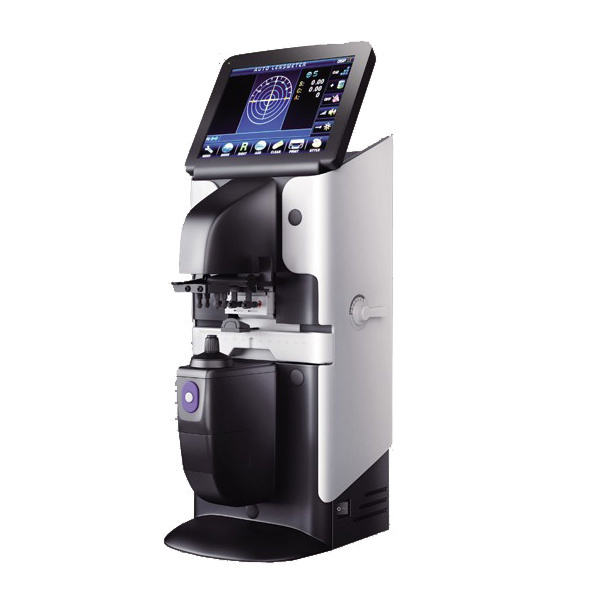

Focimeter
(JD-2600A 7" color touch tilt screen)
(JD-2600B 5.6" Color touch tilt screen)
Aluminium Case optional
JD-2600A
With UV PD printer .
PD PH ruler.
7" Tilt color screen.
Blue wavelength 420~475 transmittance
RS232 Port
Aluminium case
JD2600B
With UV PD printer .
PD PH ruler.
5.6" Tilt color screen.
Blue wavelength 420~475 transmittance
Aluminium case
Specifications:
Sphere: Measuring range -25~+25D unit0.01/0.12/0.25D steps
Cylinder: Measuring range -9.99~+9.99D unit0.01/0.12/0.25D steps
Axis: Measuring range 0° ~180° Unit1° Steps
Add: Measuring range 0~+9.99D unit0.01/0.12/0.25D
Prism: Measuring range 0~15Δ Unit0.01/0.12/0.25Δ
Cylinder +,+/-,-
Prism :X-Y, P-B
Contact lens ,:Soft/hard
Measuring mode:single , progressive , automatic recognition
PD: Measuring range 40~90mm unit0.5mm
Diameter of lens:20mm-108mm
Print: Thermal printer
Power supply: AC100∞ 120(V)/200∞ 240(V) 50/60Hz 50VA
Dimensions: 220(W)*320(D)*430(H)m∞ M
Weight: 7kg
Specifications:
|
Range of measurement |
|
|
Sphere |
0~+- 25D, 0.01/0.12/0.25D step; |
|
Cylinder |
0~ +-9.99 D 0.01/0.12/0.25D step. |
|
Axis |
0-180 ° (1 ° step) |
|
Add. |
0-9.99 D 0.01/0.12/0.25D step. |
|
Prism degree |
0-15 D 0.01/0.12/0.25D step. |
|
Measurement mode |
|
|
Cylinder |
+, +/-, - |
|
Prism |
X-Y, P-B |
|
Contact Lens |
soft/hard; |
|
Measuring mode |
Single/progressive/automatic recognition |
|
Specifications |
|
|
Diameter of lens |
20-108mm; |
|
PD |
40-90mm, 0.5mm step; |
|
Speed of measurement |
0.1s |
|
Display |
JD-2600A: 7'' TFT LCD; JD-2600B: 5.6’’ TFT LCD |
|
Printer |
Thermal Printer |
|
Weight |
5.5kg |
|
Power supply |
100-240V, 50-60HZ
|
