Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
3.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3250*2250*2000mm
-
Power (kW):
-
3
-
Weight (KG):
-
1180
-
Working area:
-
1300mm*2500mm*200mm
-
Color:
-
white(any color u want)
-
Working Voltage::
-
AC380V/50HZ
-
Drive and Motor::
-
Stepper/Servo
-
Spindle::
-
Water Cooling SpindleAC Servo motors from Germany
-
Application::
-
Cutting
-
Software::
-
Artcam
-
Spindle power::
-
2.2kw 3.0 Kw 4.5kw 6.0kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Transmission::
-
Rack and pinion
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
3.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3250*2250*2000mm
-
Power (kW):
-
3
-
Weight (KG):
-
1180
-
Working area:
-
1300mm*2500mm*200mm
-
Color:
-
white(any color u want)
-
Working Voltage::
-
AC380V/50HZ
-
Drive and Motor::
-
Stepper/Servo
-
Spindle::
-
Water Cooling SpindleAC Servo motors from Germany
-
Application::
-
Cutting
-
Software::
-
Artcam
-
Spindle power::
-
2.2kw 3.0 Kw 4.5kw 6.0kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Transmission::
-
Rack and pinion

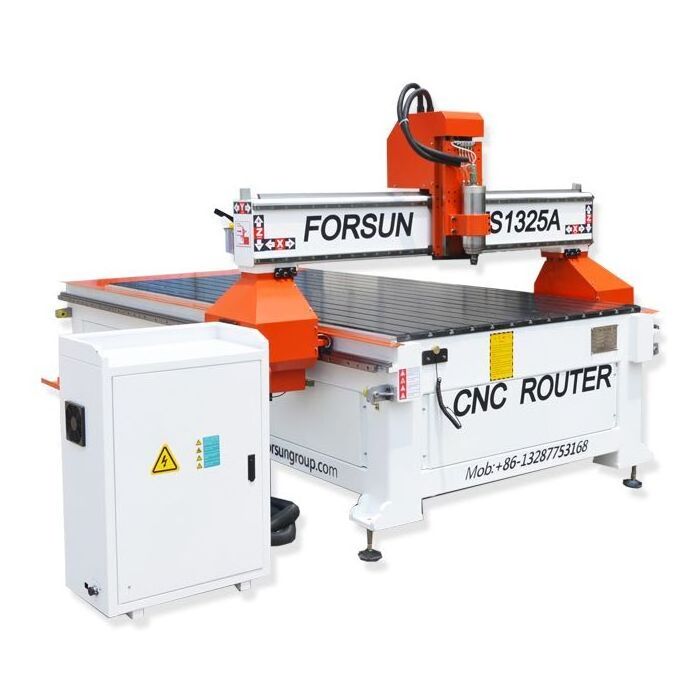

33% Discount! High Precision Multi Purpose 1325 Cnc Router Machine/Woodworking Cnc Router
What is the Feature of cnc router cutting machine?
Ø 3KW water cooling spindle
Ø 3.7kw Taiwan Delta inverter
Ø DSP or NC Studio control system
Ø Leadshine steeper motor
Ø Vacuum & T-slot working table
Ø Taiwan TBI Ball Screw,Helical Rack and Pinion
What is the Advantage of cnc router cutting machine?
♦ 3.0kw water cooling spindle with 24000r/min.
♦ NC studio Controller ;computer operation ;convenient and intuitive.
♦ Vacuum table could adsorb different size materials closely.
♦ HIWIN linear rail from Taiwan for 3 aixs, more stable, it's lifetime is 10 times longer than common rail way.
What is the technical date of the cnc cutting machine?
|
Name |
Specification |
|
Working Area(X*Y*Z) |
1300×2500*200mm |
|
Machine Structure |
Welded |
|
X Y Z Guide Rail |
Taiwan HIWIN Square Rail |
|
X Y Z Transmission |
Helical Rack and Pinion for X,Y axis TBI ball screw for Z axis |
|
Motors |
Stepper Motor (Optional Servo ) |
|
Control System |
DSP controller system |
|
spindle |
water cooling spindle |
|
Processing precision |
±0.03mm/300mm |
|
Max processing speed |
45000mm/min |
|
Max travelling speed |
25000mm/min |
What is the Benefit of cnc router cutting machine?
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture
2. Decoration industries: screens, wave boards, advertising boards and sign making
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles
4. Processing material: engraving, milling and cutting processing for acrylic, PVC, artificial stonesplastics and soft metal sheets such as copper and aluminum.
What is the package of our wood cnc router?
What's our service for Forsun CNC Fiber Laser Cutting Machine ?
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service
What is the FAQ of cnc router cutting machine ?
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
