Quick Details
-
Dimension(L*W*H):
-
1310*1900*1800
-
Weight:
-
8000
-
Machine Name:
-
Rubber O Ring Making Press Machine
-
Power(W):
-
10.4K
-
Certification:
-
CE, ISO
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HR
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1310*1900*1800
-
Weight:
-
8000
-
Machine Name:
-
Rubber O Ring Making Press Machine
-
Power(W):
-
10.4K
-
Certification:
-
CE, ISO

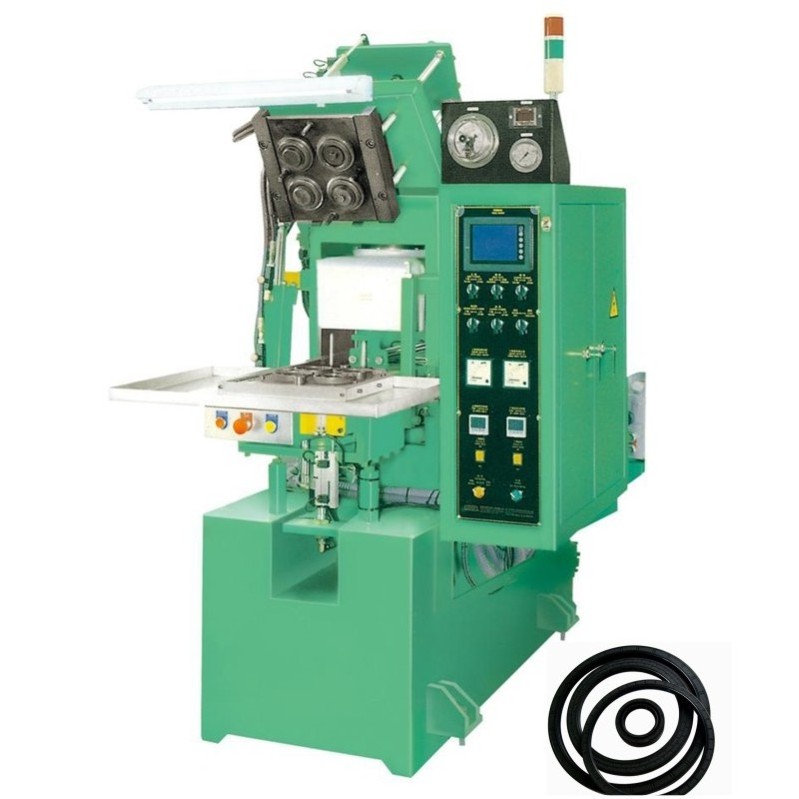

Rubber O Ring Making Press Machine
Contact: Kevin Kong
Mobile&Wechat&WhatsAPP: +86 18768196956
Application:
Specializing in the manufacture of various industrial and automotive oil seals, machinery, shaft seals and other rubber products
Structural Characteristics:
Vacuum Hood Device: The time of vulcanization is greatly shortened and the production efficiency is improved.
High-speed vacuum system: The raw material has good fluidity, eliminates air bubbles inside the finished product, and has zero defects in the finished product.
In and out of the mold, exhaust, off-line automatic cycle, free control at each stage
Streamlined design and easy maintenance
Model List:
| Machine Type | P-V-65-3RT | P-V-80-3RT | P-V-100-3RT | P-V-150-3RT | P-V-250-3RT |
|
Clamping Force
(ton) |
65 | 80 | 100 | 150 | 250 |
|
Piston Diameter
(mm) |
Φ200 | Φ225 | Φ250 | Φ300 | Φ400 |
|
Heating Platen Size
(mm) |
250*300 | 250*300 | 350*400 | 450*480 | 570*610 |
|
Bolster Platen Size
(mm) |
290*320 | 290*320 | 390*420 | 500*520 | 620*620 |
|
Space Between
Hot Plates (mm) |
200 | 200 | 200 | 200 | 200 |
| Stroke | 140 | 140 | 140 | 140 | 140 |
| Plate Turnover Angle | 45 | 45 | 45 | 45 | 45 |
| Vacuum Device | Vacuum Type | ||||
|
Power Consumption
(kW) |
10.4KW | 10.4KW | 15.11KW | 17.86KW | 29.3KW |
Products Range:
Machine Details:
