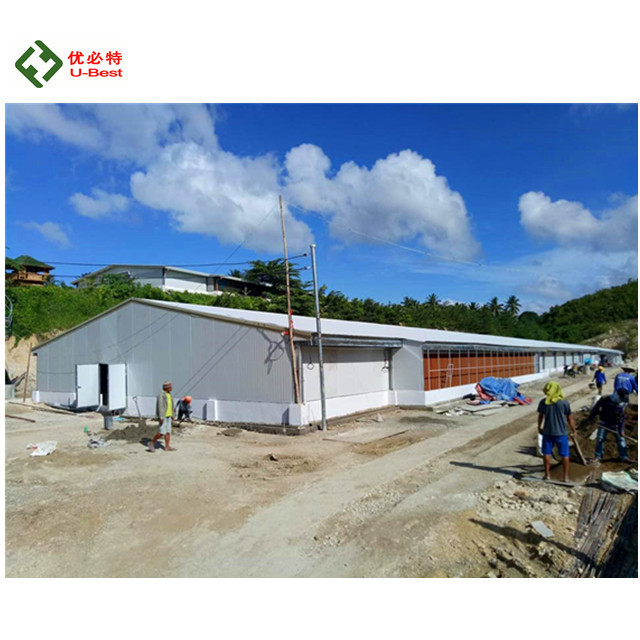

Ground floor broiler type automatic chicken farm raising equipment

Ground floor broiler type automatic chicken farm raising equipment

(U-BEST)

Great advantages for U-BEST automatic chicken farm raising equipment:

(1).Time saveing &Labour saving, one person is enough for one chicken house.

(2).Increasing chicken living rate.

(3).High quality to ensure non stopping running of your houses.

(4).Comparitively cheap price.

(5).Free and Professional Poultry farm shed design

(6).Equipment installation and professional installation design

(7).Workers training

(8).Good After-sale service

Please offer the following information to get fast quotation:

For broiler:

(1).Broiler Chicken shed Size: length×width × height or broiler birds Quantity you plan to raise?
(2).Weight of chicken when you sale to the market or the rearing week?

(3).Your poultry farm location and climate condition?

(4).Voltage,Frequency , single phase or three phase?

(5).Open type chicken shed (Side wall use Curtains) or Closed type chicken shed?

For breeder:

(1).Breeder chicken shed size:length×width × height?

(2).The female breeder quantity and male breeder quantity you will raise?

(3).Your poultry farm location and climate condition?

(4).Voltage,Frequency , single phase or three phase?

(5).Open type chicken shed (Side wall use Curtains) or Closed type chicken shed?

1.Main feeding line system

Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line

which controls motor on and off to achieve automatic feed delivery.

2.Automatic Pan Feeding line system

Main components	Features
Vice hopper	hot-dip double layer 275g galvanized sheet (70kg, 90kg,120kg,150kg are optional).
Feed bolts	Interface diameter is 45mm, including galvanized grid.
Feed pipe	double sided galvanized layer thickness of not less than 275g / m2, diameter 45mm, 3m /pc ( 3-hole /4-hole option)
Helical auger	Imported from South Africa
Feed pan	16 grill feed pan, ensure enough feeding space, from day old chicks to grow up chicken are reliable, Red PP material durable, easier to attract the birds feed. Option 1 Israel Plasson Type feed pan Option 2 USA Valco type feed pan Option 3 Big Herdsman type feed pan Option 4 UBT feed pan
Control pan	Including imported feed sensor, High sensitivity
Suspension system	Consist of steel wire rope, nylon rope, clips,winch,pulley,etc.
Driving   motor	Power:0.75kw/1.1kw/1.5kw, Voltage:380Vor 220V, Frequency:50hz/60hz, three phase/single phase

3.Automatic nipple drinking line system

Main components	Features
Front part of watering system	Adjust water supplying pressure and stabilizing drinking volume, this part is usually installed in control system.
Nipple drinking type	Option 1 Plasson type nipple drinking system Option 2 Big Herdsman type nipple drinking system Option 3 Germnay Lubing type nipple drinking system
Lifting and suspension system	Correct height for drinking system is very important for chicken(both higher and lower can effect chicken bone’s distortion , it’s bad for chicken growth, and also can have some water wasting), it’s very easy to adjust drinking system’s height if use this system.
Water display level tube	Use high transparency & impact resistant material, it’s sturdy and durable, and convenient to watch water level. This device with advanced design, it’s very easy to take down and clean.
Pressure regulator	Regulating stability, high switching performance, water supply is sufficient& equality, recoil cleaning with good cleaning result and can save time and water.
Doser                   (French Dosatoran)	Can add medicine into drinking system automatically. Don’t use power, it’s economic and reliable. Accurate, after setting, it can adjust medicine volume according to water pressure change. Its easy to control and maintain with good corrosion resistance.

4.Ventilation system

The main parts of ventilation system is the big fan and small fan. They are controlled by the control system.

The NO. of the fans to run was decided by the temperature of the poultry house.

5.Cooling pad system

Evaporative cooling pad system works in the condition of negative pressure, the cooling pad is installed on one

side of the wall, fan installed other side. When air flow through cooling pads, the water evaporation absorbs a

lot amount of heat. The height of cooling pad is 1.5-2.2m, length about 3m, the area of cooling pad in chicken

house is about 6-8 times than the fans.

6.Environment control system

Imported from Israel T607, T616, Image II can set an optimum working mode according to the local climate

and raising environment. This system saves the labor and the resources under the condition of assuring the

optimum growth.

7.Heating system

Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth

stage.

Option 1 :Hot-blast heater of coal and diesel,

Option 2: Gas heater

Option 3: Gas infrared brooder

Option 4: Electricity heater

Option 5: Diesel heater

8.Spray & disinfecting system

Function:

It is effectively tools for cooling, damping, dedusting, disinfecting the house.

Installtion layout for fogging system:

(1) There are three foggy lines in standard house,and each nozzle with two spraying hole every 3m to esure

spray into every corner.

(2) Side pipe is anti-high pressure PE pipe and able to endure high pressure of 100kg,anti-corrosive

(3) Main pipe is made of anti high pressure copper tube,from which two ways are divided,to ensure homogeneou atomizing granule everywhere under identical spraying pressure.

Weifang U-Best Company information

Weifang U-BEST Husbandry Equipment Co., LTD was founded in Weifang,Shandong Province in 2013.

The corporation engages in researching,designing and manufacturing products for livestock and poultry

husbandry. Besides producing and offering feeding system, nipple drinking system, ventilation and cooling

system and environment control system, it also engages in the project design and construction of modernized

farms for broilers, breeders, layers, It is a high-tech enterprise that boasts of fast development and top-ranking

technique in the world.

Welcome you and your client come to visit our facotry.Good service ,High Quality, Competitive price and professional automatic chicken farm raising equipment will be offered to you.

Kindly contact Ms Grace Wu in Weifang U-Best.
