Semi Automatic Waffle Ice Cream Cone Wafer Biscuit Making Machine

I. Introduction of sugar cone making machine:

Semi automatic sugar cone making machine is used to roll the sugar flat cone.

The line is made of three machines including feeding machine,baking plates machine and rolling machine.

II. Descriptions Of sugar cone making machine :

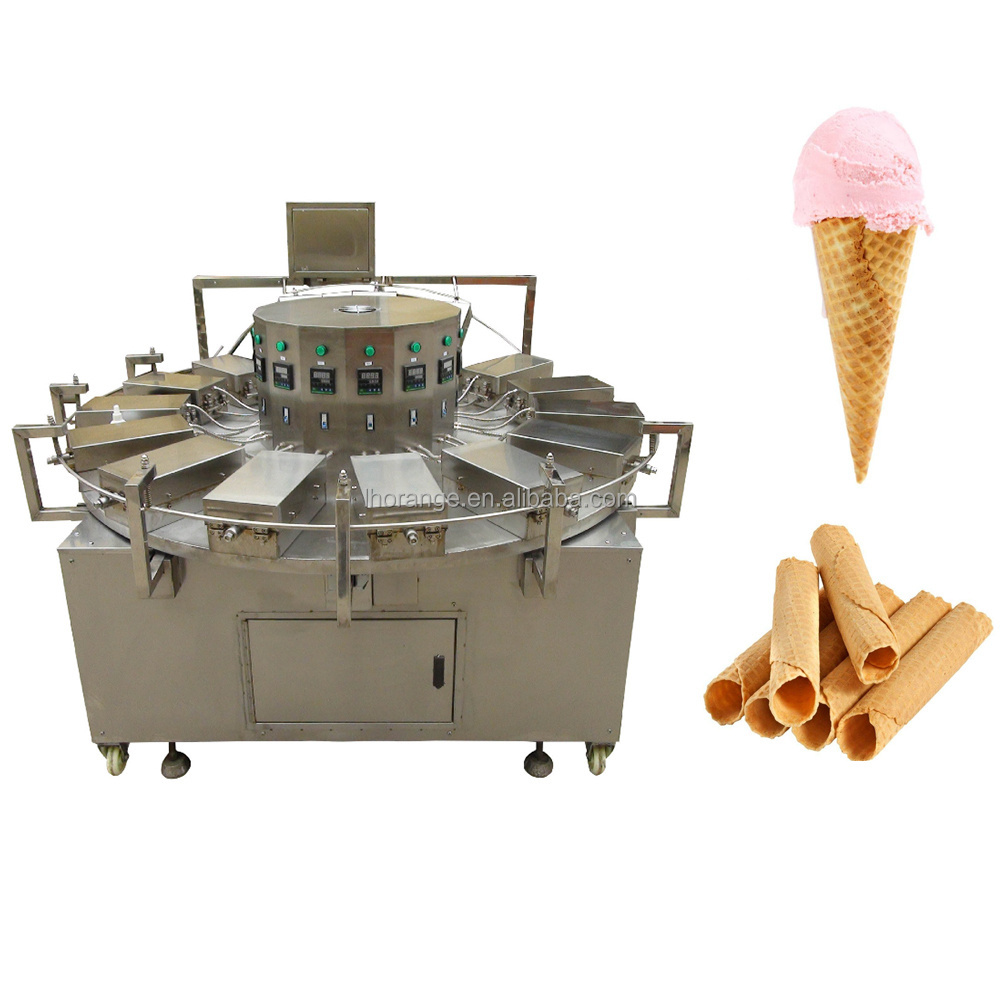

The sugar cone making machine consists of 12 single baking machine components, automatic cutting, the machine automatically after mature cone cake.
One person operation, convenient and practical. High quality electrical components, temperature control thermostat using Promise,
Temperature freely. Cone cake beautiful appearance, entrance crisp, making simple low investment and high return.
Automatic ice cream cone is the most popular current food.

III. Semi-automatic sugar cone making machine

1. Feeding machine (35L)

2. W affle m aker (Baking machine including 15pcs of baking plates)

IV. Structure of sugar cone making machine:

The semi automatic sugar cone making machine is composed of working table, rolling mould, transmission system and operating system.

1. Working Table: squareness shape with stainless steel protection. Welding frame component includes transmission system, bearing seat connecting with frame.

2. Rolling mould is composed of rolling head, shell, axle and bracket. Rolling power will be transmitted by gear system.

3. Transmission system includes motor, retarder, gemel , cam and so on.

4. Rolling parts controlled under rolling machine panel with the same controlling box as waffle maker.. One motor is controlled by switch. Temperature controlling can master preheating system.

V. Technical parameters of sugar cone making machine :
