Quick Details
-
Brand Name:
-
YUYE
-
Model Number:
-
YGL-R
-
Max. Current:
-
1250A
-
IP level:
-
IP43
-
Certificate:
-
CCC/CE/CB
-
Current Rated:
-
10A~1250A
-
Operaton:
-
Inside operation or Outside operation
-
Size of Fuse Link:
-
00C/00/0/1/2/3/4
-
Auxiliary Contact:
-
F-NC/NO S-NO+NC S Type U-U Type
-
Fuse:
-
With or Without Fuse
-
Pole:
-
2/3/4P
-
Product name:
-
Load Break Switch
-
Material:
-
ABS
-
Type:
-
Automatic Switch
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUYE
-
Model Number:
-
YGL-R
-
Max. Current:
-
1250A
-
IP level:
-
IP43
-
Certificate:
-
CCC/CE/CB
-
Current Rated:
-
10A~1250A
-
Operaton:
-
Inside operation or Outside operation
-
Size of Fuse Link:
-
00C/00/0/1/2/3/4
-
Auxiliary Contact:
-
F-NC/NO S-NO+NC S Type U-U Type
-
Fuse:
-
With or Without Fuse
-
Pole:
-
2/3/4P
-
Product name:
-
Load Break Switch
-
Material:
-
ABS
-
Type:
-
Automatic Switch
Load break switch/fuse transfer switch/fuse isolation switch
TYPE: YGL-R Current: 63A~1250A Pole: 3P 4P
Model Description
Note: don't note if the function in teh box is not necessary.
F-NC or No auxiliary contact
S-NO+NC S type auxiliary contact.
U-U type auxiliary contact
Example for lecto typ: rated current 160A,3P, side face operation in the cabinet.
Mated with spec of fuse link
| Rated current of fuse group of isolation switch A | Rated current of fuse link A | Size of fuse link |
| 63 | 10.20.30.40.50.63 | 00C |
| 160 | 63.80.100.125.160 | 00 |
| 250 | 160 | 0 |
| 200.250 | 1 | |
| 400 | 300.315.400 | 2 |
| 630 | 400.500.630 | 3 |
| 1250 | 800.10001250 | 4 |

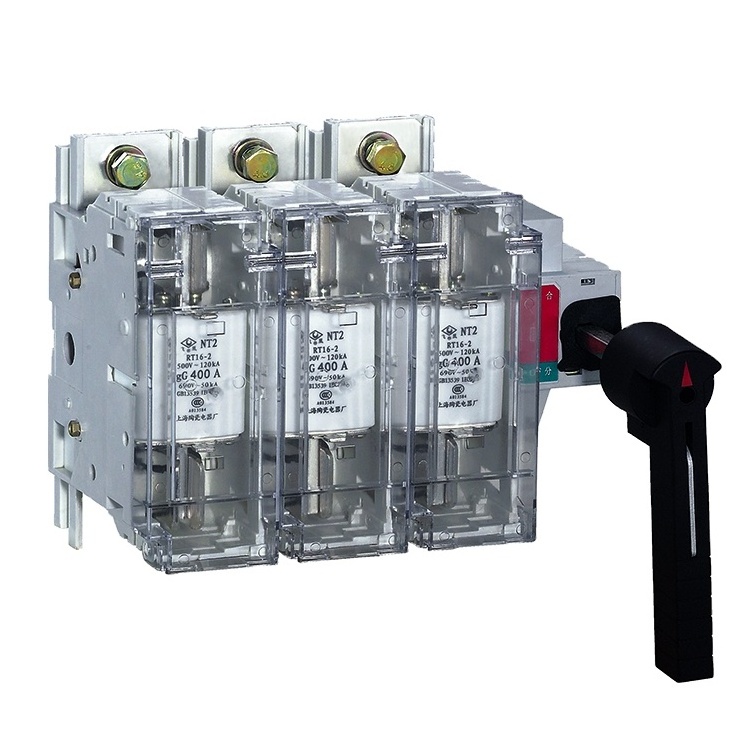

YGLR-63~1250A/ I TYPE Fuse Group of Isolation Switch
It make sure making and breaking circuit with load, with reliable over-current and short-circuit breaking protection, also obviously saw the breaking state. Own two poles, thre poles(three pole+switch neutral pole). The fuser can be divided into 23 specs from 63A to 1250A.
Structure and Operation Mode
Direct operation on front face: the handle is installed on the front face of switch.
Direct operation on side face: the handle is installed on the right of switch( it is noted separately if the handle is installed on theieft of switch)
Front face operation outside of cabinet: the handle is installed on the front face outside of the distribution cabinet door.
Side face operation outside of cabinet: the handle is installed on the right of distribution cabinet outside( it is noted separately if the handle is installed on the left).
