Quick Details
-
Weight:
-
15kg
-
Size:
-
4x21",4x40",4x80", etc.
-
Weight (KG):
-
15 kg
-
Brand:
-
HUAMO
-
Product name:
-
Stainless steel membrane shell
-
Model:
-
2521/2540/4021/4040/4080/40120
-
Materials:
-
Stainless Steel
-
Housing tube type:
-
Seamed, Seamless
-
Max working pressure:
-
150PSI, 200PSI, 250PSI
-
Inlet port:
-
3/4" female thread
-
Outlet port:
-
1/2" female thread
-
Port open:
-
End port, Side port
-
OEM:
-
Customized
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Huamo
-
Material:
-
standard export package
-
Weight:
-
15kg
-
Size:
-
4x21",4x40",4x80", etc.
-
Weight (KG):
-
15 kg
-
Brand:
-
HUAMO
-
Product name:
-
Stainless steel membrane shell
-
Model:
-
2521/2540/4021/4040/4080/40120
-
Materials:
-
Stainless Steel
-
Housing tube type:
-
Seamed, Seamless
-
Max working pressure:
-
150PSI, 200PSI, 250PSI
-
Inlet port:
-
3/4" female thread
-
Outlet port:
-
1/2" female thread
-
Port open:
-
End port, Side port
-
OEM:
-
Customized
Product Description

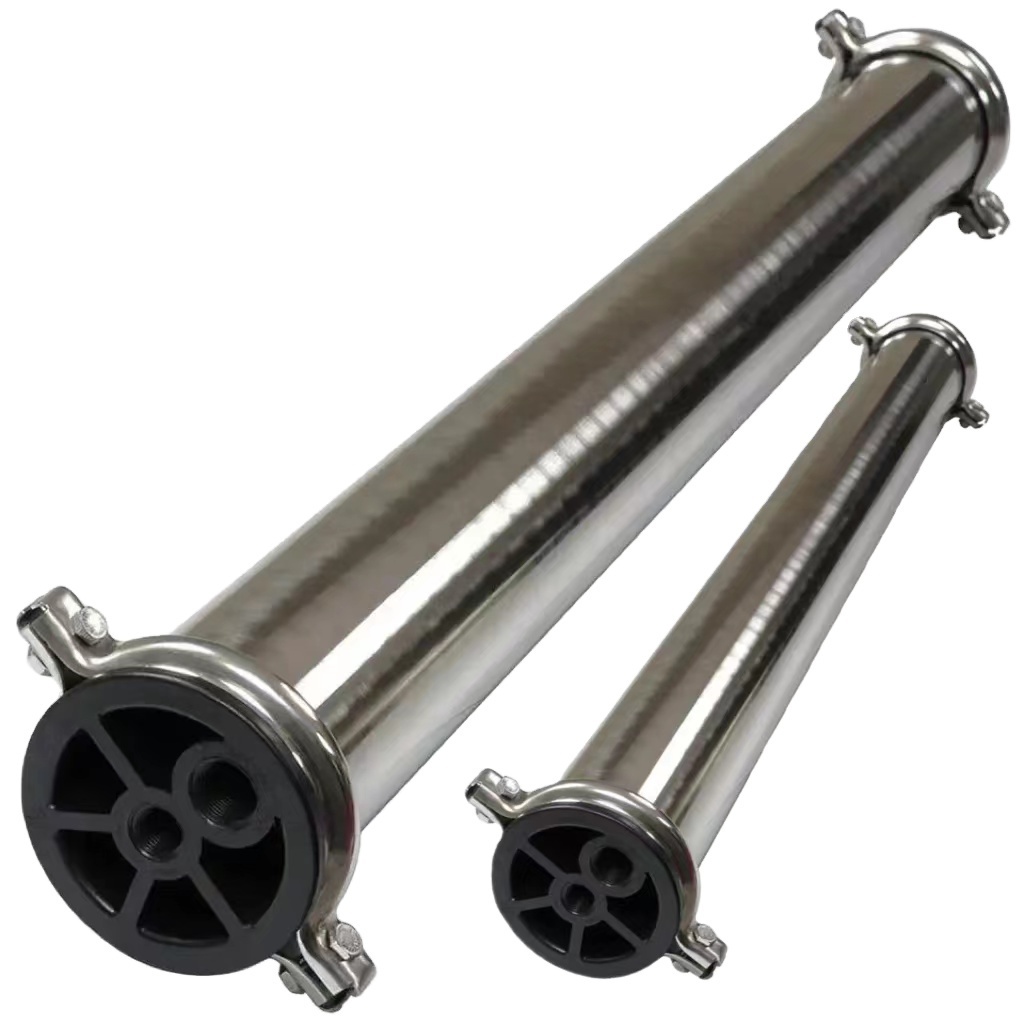

Stainless steel membrane shell
The stainless steel membrane housing is the basic part of the reverse osmosis equipment. The material is 304 stainless steel tube.According to the sealing form of the end port, it is divided into: clamp type, flange type, built-in type; The length is matched with the number of reverse osmosis membrane. The 4040 membrane housing is divided into two types: seamed and seamless, and is made of SUS304 stainless steel. Both ends are sealed with ABS head and silicone O-ring, which has high sealing performance and long service life.
|
Material
|
Stainless Steel #304/#316L
|
|
Housing tube type
|
Seamed, Seamless
|
|
End cap material
|
ABS, Stainless steel
|
|
Max.working pressure
|
250psi
|
|
Inlet port
|
3/4″female thread
|
|
Outlet port
|
1/2″female thread
|
|
External surface
|
Polishing or Mirrow
|
|
Model
|
2521, 2540, 4021, 4040, 4080,40120, 40160
|
Specification
|
Model
|
L (mm)
|
L 1 (mm)
|
D(mm)
|
A(in)
|
B(out)
|
|
MG1-2514
|
417
|
363
|
Φ62
|
1/4''
|
1/4''
|
|
MG1-2521
|
594
|
540
|
Φ62
|
3/8''
|
1/4''
|
|
MG1-2540
|
1082
|
1024
|
Φ62
|
3/8''
|
3/8''
|
|
MG1-4014
|
427
|
367
|
Φ102
|
1/2''
|
1/2''
|
|
MG1-4021
|
605
|
545
|
Φ102
|
1/2'' 3/4''
|
1/2''
|
|
MG1-4040
|
1088
|
1028
|
Φ102
|
1/2'' 3/4''
|
1/2''
|
|
MG1-4080
|
2104
|
2044
|
Φ102
|
3/4''
|
1/2''
|
|
MG1-40120
|
3120
|
3060
|
Φ102
|
3/4''
|
1/2''
|
|
MG1-40160
|
4136
|
4076
|
Φ102
|
3/4''
|
1/2''
|
|
Model
|
L (mm)
|
L 1 (mm)
|
D(mm)
|
A(in)
|
B(out)
|
|
MG2-2521
|
655
|
511
|
Φ62
|
1/2''
|
1/4''
|
|
MG2-2540
|
1136
|
994
|
Φ62
|
1/2''
|
3/8''
|
|
MG2-4021
|
668
|
515
|
Φ102
|
3/4''
|
1/2''
|
|
MG2-4040
|
1148
|
998
|
Φ102
|
3/4''
|
1/2''
|
|
MG2-4080
|
2164
|
2014
|
Φ102
|
3/4''
|
1/2''
|
|
MG2-40120
|
3180
|
3030
|
Φ102
|
3/4''
|
1/2''
|
|
MG2-40160
|
4196
|
4046
|
Φ102
|
3/4''
|
1/2''
|
