Quick Details
-
Brand Name:
-
YXSJ
-
Material:
-
Polycarbonate (PC)
-
Size:
-
115*60*16(mm)
-
modle number:
-
SN-K5
-
Operating Frequency:
-
125khz 13.56mhz
-
supply current:
-
200 mA (maximum); 50 mA (standerdby)
-
Supply Voltage:
-
Regulated 5 V DC
-
smart card read /write speed:
-
106 kbps, 212 kbps, 424 kbps
-
Certifications:
-
ISO, ROHS
-
Operating distance:
-
ce: Up to 50 mm (depending on type tag)
-
chip support:
-
TK4100 EM4200 F08,S50,203,MF Ultralight
Quick Details
-
Frequency:
-
134.2KHZ
-
Protocol:
-
ISO 14443A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YXSJ
-
Material:
-
Polycarbonate (PC)
-
Size:
-
115*60*16(mm)
-
modle number:
-
SN-K5
-
Operating Frequency:
-
125khz 13.56mhz
-
supply current:
-
200 mA (maximum); 50 mA (standerdby)
-
Supply Voltage:
-
Regulated 5 V DC
-
smart card read /write speed:
-
106 kbps, 212 kbps, 424 kbps
-
Certifications:
-
ISO, ROHS
-
Operating distance:
-
ce: Up to 50 mm (depending on type tag)
-
chip support:
-
TK4100 EM4200 F08,S50,203,MF Ultralight
High Quality Fast Scanning Rugged 2D QR code Scanner Nfc Access Control Card Reader For Bus Payment
This access control is specially designed for controlling the entrance of office,building,redidential area,facttory.Compared to other same products this one has the following advantages:
• Touch keypads with backlight, easy to operate even in dark
• Support EMID card(125KHz)and MIFARE card(13.56MHz)
• Standard user capacity 3000users,max to 50000users
• Lower power consumption stable and useful life
• With external reader for two doors
• Supprt independent password to open door
• Support Master card to add or delete user cards
Typical Application
1. E-Government
2. E-Banking and e-Payment
3. E-Healthcare
4. Transportation
5. Network Security
6. Access Control
7. Loyalty Program
|
USB interface |
|
|
Power source |
From USB |
|
Speed |
12 Mbps (Full Speed) |
|
Supply Voltage |
Regulated 5 V DC |
|
Supply Current |
200 mA (maximum); 50 mA (standby); 100 mA (normal) |
|
Contactless Smart Card Interface |
|
|
Standard |
ISO/IEC 18092 NFC, ISO 14443 A and B, FeliCa, Mifare |
|
Protocol |
FeliCa protocol, T=CL protocol |
|
Operating Frequency |
125KHZ 13.56 MHz |
|
Smart card read / write speed |
106 kbps, 212 kbps, 424 kbps |
|
Physical specifications |
|
|
Dimensions |
115 mm (L) x 60 mm (W) x 16mm (H) |
|
Weight |
250 grams |
|
Material |
Polycarbonate (PC) |
|
Color |
Pearl White |
|
Antenna Size |
50 mm x 40 mm |
|
Operating distance |
Up to 50 mm (depending on tag type) |
|
Built-in Peripherals |
|
|
Bi-Color LED |
Bi-color LED, red and green |
|
Buzzer |
Monotone |
|
Operating conditions |
|
|
Temperature |
0 – 50 °C |
|
Humidity |
10% - 80% |
|
Cable Connector |
|
|
Length |
1.0 M (USB) |
|
Certification/standard |
|
|
PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed Microsoft ® WHQL 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7 |
|
|
Device drivers for the operating system |
|
|
Windows ® 98, ME, 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7 Windows ® CE 5.0 Linux, Mac |
|

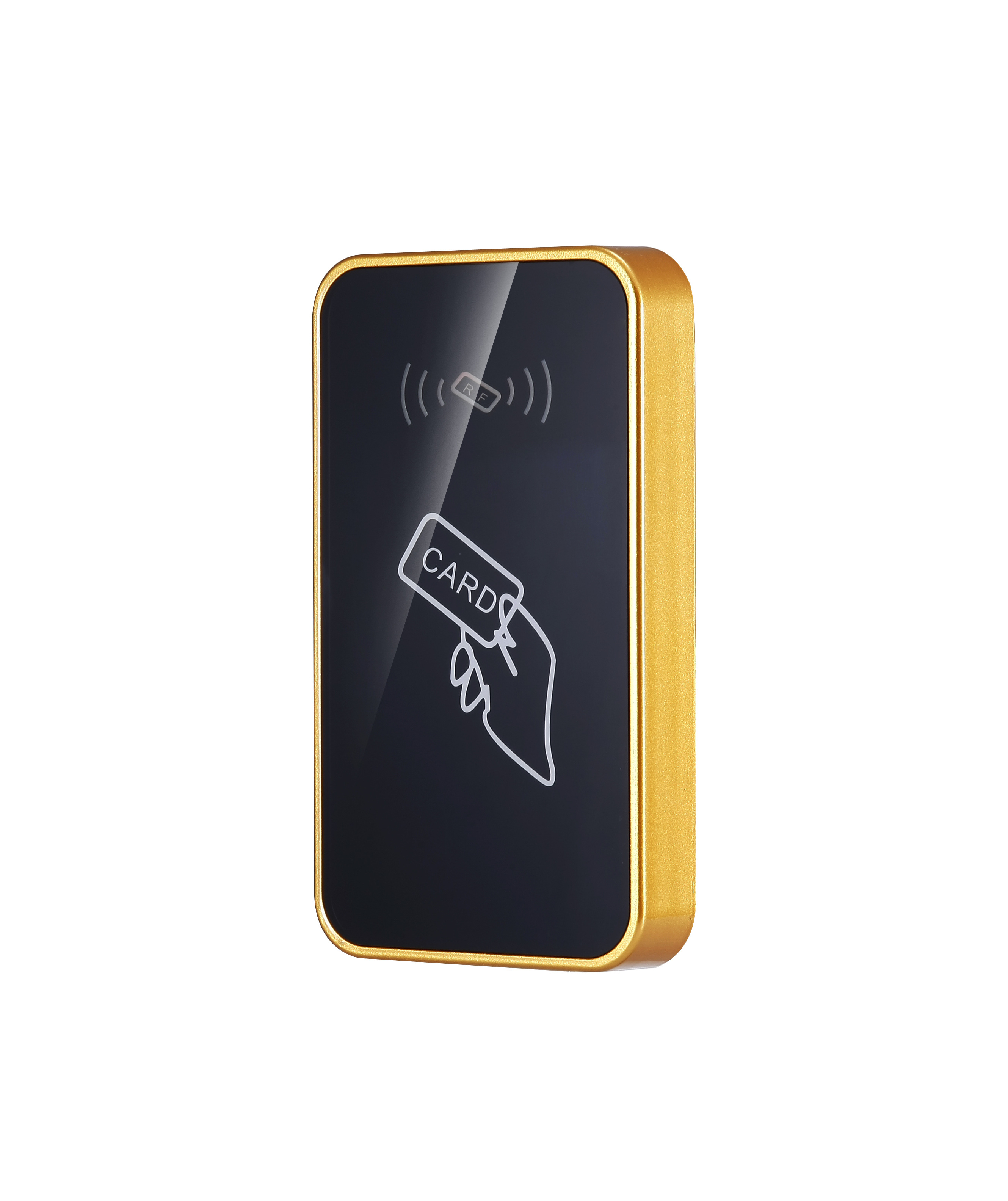

The Pictures of reader:
