Quick Details
-
Brand Name:
-
AULANS
-
Valve standard:
-
ASME B16.34 , DIN , GB
-
Disc type:
-
Disc balanced
-
Driving mode:
-
Pneumatic
-
Valve function:
-
Check
-
Type (channel position):
-
Straight through
-
Function:
-
Closure type
-
Lining material:
-
Rigid polyvinyl chloride (PVC)
-
Sealing material:
-
Rubber
-
Applicable industry:
-
Water supply and drainage, chemical industry, etc
-
Product name:
-
Diaphragm valve
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
G661X-10S
-
Brand Name:
-
AULANS
-
Valve standard:
-
ASME B16.34 , DIN , GB
-
Disc type:
-
Disc balanced
-
Driving mode:
-
Pneumatic
-
Valve function:
-
Check
-
Type (channel position):
-
Straight through
-
Function:
-
Closure type
-
Lining material:
-
Rigid polyvinyl chloride (PVC)
-
Sealing material:
-
Rubber
-
Applicable industry:
-
Water supply and drainage, chemical industry, etc
-
Product name:
-
Diaphragm valve
Product overview
|
Brand:AULANS
|
|
Product name: pneumatic diaphragm valve
|
|
|
||||
|
Product Specification: DN15-200mm
|
|
Material: UPVC
|
|
|
||||
|
Material: UPVC
|
|
Valve Standards:ASME B16.34 , DIN , GB
|
|
|
||||
|
Connection mode: bonding (socket)
|
|
|
|
|
||||

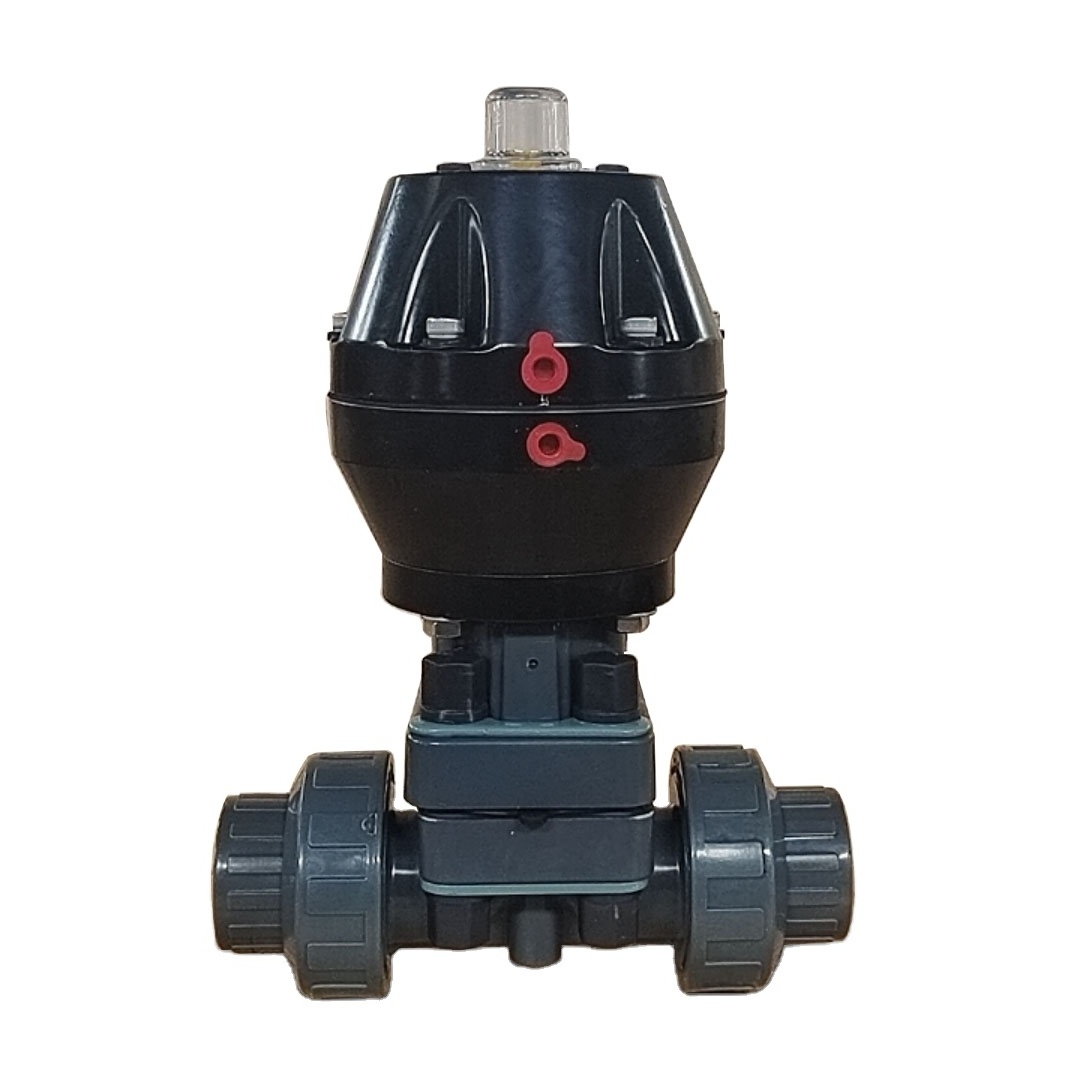

Product Photograph
● overview and application of double by-pass pneumatic diaphragm valve
The double by-pass pneumatic diaphragm valve is mainly used for corrosive media. The diaphragm of the diaphragm valve separates the inner cavity of the lower part of the valve body from the inner cavity of the valve cover and forms a direct channel with it, so that the valve stem, valve disc and other internal parts on the upper part of the diaphragm are completely isolated from the media. The packing sealing structure is omitted, and the internal and external leakage of the media can be avoided at the same time. Its surface is uniformly coated with FEP. The inner surface of the valve body channel is smooth, the fluid resistance is small, the CV value is high, the flow capacity is strong, and the torque is moderate. The four-stage sealing structure is adopted and the elastic gasket valve seat of temperature resistant and aging resistant Si rubber is equipped outside the sealing surface, so as to completely achieve zero leakage of the medium.
● features of double driven pneumatic diaphragm valve
※ used in corrosive and toxic media.
※ the inner surface of the valve body channel is smooth, the fluid resistance is small, the CV value is high, and the flow capacity is strong.
※ the four-stage sealing structure is adopted and the elastic gasket valve seat with temperature resistant and aging resistant Si rubber is equipped outside the sealing surface to achieve zero leakage of corrosive and toxic media.
※ easy installation, easy operation, low failure rate and easy maintenance.
