Quick Details
-
Weight (KG):
-
50 kg
-
Name:
-
UPVC cartridge filter housing
-
Material:
-
UPVC, SS304/SS316 also provided
-
Max working pressure:
-
0.6Mpa
-
Usage:
-
for brackish water or seawater treatment
-
Filter elements inside:
-
melt-blown or sting wound PP filters
-
Function:
-
as pretreatment filters to remove particles
-
Filter elements quantity:
-
from 5pcs to 9pcs
-
FIlter elements length:
-
10'', 20'', 30'', 40''
-
Connection:
-
thread and flange
-
Capacity:
-
250L~10000L
Quick Details
-
Core Components:
-
housing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YOUBER/Customers' brand
-
Weight (KG):
-
50 kg
-
Name:
-
UPVC cartridge filter housing
-
Material:
-
UPVC, SS304/SS316 also provided
-
Max working pressure:
-
0.6Mpa
-
Usage:
-
for brackish water or seawater treatment
-
Filter elements inside:
-
melt-blown or sting wound PP filters
-
Function:
-
as pretreatment filters to remove particles
-
Filter elements quantity:
-
from 5pcs to 9pcs
-
FIlter elements length:
-
10'', 20'', 30'', 40''
-
Connection:
-
thread and flange
-
Capacity:
-
250L~10000L
UPVC cartridge filter housing for water purification

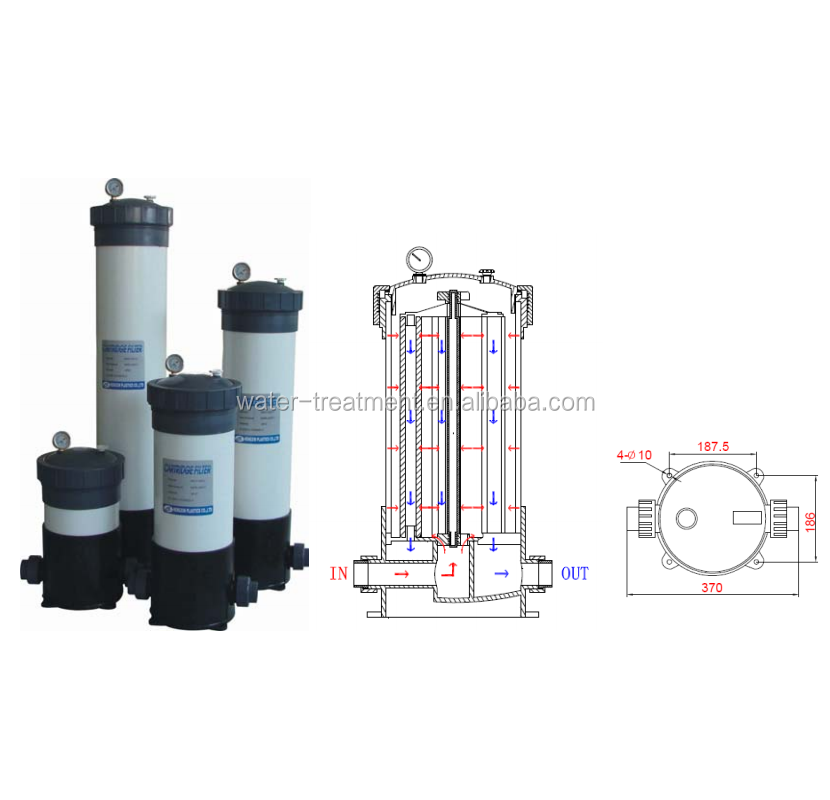

Photos:
Technical characteristics:
(1) Material: UPVC, molding one time, standardized production, convenient replacement and maintenance;
(2) The inlet and outlet port are in the same horizontal line, with slipknot connectors, simple installation and convenient, cost savings, good looking;
(3) From the bottom center to be upwards to distribute water for all around, the filter cartridge impact resistance is small; there is exhaust valve on the top of the filter, in order to discharge the air from the filter;
(4) The filter bottom system and the top filter cartridge press claws adopt integrated design, make the installation of the filter easy pressure and also avoid the leakage phenomenon.
(5) The UPVC material has stronger corrosion resistance, used in the chemical industry which stainless steel can not be replaced.
UPVC cartridge filter housing technical parameter:
5pcs filter elements
|
Model |
Material |
Size(MM) |
Filter cartridge Qty |
Cartridge Size |
Connection size |
Pressure |
Flow rate |
|
YB5-5DC1 |
UPVC |
225*H450 |
5PCS |
10” |
50MM |
0.6MPA |
2.5M³/H |
|
YB5-5DC2 |
UPVC |
225*H700 |
5PCS |
20” |
50MM |
0.6MPA |
5M³/H |
|
YB5-5DC3 |
UPVC |
225*H950 |
5PCS |
30” |
50MM |
0.6MPA |
7.5M³/H |
|
YB5-5DC4 |
UPVC |
225*H1200 |
5PCS |
40” |
50MM |
0.6MPA |
10M³/H |
8/9pcs filter elements inside
|
Model |
Material |
Size(MM) |
Filter cartridge Qty |
Cartridge size |
Connection size |
Max pressure |
Flow rate |
|
YB5-8DC1 |
UPVC |
315*H485 |
8/9PCS |
10” |
89MM |
0.6MPA |
4M³/H |
|
YB5-8DC2 |
UPVC |
315*H735 |
8/9PCS |
20” |
89MM |
0.6MPA |
8M³/H |
|
YB5-8DC3 |
UPVC |
315*H985 |
8/9PCS |
30” |
89MM |
0.6MPA |
12M³/H |
|
YB5-8DC4 |
UPVC |
315*H1235 |
8/9PCS |
40” |
89MM |
0.6MPA |
16M³/H |
Packaging: Customization Plywood case packing;
Shipping: We have our own shipping forwarder to deliver goods all over the world, we provide
shipping by sea, by air, by courier, to the seaport and door to door service;
Besides UPVC cartridge filter housing, we also can provide Stainless steel filter housing, including SS304 and SS316 for brakish water filtration and seawater filtration, and all kinds of customizatin of stainless steel water tank.
