Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
HEB, Tangshan ,China
-
Brand Name:
-
SHUOEN BRAND
-
Voltage:
-
380V or as required
-
Dimension(L*W*H):
-
8.5*1.65*1.5m
-
Weight:
-
7500 kg
-
Feeding width:
-
914-1450mm, 914,1000,1200
-
Marketing Type:
-
New Product 2024
-
Suitable material:
-
GI/PPGI/AL/ZINC Coil/Sheet
-
Usage:
-
Steel Construction
-
Model Number:
-
Roll Forming Machine
-
Product name:
-
Roofing Sheet Making Machine
-
Color:
-
Customised
-
Material:
-
PPGI GI ALUZINC
-
After-sales Service Provided:
-
1 Years
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
0-35m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
HEB, Tangshan ,China
-
Brand Name:
-
SHUOEN BRAND
-
Voltage:
-
380V or as required
-
Dimension(L*W*H):
-
8.5*1.65*1.5m
-
Weight:
-
7500 kg
-
Feeding width:
-
914-1450mm, 914,1000,1200
-
Marketing Type:
-
New Product 2024
-
Suitable material:
-
GI/PPGI/AL/ZINC Coil/Sheet
-
Usage:
-
Steel Construction
-
Model Number:
-
Roll Forming Machine
-
Product name:
-
Roofing Sheet Making Machine
-
Color:
-
Customised
-
Material:
-
PPGI GI ALUZINC
-
After-sales Service Provided:
-
1 Years
Product Description

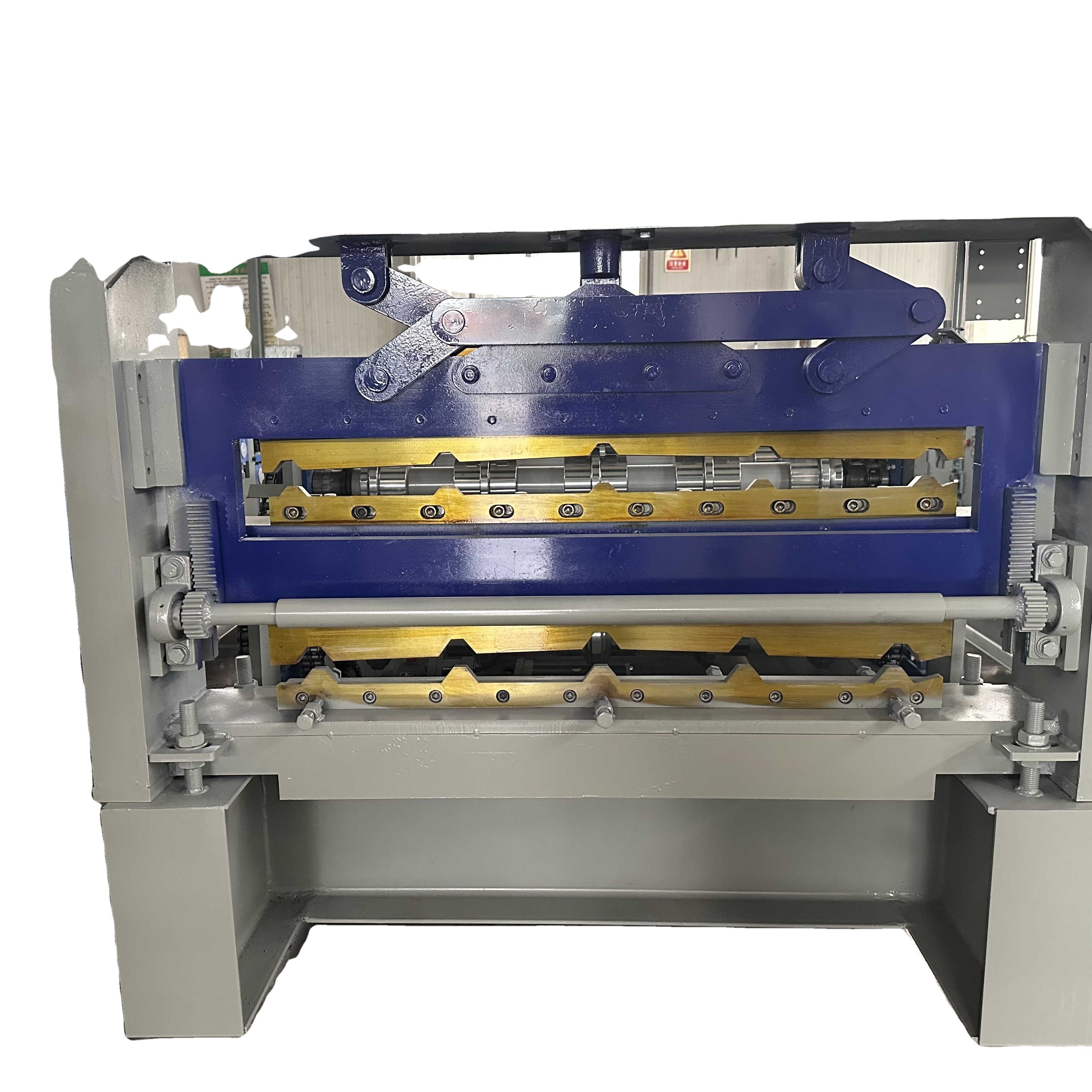

Tile/Roof Roll Forming Machine
The machine is composed of the Frame, PLC control system, hydraulic station, and automatic shearing system.
The tile/roof produced are flat and beautiful in appearance, uniform in paint pattern, and are widely used in industrial and civil buildings, such as houses, warehouses, garages, hangars, gymnasiums, exhibition halls, theaters and other room surfaces and walls. .
Specification
|
Frame construction
|
300 H beam
|
|
Midplate thickness
|
14mm
|
|
Molding shaft size
|
Shaft diameter 70mm
|
|
Molding roller material
|
45#Hard chrome plating for finishing steel
|
|
Chain
|
Sprocket chain drive
|
|
chain specifications
|
1 inch
|
|
Main engine power
|
4KW
|
|
Cut-off mode
|
Hydraulic cylinder
|
|
Working speed
|
15m/min
|
|
Material thickness
|
0.3-0.6mm GI/PPGI/color sheet
|
|
Electric cabinet
|
Split touch screen
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
