Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kinmore
-
Model Number:
-
KM-16A050-592-0615
-
Torque:
-
0.04~40 Kg.cm
-
Main Feature:
-
dc gear motor 5v
-
Brush Type:
-
Carbon Brush / Metal Brush
-
Typical Usage:
-
Electric Lock, Acuator,Cordless Drill, Coffee machine,Video/Camera.
-
Outline Diameter:
-
10-16 mm
-
Certification:
-
RoHS
Quick Details
-
Speed(RPM):
-
1~1300 rpm
-
Continuous Current(A):
-
0.07~1.7 A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kinmore
-
Model Number:
-
KM-16A050-592-0615
-
Torque:
-
0.04~40 Kg.cm
-
Main Feature:
-
dc gear motor 5v
-
Brush Type:
-
Carbon Brush / Metal Brush
-
Typical Usage:
-
Electric Lock, Acuator,Cordless Drill, Coffee machine,Video/Camera.
-
Outline Diameter:
-
10-16 mm
-
Certification:
-
RoHS

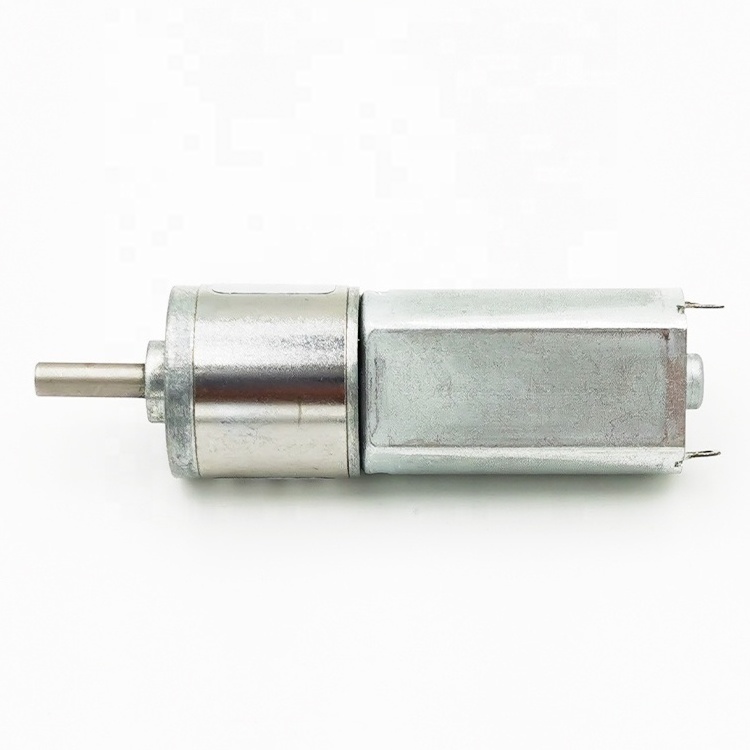

Small battery powered mini electric gear motor for sale
Introduction
More than 21 years' motor design and production experience
90 million-piece annual capacity
Auto motors are almost entirely produced on automated lines
Facilities certified to IAFT16949:2016,ISO 9001:2008 and ISO 14001:2004
Advanced equipment from Sodick, Hexagon,Mitutoyo, Magtrol and Votsch
10% sales revenue invested in R&D and automatic equipment every year
Customer PPM: auto motors s 30;general motors s 3,000
Product Description
| Ratio | Model No. | Voltage | No Load | On Load | |||||||||
|
Operating
Range |
Nominal
Voltage |
Current | Speed | Current | Torque | Speed | |||||||
| V | V | A | r/min | A | kg.cm | r/min | |||||||
| 1/14.4 | KM-16A050-13.2-121350 | 6.0-24.0 | 12 | 0.067 | 1350 | 0.075 | 0.184 | 1200 | |||||
| 1/35.9 | KM-16A050-35.9-03301 | 1.0-4.0 | 3 | 0.15 | 301 | 0.4 | 0.36 | 228 | |||||
| 1/89.8 | KM-16A050-90-03.5110 | 1.0-4.0 | 3.5 | 0.085 | 113 | 0.334 | 0.5 | 91 | |||||
| 1/225 | KM-16A050-224-1275.3 | 6.0-12.0 | 12 | 0.065 | 75.3 | 0.255 | 1.5 | 60.2 | |||||
| 1/562 | KM-16A050-592-0615 | 6.0-12.0 | 6 | 0.067 | 15 | 0.19 | 2.1 | 11.7 | |||||
