Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
FSCUT
-
Place of Origin:
-
Shandong, China (Mainland)
-
Brand Name:
-
Hoysook
-
Weight (KG):
-
3000 KG
-
Product name:
-

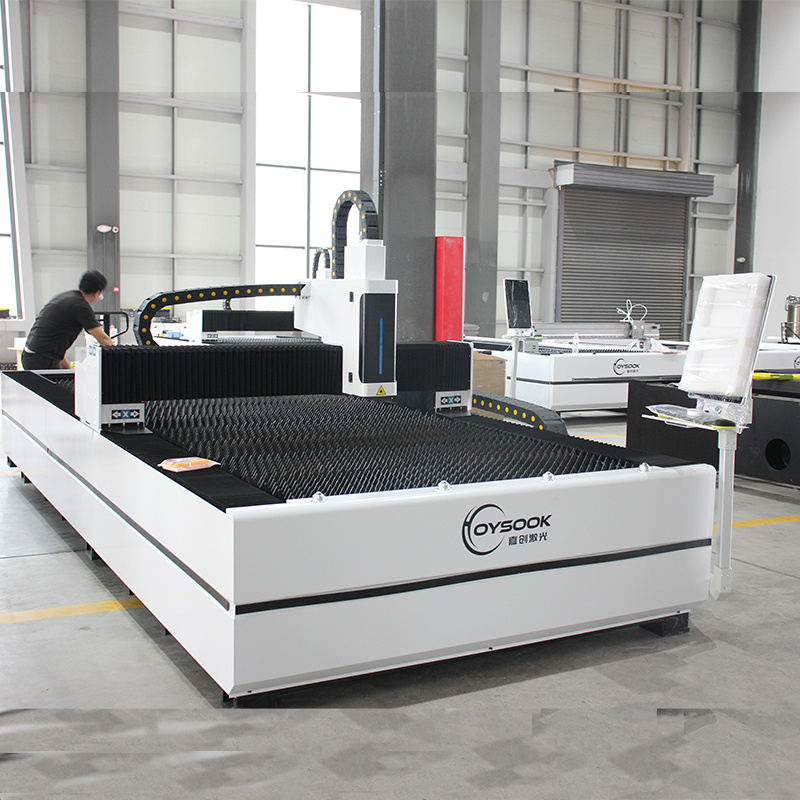

Fiber Laser Cutting Machine
-
Model:
-
HY 3015
-
Laser power:
-
1000W/2000W/3000W/4000W
-
Working area:
-
1500mmx3000mm
-
Cooling Method:
-
Water chiller
-
G. W:
-
5500KG
-
Control system:
-
Cypcut Control Systerm
-
Protection cover:
-
Yes
-
The maximum load of the table:
-
500KG
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
0-60000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
FSCUT
-
Place of Origin:
-
Shandong, China (Mainland)
-
Brand Name:
-
Hoysook
-
Weight (KG):
-
3000 KG
-
Product name:
-
Fiber Laser Cutting Machine
-
Model:
-
HY 3015
-
Laser power:
-
1000W/2000W/3000W/4000W
-
Working area:
-
1500mmx3000mm
-
Cooling Method:
-
Water chiller
-
G. W:
-
5500KG
-
Control system:
-
Cypcut Control Systerm
-
Protection cover:
-
Yes
-
The maximum load of the table:
-
500KG
Products Description
>>> Click here, get price
Product Applications
This machine can be used for different materials, such as carbon steel, stainless steel, galvanized sheet, copper, aluminum, and so on. And it has multiple uses.
Cut metal sheet
Engrave metal door
.
Drill hole on beam
Process accessories
Make metal signs
s.
Brass craft
Machine Characteristics
|
1
|
Machine Model
|
|
HY3015 , HY4015 , HY4020 , HY6020 , HY8025 , HY12025 , etc
|
|
||
|
2
|
Laser Power
|
|
1000w , 1500w , 2000w , 3000w , 4000w , 6000w , 8000w , 10000w , 12000w
|
|
||
|
3
|
Cut Thickness
|
|
0.5mm-30mm according to the power
|
|
||
|
4
|
Laser Generator
|
|
Raycus /MAX
|
|
||
|
5
|
Transmission system
|
|
Gear +rails
|
|
||
|
8
|
Max acceleration
|
|
1.0G
|
|
||
|
9
|
Voltage
|
|
380V /240V /120V
|
|
||
|
10
|
Laser wave length
|
|
1064nm
|
|
||
|
11
|
Machine color
|
|
Support custom made
|
|
||
Machine Parts & Details
