Quick Details
-
Pulse Frequency:
-
50/60HZ
-
Dimensions:
-
428*206*220mm
-
Use:
-
For DIY purpose, light duty welding jobs.
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color::
-
Red and Black
-
Experience::
-
Since 1993
-
Packing::
-
Cardboard carton
-
OEM::
-
50PCS
-
Efficiency::
-
85%
-
Gross weight::
-
5.9/5.9/6.8KG
-
Welding stainless steel::
-
Yes
-
Housing of machine::
-
Iron,Plastic option
-
Arc Current:
-
140A
-
Certification:
-
CE,GS,ROHS
-
Rated Duty Cycle:
-
60%
-
Voltage:
-
single phase AC 220V±15%,three phase 380V±15%
-
Pilot Arc Current:
-
20/24/32
-
Power:
-
5KVA
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANDELI Or OEM
-
Model Number:
-
ARC-140G
-
Pulse Frequency:
-
50/60HZ
-
Dimensions:
-
428*206*220mm
-
Use:
-
For DIY purpose, light duty welding jobs.
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color::
-
Red and Black
-
Experience::
-
Since 1993
-
Packing::
-
Cardboard carton
-
OEM::
-
50PCS
-
Efficiency::
-
85%
-
Gross weight::
-
5.9/5.9/6.8KG
-
Welding stainless steel::
-
Yes
-
Housing of machine::
-
Iron,Plastic option
-
Arc Current:
-
140A
-
Certification:
-
CE,GS,ROHS
-
Rated Duty Cycle:
-
60%
-
Voltage:
-
single phase AC 220V±15%,three phase 380V±15%
-
Pilot Arc Current:
-
20/24/32
-
Power:
-
5KVA
High efficiency dc inverter mini arc mma 140 welding machine,arc stud welding machine
| Why choose us? |
|
1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
|

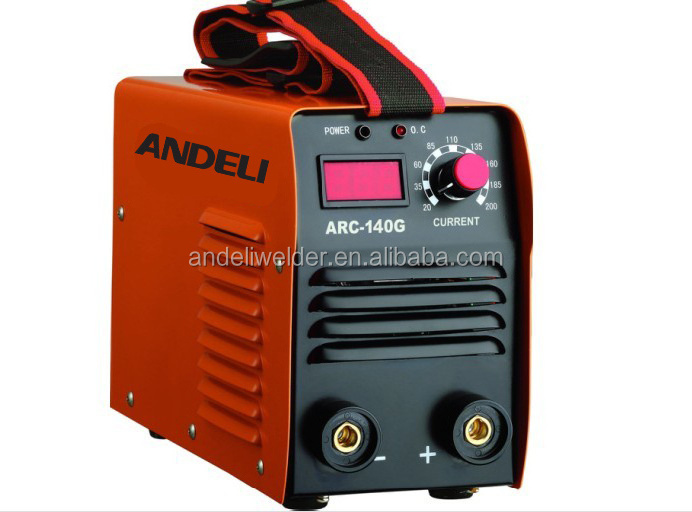

Products Photo Showing:
Name: Inverter IGBT DC ARC MMA Welding Machine
Model:ARC-140G/ARC-160G/ARC-200G
Suitable Base Materials: Aluminium, Al-Mn alloy, Al-Mg alloy, Carbon steel, Stainless steel, Low-alloy steel.
Product Features:
1,The totally 5.5KG, compact and portable, easy and simple to operate.
2,Start arc easily,stable weld arc,deep weld pool and beatiful welding shape.
3,Hot striking arc current is adjustable which can greatly improve the arc starting function.
4,Suitable for welding with different kinds ofacid or basic eletrode.
5,Plastic box with complete accessories is optional: electrode holder ,earth clamp,cable joint.
6,Welding mask and brush.
Parameters Table:
| High efficiency dc inverter mini arc mma 140 welding machine,arc stud welding machine | |||
| Model | ARC-140G | ARC-160G | TIG-200G |
| Type | IGBT Chip | ||
| Rated input voltage (V) | single phase AC220 ±15% | ||
| Rated frequency (Hz) | 50/60 | ||
| Rated input power (KVA) | 4.5 | 5.3 | 7 |
| Rated input current (A) | 20 | 24 | 32 |
| Rated output | 140A/25.6V | 160A/26.4V | 200A/28V |
| Output current (A) | 20-140 | 20-160 | 20-200 |
| No-load voltage (V) | 56±5 | 56±5 | 62±5 |
| Rated duty cycle (%) | 60 | 60 | 60 |
| Efficiency (%) | 80 | 80 | 80 |
| Power factor | 0.7 | 0.7 | 0.7 |
| Protection grade | IP21 | IP21 | IP21 |
| Insulation grade | F | F | F |
| Net weight (KG) | 5 | 5 | 5.9 |
| Gross weight (KG) | 5.9 | 5.9 | 6.8 |
| Housing of machine | iron | ||
| Dimension of machine (mm) | 330×120×200 | ||
| Packing | carton | ||
| Dimension of packing 1V1 (mm) | 428×206×220 | ||
| Dimension of packing 4V1 (mm) | 442×431×466 | ||
Product Detils :
01 . 100% seamless, full-chip technology of the control panel,greatly increase the reliability of welding machine, at the same time Saip exclusive using over-current protection system on the control panel , prevent large current shock, prevent the welder secondary damage, even Fried tube.
02. ANDELI is the only stick with the most advanced of the amorphous structure transformer 200G models in China, the machine efficiency is over 32%, compared to "ferrite" is extended more than twice the life.
03. Recent wind blowing straight type design, welding machine can work in the high temperature of 60C , load rate of 100%.
04. From Germany's Siemens technology imported from IGBT single pipe, quality guaranteed.
05. Cooperate with industry leading capacitor production enterprises, 4470uf, high quality, to ensure the high-efficiency and stable output of the electric welding machine.
06 . Super-size capacity of the radiator,to improve welding efficiency by more than 26%.
07. Interlayer duct patent technology, completely prevent dust into the upper and lower plate, and cause a short circuit to improve the service life of welding machine; All lines adopt insulation layer leather processing, saip want to manufacturing the best welding.
08. ANDELI electric welding machine production in line with international safety standards, each welder has a grounding design.
More Display :
Main Components of Different (our welding machine and the other):
Machine Inside View:
Accessorie:
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 24 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate on the device.
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Yueqing city, Zhejiang province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
4.Q:What is the Minimum Order Quantity?
A:Moq usually be 100pcs. Small quantity is also available.
5.Q:Is sample available and the sample fee refundable?
A: Yes, sample fee will be return back in your next formal order.
6.Q:What is the available shipping way?
A: Small quantity usually choose DHL, Fedex, UPS and EMS etc.international door to door express.
Bulk order would be sea/ air shipping.
