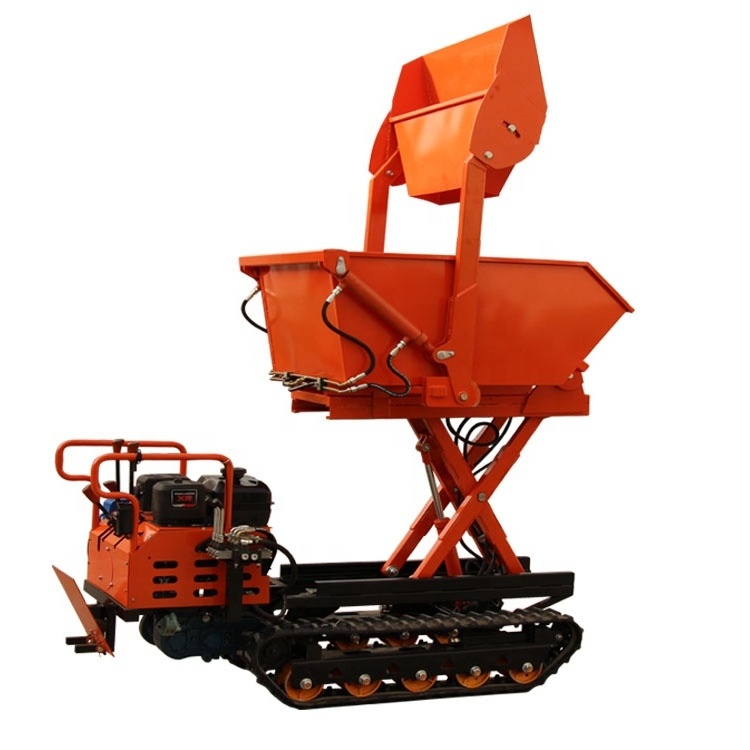

Crawler Type Mini Dump Truck 1000kg Dumper for Garden Use

Crawler Type Mini Dump Truck 1000kg Dumper for Garden Use

FOB Reference Price: Get Latest Price

≥1 Sets

US $4160

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Machine Weight:: 560 kg

Bucket capacity:: 100L, 0.1CBM

Marketing Type:: Hot Product

Product name:: Mini dumper with a shovel

Engine:: 13.5HP gasoline engine

Function:: loading and unloading

Load capacity:: 1000KG

Drive type:: Gearbox

Transmission:: 3F+1R

Color:: Yellow Red

Keyword:: Tracked Dumper Crawler Dumper

Tire:: Rubber crawler

Quick Details

Engine Brand:: BRIGGS&STATTON

Power:: 18KW

Place of Origin:: Shandong, China

Machine Weight:: 560 kg

Bucket capacity:: 100L, 0.1CBM

Marketing Type:: Hot Product

Product name:: Mini dumper with a shovel

Engine:: 13.5HP gasoline engine

Function:: loading and unloading

Load capacity:: 1000KG

Drive type:: Gearbox

Transmission:: 3F+1R

Color:: Yellow Red

Keyword:: Tracked Dumper Crawler Dumper

Tire:: Rubber crawler

Product Overview

Crawler Type Mini Dump Truck 1000kg Dumper for Garden Use

1. It is widely used for transportation with complete terrain and narrow roadbeds such as farmland, orchard, greenhouse, seedbed,
beach, snow field, construction site, etc.
2. The steel wire rubber track is more wear-resistant and has a longer service life. High traction, good climbing ability and
strong transportation ability.
3. Electric start, centralized handle, easy to operate. The working radius is small, and it can be operated in a narrow area.
4. Hydraulic lifting and unloading can reduce labor intensity and improve transportation efficiency.
5. Equipped with low fuel alarm and battery power microcomputer display, which can be checked at any time, which is convenient and
time-saving.
6. Multi-functional accessories such as cargo box, truck crane, spraying medicine, mixer, grinder, and remote control can be
customized.

FEATURES AT A GLANCE

Min crawler dumper with a shovel

This is a dumper,but it load and unloading by itself.

It also add a lift,in order to unloading goods into a truck or others.Save time and labour.

Rise of car hopper

Unloading

Norm type

PRODUCT SPECIFICATIONS

NO.	Item	Parameter	Note
1	Power	Changchai 186,10HP air cooler	EPA engine choosed(BRIGGS STRATTON gasoline engine )
2	Gearbox	3F+1R
3	Opearation ways	Manual lever
4	Unloading ways	Hydraulic
5	Shovel volume	0.18 m3
6	Car hopper size	1200x780x380mm	"U"-type for car hopper
7	Overall size	2650×1000×1200mm
8	Weight	560KG
9	Rubber crawler size	180-72-42
10	Rubber crawler touch ground length	1000mm
11	Loading capacity	flat: 1000KG 40°steep slope:500-600KG
12	Speed	Min speed:2KM Max. speed:10KM
13	Obstacle ablity	Max 40° slope
