Quick Details
-
Screw Speed (rpm):
-
15 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OROTRIM
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
700*200*400
-
Power (kW):
-
0.25
-
Weight:
-
32KG
-
Automatic Grade:
-
automatic
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Marketing Type:
-
New Product 2021
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
12:1
-
Screw diameter (mm):
-
35 mm
-
Screw Speed (rpm):
-
15 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OROTRIM
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
700*200*400
-
Power (kW):
-
0.25
-
Weight:
-
32KG
-
Automatic Grade:
-
automatic
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Marketing Type:
-
New Product 2021
1, The basic performance parameters:
1, Capacity: 0.1-5KG / hr
2, ; screw rotation speed: max to 15r/min
3, the production line center height: 300mm;
5, line direction: left and right to close the discharge →
6, the installation area: length×width*height = 0.75m * 0.2m * 0.5m
; weight: about 30KG
7. Motor Power: 250W
8. Voltage: 220V 110V, or customers can specify
|

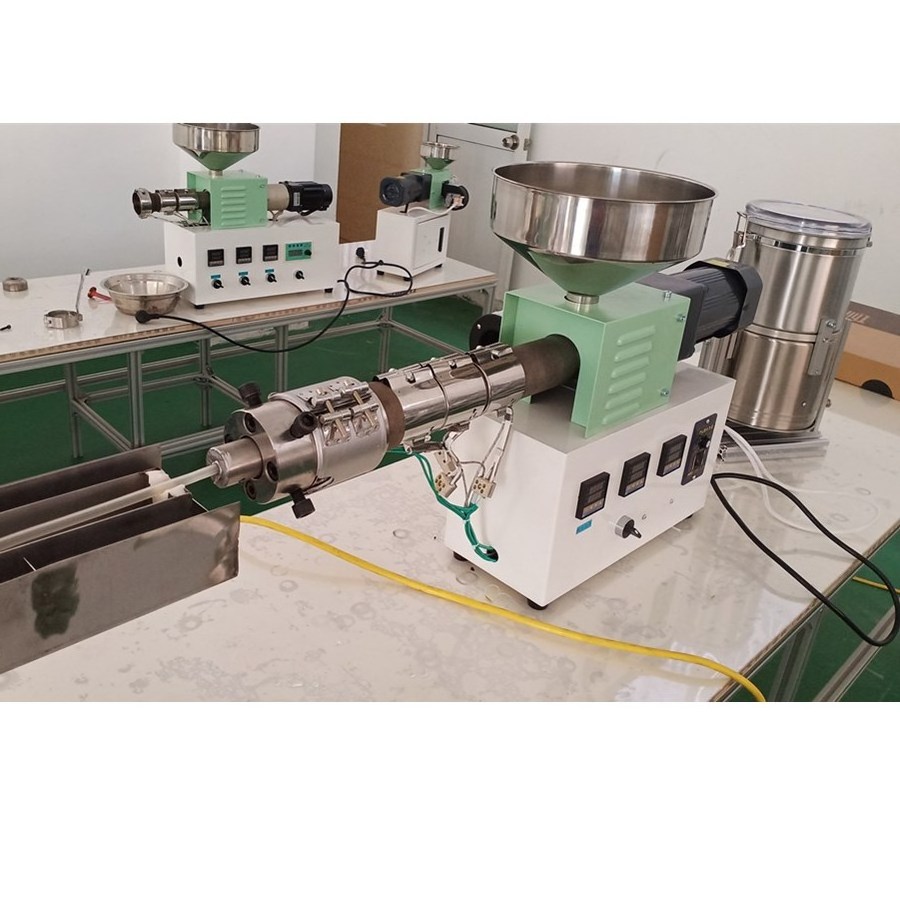

Main extruder equipment configuration and performance parameters: For ABS/PLA/PCL/PETG/PC/PEEK/PE/PP/TPU/TPE... |
|
|
Control System |
Not PLC |
|
Voltage |
220/60 Hz,1phases |
|
Raw Material |
PE/PP/PVC/ PLA/PC/TPU/ABS/NYNONG... |
|
Output |
0 -3 kg/h |
|
Main Motor Power |
250W |
|
Heating Power: |
1000W |
|
Screw |
Single screw Extruder |
|
Diameter |
35 mm. |
|
Screw L/D |
12:1 |
|
Raw material |
38CrMoAlA |
|
surface treatment |
Nitrogenization and polished |
|
Inner surface treatment |
Nitrogenization and polished |
|
Max heating temperature |
300 ℃ |
|
Barrel Material |
38CrMoAlA |
|
Inner surface treatment |
Nitrogenization and polished |
|
The nitride layer thickness |
0.5~0.7 mm. |
|
The surface hardness |
HV850~940 |
|
Controlling system |
|
|
Extruder total Power |
1310W |
|
Control Type |
Single phase electronic speed governor control |
|
The control system |
|
|
Heating control zone |
3 |
Side-by-side catheter extrusion type:
The double-row catheter is mainly composed of TPU material,and the product is mainly applied to the incision protector to turn the bottom tube. The double row roundness tolerance can be controlled ± 0,1 mm ~ 0,2 mm. Multi-row extrusion can be customized as required.
Processing range: outer diameter 3,0mm~20mm
wall thickness 0,5mm~3,0mm
Dimensional tolerance: 0,05 mm ~ 0,10 mm
Optional color: any color
Extended performance: overall development, development line
