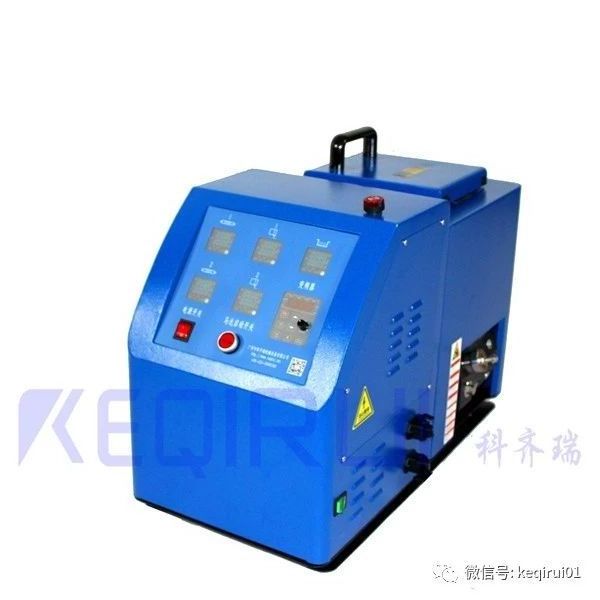

002min pur hot melt applicator adhesive coating glue gun

Product name

Outsole model

PUR-002min

Maximum viscosity

50000cps

Maximum operating temperature

MAX180° C

Number of standard rubber outlets

1

Power supply

AC 220C/50HZ

Dimensions (mm)

600*260*420

Pur-002min melter features:

1.1. The PUR glue machine is composed of three parts: the host, the insulation hose, the manual / automatic glue gun, the temperature can be adjusted at any time, with the upper and lower limit alarm function, the glue level detection function alarm and the frequency conversion fault alarm hose hose gun detection alarm function.
2.2. Gradually try to heat the melted glue: pur002min glue barrel is divided into two layers for heating, how much is used to reduce the amount of glue carbonization.
3.3. Gradually try to heat the melting glue: pur-026 glue bucket is divided into two layers of heating plates, when the upper layer temperature reaches the set melting point, the glue melts and flows to the lower layer of the glue bucket. At this time, the bottom is heated to turn on the heating function to heat the glue. In this way, the pur glue will not be heated for a long time to cause aging and carbonization.
4.4. All the rubber tanks have Teflon protective layer: the equipment is easier to clean, the pur rubber is not easy to block and carbonize, and provides a service life.
5.5. Split glue tank: The glue tank part can be disassembled and cleaned separately for easy cleaning.
6.6. High-precision gear metering pump, stainless steel precision recirculation valve (mechanical test or pneumatic test) are optional, pur does not produce bubbles, stepless speed regulation / frequency converter speed regulation / servo speed regulation, the use of gear motor / servo motor, so that The glue is even and stable.
