Quick Details
-
Warranty:
-
12 years workmanship warranty
-
Brand Name:
-
Power World
-
Model Number:
-
PW30-36
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
537X447X23mm
-
Mono:
-
Poly
-
Certificate:
-
CE/CQC/BIS/MSC/IEC/ETL/FIDE/RETIE/INMETRO/JET/KS
Quick Details
-
Cell size:
-
12.5mmx12.5mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, hbc, TOPCON, BIPV, Flexible
-
Panel Efficiency:
-
≥15.5
-
Warranty:
-
12 years workmanship warranty
-
Brand Name:
-
Power World
-
Model Number:
-
PW30-36
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
537X447X23mm
-
Mono:
-
Poly
-
Certificate:
-
CE/CQC/BIS/MSC/IEC/ETL/FIDE/RETIE/INMETRO/JET/KS

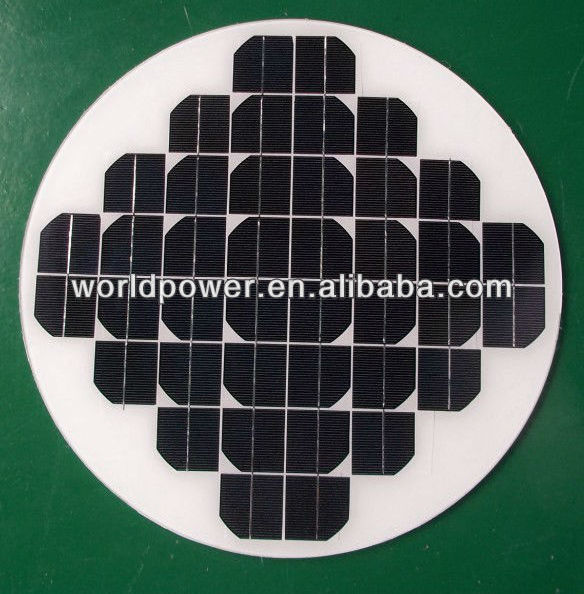

S m all Size Round Solar Panel For Battery/Epoxy Sealed Solar Panel
|
NO. |
TYPE | PW30M-36 | |||
| 1 | Peak Power(Pm) | 30W | |||
| 2 | Power Tolerance | ±3% | |||
| 3 | Open circuit Voltatge(VOC) | 21.5 | |||
| 4 | Short Circuit Current(ISC) | 0.97 | |||
| 5 | Maximum Power Voltage(Vmp) | 17.5 | |||
| 6 | Maximum Power Current(Imp) | 0.86 | |||
| 7 | Temperature Coefficiencies Of Isc(%) | 0.033%/°C | |||
| 8 | Temperature Coefficiencies Of Voc(%) | -0.36%/°C | |||
| 9 | Temperature Coefficiencies Of Pm (%) | -0.44%/°C | |||
| 10 | Cells Efficiency(%) | ≥15.5 | |||
| 11 | Size of Module | 537×447×23mm | |||
| 12 | Cell Type | Monocrystalline | |||
| 13 | Quantity and Dimession of Cell | 36pcs | |||
| 14 | Glass type and Thickness | Low iron tempered 3.2mm | |||
| 15 | Weight | about 3.1kg | |||
