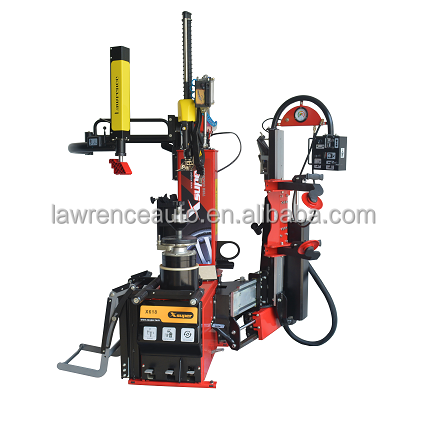

Dual-disc Bead Breaker
The unique dual-disc bead breaker facilitates bead breaking, making it faster
and more ergonomic and reducing the risk of damaging tire and rim.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
X-super
-
Model Number:
-
X618
-
Warranty:
-
12 Months
-
Color:
-
Red
-
Work pressure:
-
8-10 Bar (116-145 Psi)
-
Product name:
-
tire changer
-
Certification:
-
CE ISO
-
Keywords:
-
tire mounting machine
Quick Details
-
Motor Power:
-
1.1kw
-
Operating Pressure:
-
8-10 Bar(116-145psi)
-
Power Supply:
-
110V/220V/380V/400V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
X-super
-
Model Number:
-
X618
-
Warranty:
-
12 Months
-
Color:
-
Red
-
Work pressure:
-
8-10 Bar (116-145 Psi)
-
Product name:
-
tire changer
-
Certification:
-
CE ISO
-
Keywords:
-
tire mounting machine
Center Air Lock Automatically
·
Italian design, equipped with high standard
and high strength accessories.
·
Powerful pneumatic clamp and protect the
tire.
·
Center clamp design avoids clamping
damage.
·
Fast, safe and precise.
Italian Designed Leverless Tool(Patent)
·
Demounting without levers.
·
No risk for rim and protects operator.
One-click Step of Bead Press Disc
·
Complete the separation of tire and rim
in the most efficient way，which is proper
powerful and precise.
·
To achieve optimal matching of tires
and rims.
·
Fast and ergonomic，
reducing operator effort in case of large and heavy wheels.
·
Exempting the laborious process of manually lifting tires.
Pneumatic Bead Press Arm
The auxiliary arm can better replace the power，making the work more
efficient and safer!
Three Positions Pressing Arm
·
Three Positions Pressing Arm.
·
Space saving and easy to
operate.
·
Which can adapt to different sizes
of tires freely.
Pneumatic Swing-Arm System
·
Saves space over tilt-column designs.
·
Suitable for installation by the wall.
·
Mounting head reset quickly and saving
both time and
labor for mounting or
dismounting the same size tires.
Robot Control
·
Up and down by pneumatic control.
·
Easy operation and save both time
and labor.
·
Variable speed motor or two speed
inverter motor for your choice.
·
Easy to control and operate，saving
time.
Italian Original Portable Blast Inflation
·
Gas-filled for the tyre quickly
and directly.
With double safety switch and
·
made in Italy，more reliable and
forceful.
|
SPECIFICATION
|
|
|
|
RIM CLAMPING
|
12''-32''
|
|
|
MAX. WHEEL DIAMETER
|
1200MM(47'')
|
|
|
MAX. WHEEL WIDTH
|
406MM(16'')
|
|
|
MAX.BEAD-BREAKER FORCE
|
12000N
|
|
|
OPERATING PRESSURE
|
8-10 BAR(116-145 PSI)
|
|
|
POWER SUPPLY
|
110V/ 240V(5-60Hz/1ph)
|
|
|
MOTOR POWER
|
1.1KW
|
|
|
MAX. INFLATING PRESSURE
|
3.5 BAR( 50 PSI)
|
|
|
NET WEIGHT
|
500KG
|
|
|
GROSS WEIGTH
|
550KG
|
|
|
PACKING DIMENSION
|
1340X1410X2040 MM
|
|
Related Products
FAQ
1.Q:Can we use 220V/50HZ as power supply ?
A: Yes, additional cost needed .
2.Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor except in Brazil ,India, South Africa, Pakistan, Malaysia. Welcome to join Lawrence!
3.Q:Can I get 2 years warranty or longer warranty ?
3.Q:Can I get 2 years warranty or longer warranty ?
A:We offer 1 year warranty for free.2 year warranty with extra money.
4.Q:Can I pay in RMB currency?
4.Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax, some suggest you pay in US dollars.
5.Q:What is delivery time ?
5.Q:What is delivery time ?
A:2 working days upon reception of down payment .
6.Q:How long is the lifetime of the machine ?
6.Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation
