Quick Details
-
Brand Name:
-
HBYB
-
Model Number:
-
LWGY
-
Output:
-
digital display 4-20 ma output turbine flow meter for furnace oil
-
Power supply:
-
24VDC /3.6V Lithium Battery
-
Accuracy:
-
1.0%
-
Pressure:
-
1.6-6.4mpa or higher
-
Medium:
-
Liquid;fuel Oil;diesel;pure water;petrol oil
-
Material:
-
Carbon Steel,Stainless Steel
-
Connection:
-
Flange: DN4-DN200
-
Product Name:
-

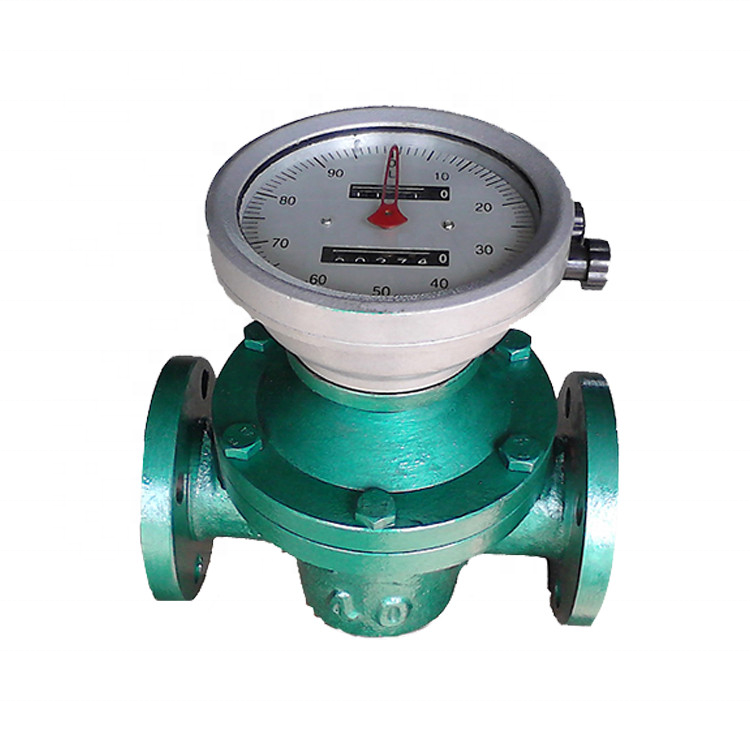

oval gear flow sensor part oval gear flowmeter
-
Color:
-
Green,blue
-
Temperature:
-
-20℃~+200℃
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HBYB
-
Model Number:
-
LWGY
-
Output:
-
digital display 4-20 ma output turbine flow meter for furnace oil
-
Power supply:
-
24VDC /3.6V Lithium Battery
-
Accuracy:
-
1.0%
-
Pressure:
-
1.6-6.4mpa or higher
-
Medium:
-
Liquid;fuel Oil;diesel;pure water;petrol oil
-
Material:
-
Carbon Steel,Stainless Steel
-
Connection:
-
Flange: DN4-DN200
-
Product Name:
-
oval gear flow sensor part oval gear flowmeter
-
Color:
-
Green,blue
-
Temperature:
-
-20℃~+200℃
Product Description
Specification
Diameter and flow fange of Oval meters for calss 0.2
|
DN(mm)
|
Viscosity mpa.s
|
|
|
|
|||
|
|
0.3-0.8
|
0.8-2
|
2-8
|
8-200
|
|||
|
10
|
0.2-0.4
|
0.15-0.5
|
0.1-0.5
|
0.08-0.5
|
|||
|
15
|
0.75-1.5
|
0.5-1.5
|
0.3-1.5
|
0.25-1
|
|||
|
20
|
1.5-3
|
1-3
|
0.6-3
|
0.5-3
|
|||
|
25
|
3-6
|
2-6
|
1.2-6
|
1-6
|
|||
|
40
|
7.5-15
|
5-15
|
3-15
|
2.5-15
|
|||
|
50
|
12-24
|
8-24
|
4.8-24
|
4-24
|
|||
|
65
|
20-40
|
15-40
|
8-40
|
6.5-40
|
|||
|
80
|
30-60
|
20-60
|
12-60
|
10-60
|
|||
|
100
|
50-100
|
34-100
|
20-100
|
16-100
|
|||
|
150
|
95-190
|
64-190
|
38-190
|
32-190
|
|||
|
200
|
170-340
|
120-340
|
68-340
|
56-340
|
|||
NOTES：
1.The flow meter should be selected in accordance with the folw
range,but not in accordance with the pipe diameter.
2.If the temperature of the metered liquid is between 100-200℃.the max,flow
fate must subtract by 10%
3.While metered liquid is not petroleum roduct,if it visco-sity is equivalent
to that listed in thetable,the flow range is also equivalent to that listed above.
4.For chemical,high temperature,and high viscosity liquid,consult the
fatory.
5.While the metered media is of strong corrisive,the max,flow must reduce by
1/3.
Packing & Delivery
Transparent polybag, paper box or foam box, carton or pallet
