Quick Details
-
Model Number:
-
YS--RL-1/2
-
Place of Origin:
-
China guangdong
-
Brand Name:
-
Meteorite Intelligent
-
Theory:
-
mmwave radar
-
Output:
-
220V
-
Communication:
-
WiFi/Zigbee
-
Modulation mode:
-
FMCW,CW
-
Installation height:
-
2.7m~3.5m
-
Sensitivity:
-
0~9
-
Detection range:
-
0~9m
-
Working voltage:
-
AC110~265 V
-
Operating power:
-
<2 W
-
Working temperature:
-
-10℃~+50℃
-
Protection level:
-
IP20
Quick Details
-
Use:
-
ON/OFF Switch for Light
-
Mounting Type:
-
Ceiling mount
-
Description:
-
mmwave radar switch, mmwave radar switch
-
Model Number:
-
YS--RL-1/2
-
Place of Origin:
-
China guangdong
-
Brand Name:
-
Meteorite Intelligent
-
Theory:
-
mmwave radar
-
Output:
-
220V
-
Communication:
-
WiFi/Zigbee
-
Modulation mode:
-
FMCW,CW
-
Installation height:
-
2.7m~3.5m
-
Sensitivity:
-
0~9
-
Detection range:
-
0~9m
-
Working voltage:
-
AC110~265 V
-
Operating power:
-
<2 W
-
Working temperature:
-
-10℃~+50℃
-
Protection level:
-
IP20
1
. I
ntroduction

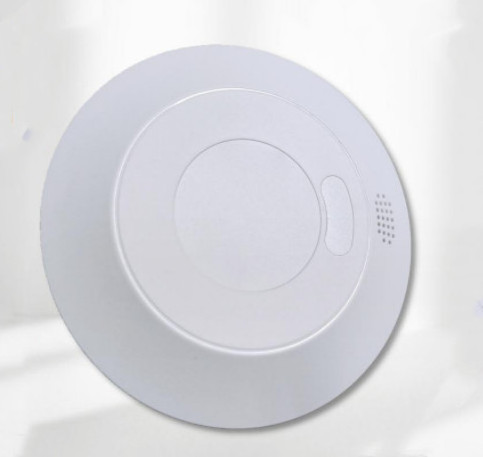

This millimeter wave human presence sensor supports frequencies of 5.8GHz and 24GHz, and parameters can be set using the Tuya app.
At the same time, it is equipped with relays internally that can quickly control the lights. When a person is detected, the light turn on; After the person leaves, the light turn off.
It is widely used in many fields such as smart homes, smart buildings, and offices.
At the same time, it is equipped with relays internally that can quickly control the lights. When a person is detected, the light turn on; After the person leaves, the light turn off.
It is widely used in many fields such as smart homes, smart buildings, and offices.
| Name |
5.8GHz
|
24GHz
|
|
Product size
|
The maximum diameter is 75 mm and the height is 61mm
|
|
|
Colour
|
Ceramic white
|
|
|
Weight
|
≤
110g
|
|
|
Beam Angle
|
120×120 ° ,the angle of the signal
energy at 3 dB (0.5 times)
|
115 × 115 ° ,the angle of the signal
energy at 3 dB (0.5 times)
|
|
Top assembly:
detection radius
|
Respiratory detection radius:2.5
~
3 m
Micromotion detection radius: 3~4 m
Movement detection radius: 4~5.5m
|
Respiratory detection radius:2
~
3 m
Micromotion detection radius: 3~4 m
Movement detection radius: 4~4.5m
|
|
Top assembly:
Installation height
|
Typical height:2.7m ~ 3.5m | |
|
Sensitivity
|
0~9; Minimum sensitivity 0, highest sensitivity 9; default 7 | |
| Detection range | 0~9m; the default probe distance is 7m | 0~12m; the default probe distance is 7m |
|
Exit delay
(someone to
nobody)
|
5~1500s; default 30s; actual use recommended not less than 20s, too small easy to
miss
|
|
|
Entry
filter
time (no one
arrives)
|
0~100s; default 0. 1s; the longer the setting time, the slower the sensorresponse, and the less likely to mistrigger; the time setting short response is
faster, but the error probability increases. Actual use hope that the sensor
reaction is fast recommended setting should not be greater than 0.25s, greater
than 0.25s for slow reaction.
APP setting step: 0.05s
|
|
|
Admission
sensitivity
|
0-3; default 2; the smaller the value, the less likely to trigger, the more likely to trigger | |
|
light sensation
|
0 ~ 420 Lux | |
|
Detection
shielding
distance
(someone to
unmanned delay
parameter
setting)
|
0-9; Default 0; larger value, larger distance inddent | 0-12m; default 0.6m; the larger the value, the larger the distance inddent. |
|
Service
frequency
|
5.8 GHz ± 75 MHz, in the ISM band |
24GHz
±
125 MHz, in the ISM band
|
|
Working voltage
|
AC110 ~ 265 V | AC110 ~ 265 V |
|
Operating power
|
< 2 W | < 2 W |
|
Working
temperature
|
-10℃~+50℃ | |
|
Working
humidity
|
5 ~ 90% RH | |
|
Output method
|
electric relay representative value:220V,3A | electric relay representative value:220V,3A |
2 . Detection Range: Top Mount
5.8G radar module
- Detection coverage range (related to installation height and sensitivity parameters):
- Detection radius during top installation: 2-3 meters for human breathing
- Detection radius during top installation: 3-4 m for human body micro movement
- Detection radius during top installation: human body movement of 4-4.5 meters
24G radar module
- Detection coverage range (related to installation height and sensitivity parameters):
- Detection radius during top installation: 2.5 to 3 meters for human breathing
- Detection radius during top installation: 3-4 m for human body micro movement
- Detection radius during top installation: human motion 4-5.5 m
3
.
Size(Two appearances)
4.
Connection
Clamp the power cord on the device (light clamp, otherwise it will be broken) and introduce it
into the ceiling opening.
5.
Installation guidance
6. Tuya APP
